004U8652
Part Number: 004U8652
Product Information
Extended Description

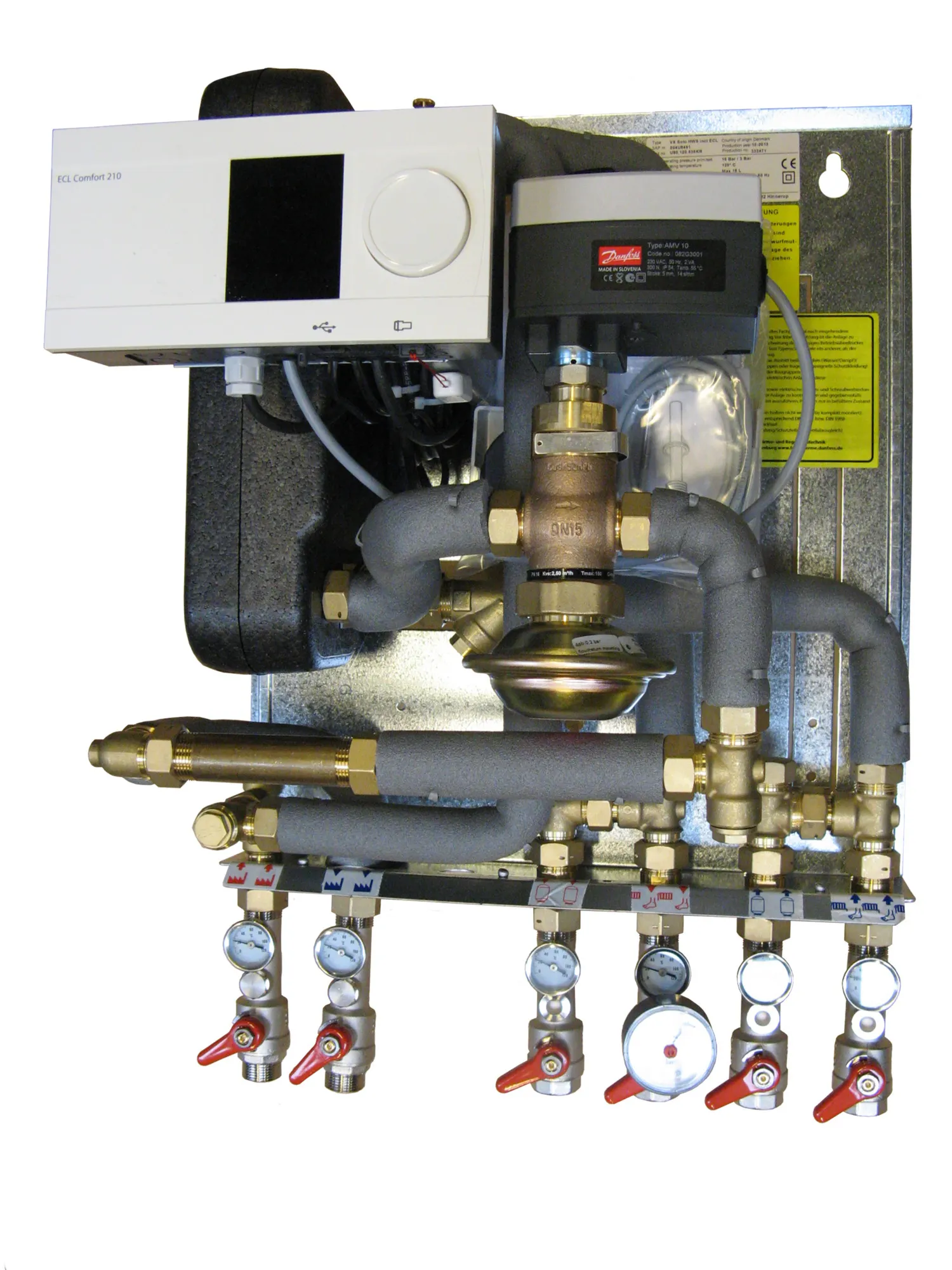

004U8652 Danfoss: Product Type: VX Solo HWS OP, ECL310 without key, Type 2, 16 bar, 110 °C, ECL 310 / AVQM / AMV
Gross weight
40 Kilogram
Net weight
38 Kilogram
EAN
5702428524230
Additional information
Cover,Safety valve
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Included
Depth with cover [mm]
380 mm
Depth without cover [mm]
250 mm
Description
Danfoss Station VX Solo HWS OP ECL310 Type 2 30KW
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW Control type
Electronic
DHW pump brand
Grundfos
DHW pump type
UPM3
DHW tank circuit - control
No control
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
30 kW
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310 & AVQM 15/AMV10
Heating HEX type
XB06H-1 40
Height with cover [mm]
760 mm
Height without cover [mm]
760 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Insulation material
Without
Number of households [Max]
1
Number of households [Min]
1
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remarks
Indir. HE, without pump
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo HWS OP, ECL310 without key
Width with cover [mm]
500 mm
Width without cover [mm]
440 mm
003H6737
AVQM, PN 16, DN 15, Flow rate [m³/h]: 0.07 - 2.40, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3001
Electrical actuators, AMV 10, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087N0011
ESMC, Sensors
144B2384
Safety valve 3 bar 1/2" x 3/4" SYR
