004X1622

Part Number: 004X1622
004X1622
Manufacturer
Danfoss
Part number
004X1622
Category

Product Information

Extended Description

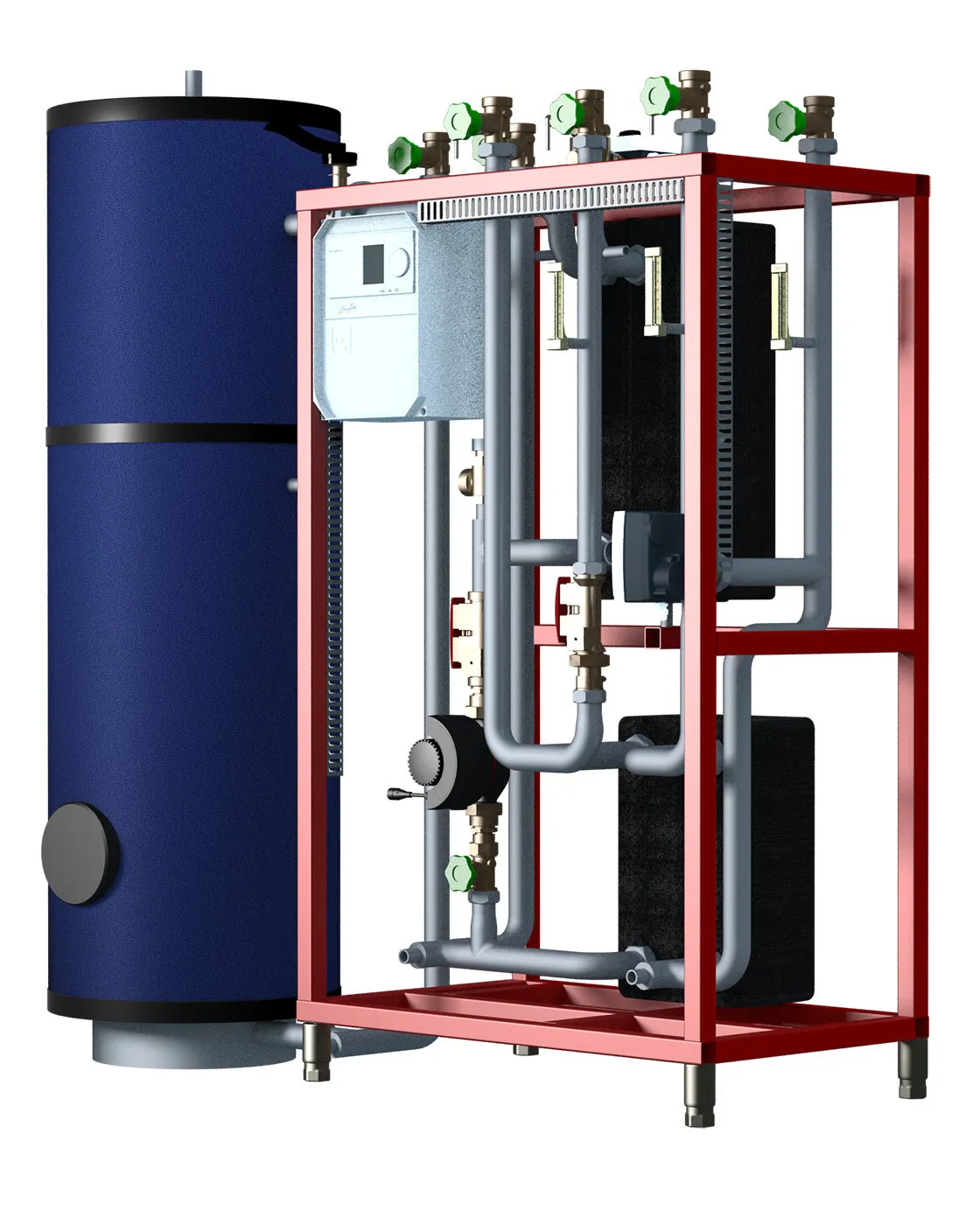

004X1622 Danfoss: TC-DL 1000 ECL XB
Gross weight
230 Kilogram
Net weight
230 Kilogram
EAN
5715162745076
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
DVGW,CE
Capacity [kW]
420 kW
Category name
Antilegionella systems
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
Rp2"
Circulation connection type
internal thread
Circulation pipe size
DN50
Connection direction primary and secondary
Vertical
Contain batteries
No
Current [A] [Max]
4 A
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.29 bar
Delta P secondary [bar] [Max]
0.65 bar
Depth without cover [mm]
1000 mm
Description
TC-DL 1000 ECL XB
Design
standing
DH connection size
48,3/60,3mm
DH connection type
welded
DH pipe size
DN40/DN50
DHW circulation
Yes
DHW connection size
Rp2 1/2"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
DN65
DHW pump brand
Grundfos
DHW pump type
MAGNA3
Differential pressure primary [bar] [Max]
12 bar
EU RoHS compliance
Out of scope
Flow circulation [m3/h] [Max]
9 m³/h
Flow primary [m3/h] [Max]
12.96 m³/h
Flow secondary [m3/h] [Max]
15 m³/h
HE connection size
48,3/60,3 mm
HE connection type
welded
HE pipe size
DN40/DN50
Height without cover [mm]
2525 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed copper
Hot water tank volume [l]
1000 L
Insulation material
EPS with laminated fleece
Manufacturer's name
Danfoss
P circulation [bar] [Max]
-0.27 bar
Package 2 depth [mm]
1000 mm
Package 2 height [mm]
2400 mm
Package 2 width [mm]
1300 mm
Package depth [mm]
1000 mm
Package height [mm]
1100 mm
Package width [mm]
2425 mm
PED category
§ 4.3
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
25 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [˚C]
90 °C
Supply voltage [V] AC
230 V
Tank material
1.4571
Type
TC-DL
UK RoHS compliance
Out of scope
Width without cover [mm]
2570 mm
