004X1689

Part Number: 004X1689
004X1689
Manufacturer
Danfoss
Part number
004X1689
Category

Product Information

Extended Description

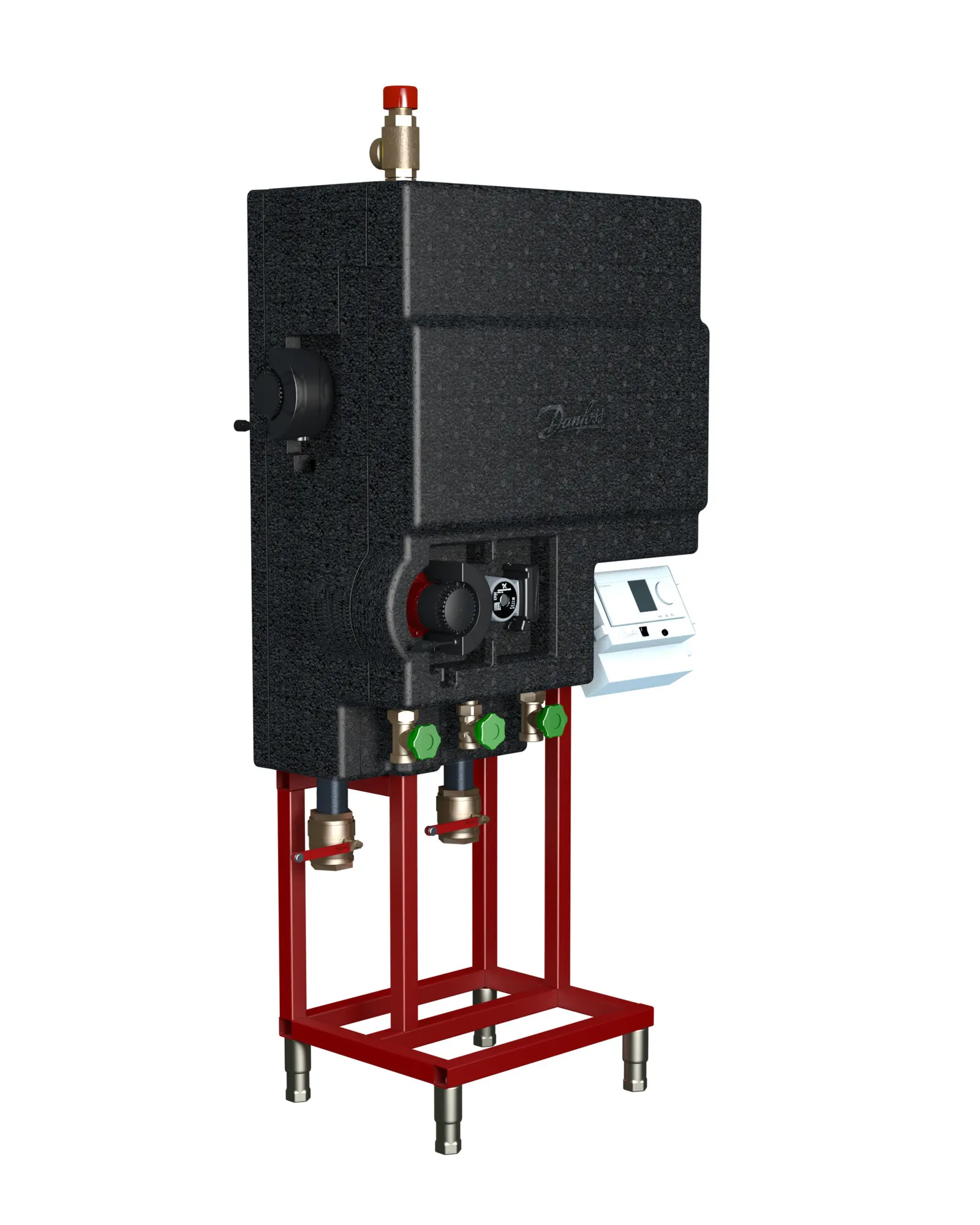

004X1689 Danfoss: TD-CM 140KW PUMP-ECL INS-COVER
Gross weight
150 Kilogram
Net weight
130 Kilogram
EAN
5715162744802
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
DVGW,CE
Capacity [kW]
140 kW
Category name
Tank solution substations
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
G1 1/4"
Circulation connection type
external thread
Circulation pipe size
DN25
Connection direction primary and secondary
Vertical
Contain batteries
No
Cover material
PU Hard Foam
Current [A] [Max]
4 A
DCW static pressure [bar] [Min]
1 bar
Depth without cover [mm]
488 mm
Description
TD-CM 140KW PUMP-ECL INS-COVER
Design
standing
DHW circulation
Yes
DHW circulation pump brand
Grundfos
DHW circulation pump type
UPM GEO
DHW connection size
G1 1/4"
DHW connection type
external thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
DN25
DHW pump brand
Grundfos
DHW pump type
UPM GEO
EU RoHS compliance
Out of scope
Flow circulation [m3/h] [Max]
2.4 m³/h
Flow primary [m3/h] [Max]
2.4 m³/h
Flow secondary [m3/h] [Max]
2.4 m³/h
HE connection size
Rp1 1/4"
HE connection type
internal thread
HE pipe size
DN32
Heating pump brand
Grundfos
Heating pump type
UPM GEO
Height without cover [mm]
1940 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed copper
Insulation material
PU Hard Foam
Manufacturer's name
Danfoss
P circulation [bar] [Max]
0.43 bar
Package depth [mm]
800 mm
Package height [mm]
2000 mm
Package width [mm]
1200 mm
PED category
§ 4.3
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
10 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Substation version
TD-CM, 140kW, pump, ECL, insulation cover
Supply temperature construction [˚C]
90 °C
Supply voltage [V] AC
230 V
Type
TD-CM
UK RoHS compliance
Out of scope
Width without cover [mm]
900 mm
