004X1783

Part Number: 004X1783
004X1783
Manufacturer
Danfoss
Part number
004X1783
Category

Product Information

Extended Description

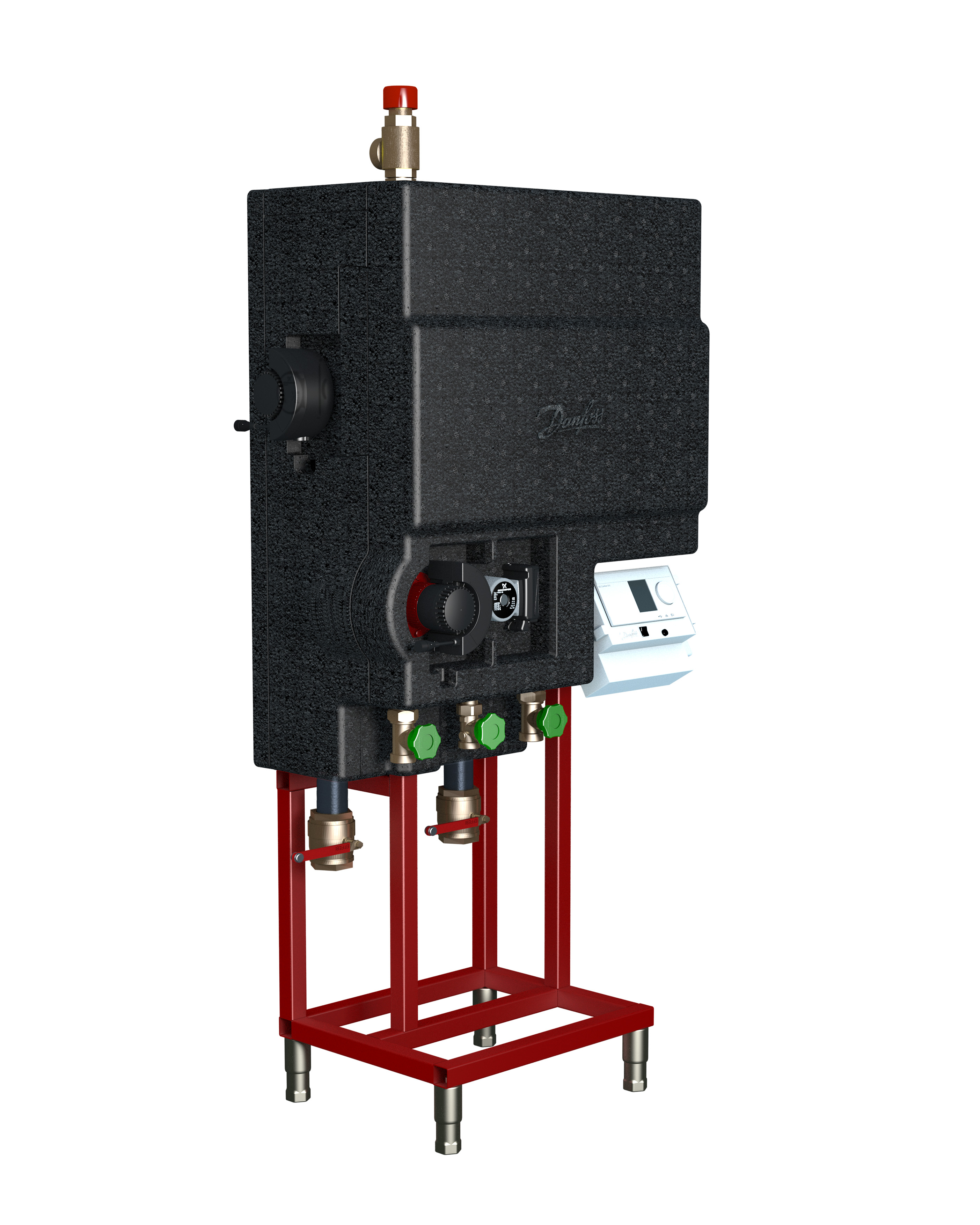

004X1783 Danfoss: TD-CM 350KW MIX-ECL INS-COVER WI
Gross weight
150 Kilogram
Net weight
130 Kilogram
EAN
5715162744246
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
DVGW,CE
Capacity [kW]
350 kW
Category name
Tank solution substations
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
G1 1/4"
Circulation connection type
external thread
Circulation pipe size
DN25
Connection direction primary and secondary
Vertical
Contain batteries
No
Cover material
PU Hard Foam
Current [A] [Max]
4 A
DCW static pressure [bar] [Min]
1 bar
Depth without cover [mm]
488 mm
Description
TD-CM 350KW MIX-ECL INS-COVER WI
Design
standing
DHW circulation
Yes
DHW circulation pump brand
Grundfos
DHW circulation pump type
UPM GEO
DHW connection size
G1 1/2"
DHW connection type
external thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
DN32
DHW pump brand
Wilo
DHW pump type
STRATOS PARA Z
EU RoHS compliance
Out of scope
Flow circulation [m3/h] [Max]
3.4 m³/h
Flow primary [m3/h] [Max]
6.3 m³/h
Flow secondary [m3/h] [Max]
6 m³/h
HE connection size
Rp1 1/2"
HE connection type
internal thread
HE pipe size
DN40
Heating pump brand
Wilo
Heating pump type
STRATOS PARA
Height without cover [mm]
1940 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed copper
Insulation material
PU Hard Foam
Manufacturer's name
Danfoss
P circulation [bar] [Max]
0.3 bar
Package depth [mm]
800 mm
Package height [mm]
2000 mm
Package width [mm]
1200 mm
PED category
§ 4.3
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
10 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Substation version
TD-CM, 350kW, mixing, ECL, insulation cover, Wilo
Supply temperature construction [˚C]
90 °C
Supply voltage [V] AC
230 V
Type
TD-CM
UK RoHS compliance
Out of scope
Width without cover [mm]
900 mm
