006-0065
Part Number: 006-0065
Product Information
Extended Description
006-0065 Danfoss: Connection material: Steel, Weave fineness [µm]: 150, Max. Working Pressure [bar]: 28.0
Gross weight
2.8 Kilogram
Net weight
2.799 Kilogram
Volume
2.24 Liter
EAN
5702422035152
Connection material
Steel
Connection size [in]
1/2 in
Connection size [mm]
15 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Cv value [gal/min]
5.9 gal/min
Fluid Group
1
Kv value [mÂł/h]
5.1 mÂł/h
Max. test pressure [bar]
42 bar
Max. test pressure [psig]
609 psig
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Multi pack
Parts included
bolts,Gaskets,screws,Flanges
PED category
Art. 3, par. 3

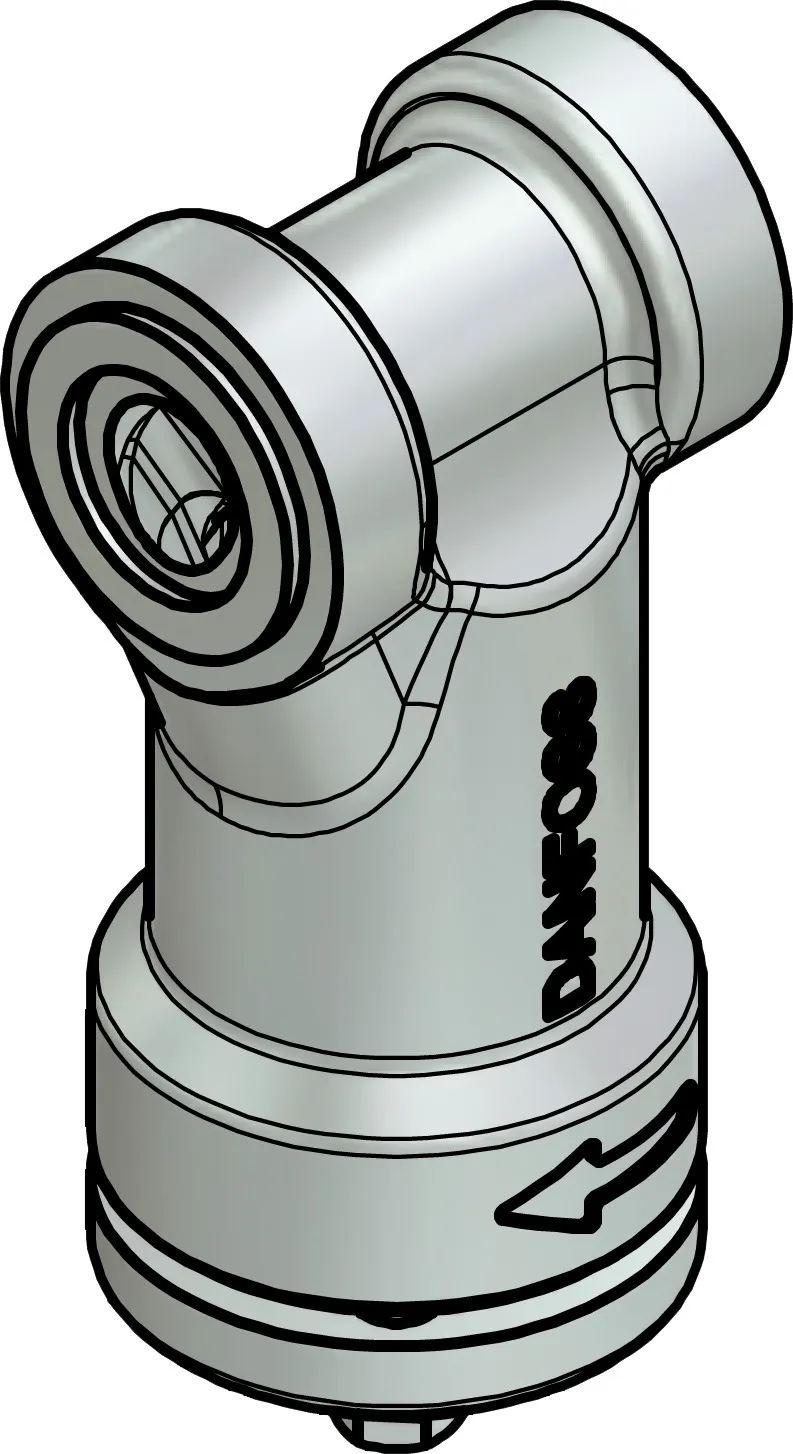

Product description
Strainer
Product group
Strainers
Product Name Description
Strainer, non welded
Quantity per packing format
10 pc
REACH Candidate List substances
No
Refrigerants
R22,R113,R114,R1233zd(E),R1234yf,R1234ze(E),R125,R1336mzz(Z),R134a,R152a,R227ea,R23,R236fa,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R502,R503,R507A,R513A,R717
Staybolts size
M12 x 160
Strainer area [cm2]
60 cm²
Strainer area [in2]
9.3 in²
Strainer volume [cm3]
145 cmÂł
Strainer volume [in3]
8.85 inÂł
Temperature range [°C] [max]
140 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
284 °F
Temperature range [°F] [min]
-58 °F
Type
FA 20
Used for product comments
Fitting in pipelines
Weave fineness [Mesh]
100 Mesh
Weave fineness [µm]
150 µm
006-0331
Repair kit
006-0334
Spare part, FA 15, Seal kit
