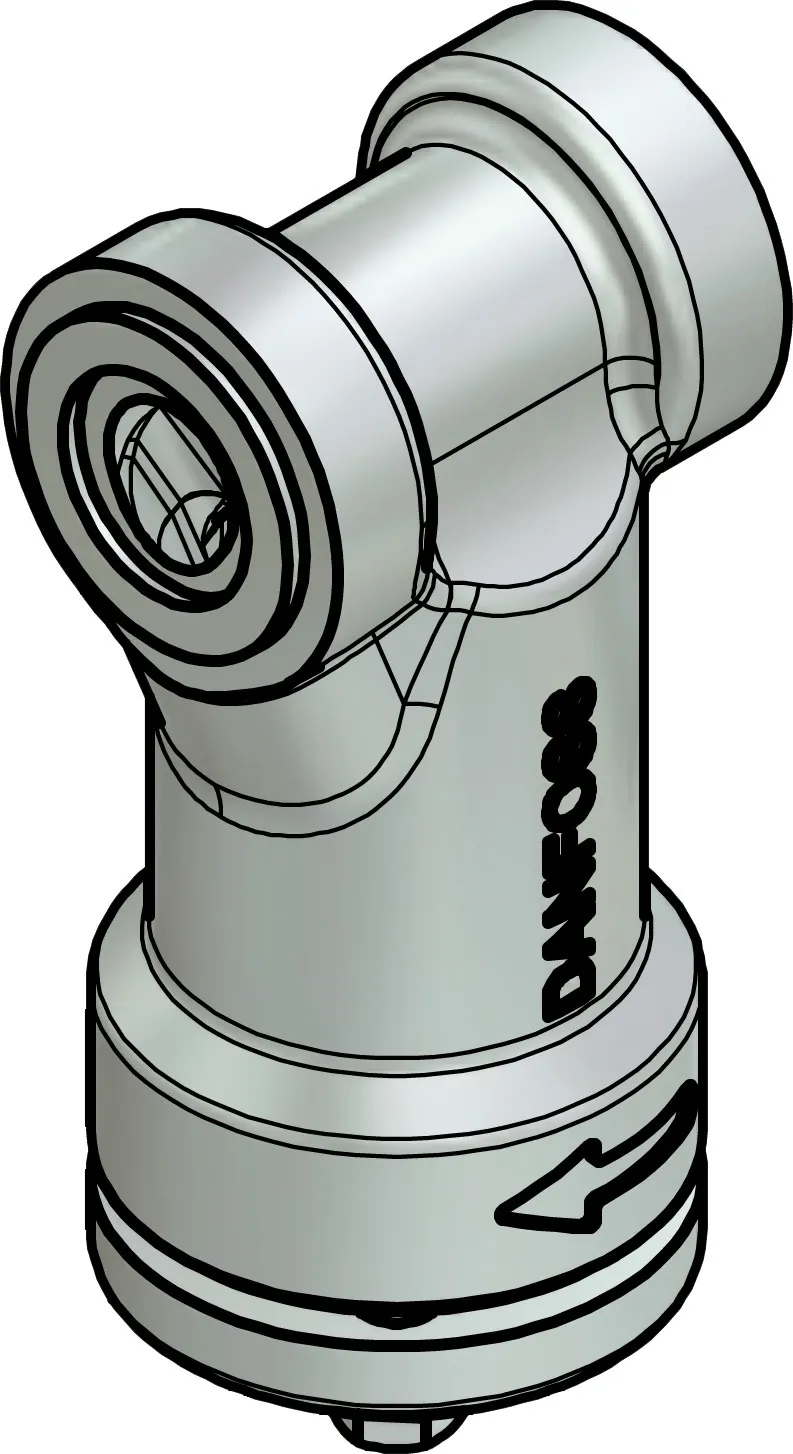

006-1012
Part Number: 006-1012
Product Information
Extended Description
006-1012 Danfoss: Connection material: Steel, Weave fineness [µm]: 150, Max. Working Pressure [bar]: 28.0
Gross weight
1.212 Kilogram
Net weight
1.182 Kilogram
Volume
0.854 Liter
EAN
5702428191777
Connection material
Steel
Contain batteries
No
Cv value [gal/min]
3.8 gal/min
Fluid Group
1
Kv value [mÂł/h]
3.3 mÂł/h
Max. test pressure [bar]
42 bar
Max. test pressure [psig]
609 psig
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Multi pack
Parts included
bolts,Gaskets,screws
PED category
Art. 3, par. 3
Product description
Strainer
Product group
Strainers
Product Name Description
Strainer, non welded
Quantity per packing format
12 pc
REACH Candidate List substances
No
Refrigerants
R113,R114,R1233zd(E),R1234yf,R1234ze(E),R125,R1336mzz(Z),R134a,R152a,R22,R227ea,R23,R236fa,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R717,R507A
Staybolts size
M12 x 107
Strainer area [cm2]
40 cm²
Strainer area [in2]
6.2 in²
Strainer volume [cm3]
68 cmÂł
Strainer volume [in3]
4.15 inÂł
Temperature range [°C] [max]
140 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
284 °F
Temperature range [°F] [min]
-58 °F
Type
FA 15
Used for product
EVRA 10,EVRA 15,EVRT,EVRT 10
Used for product comments
Direct fitting on valve
Weave fineness [Mesh]
100 Mesh
Weave fineness [µm]
150 µm
006-0331
Repair kit
006-0334
Spare part, FA 15, Seal kit
