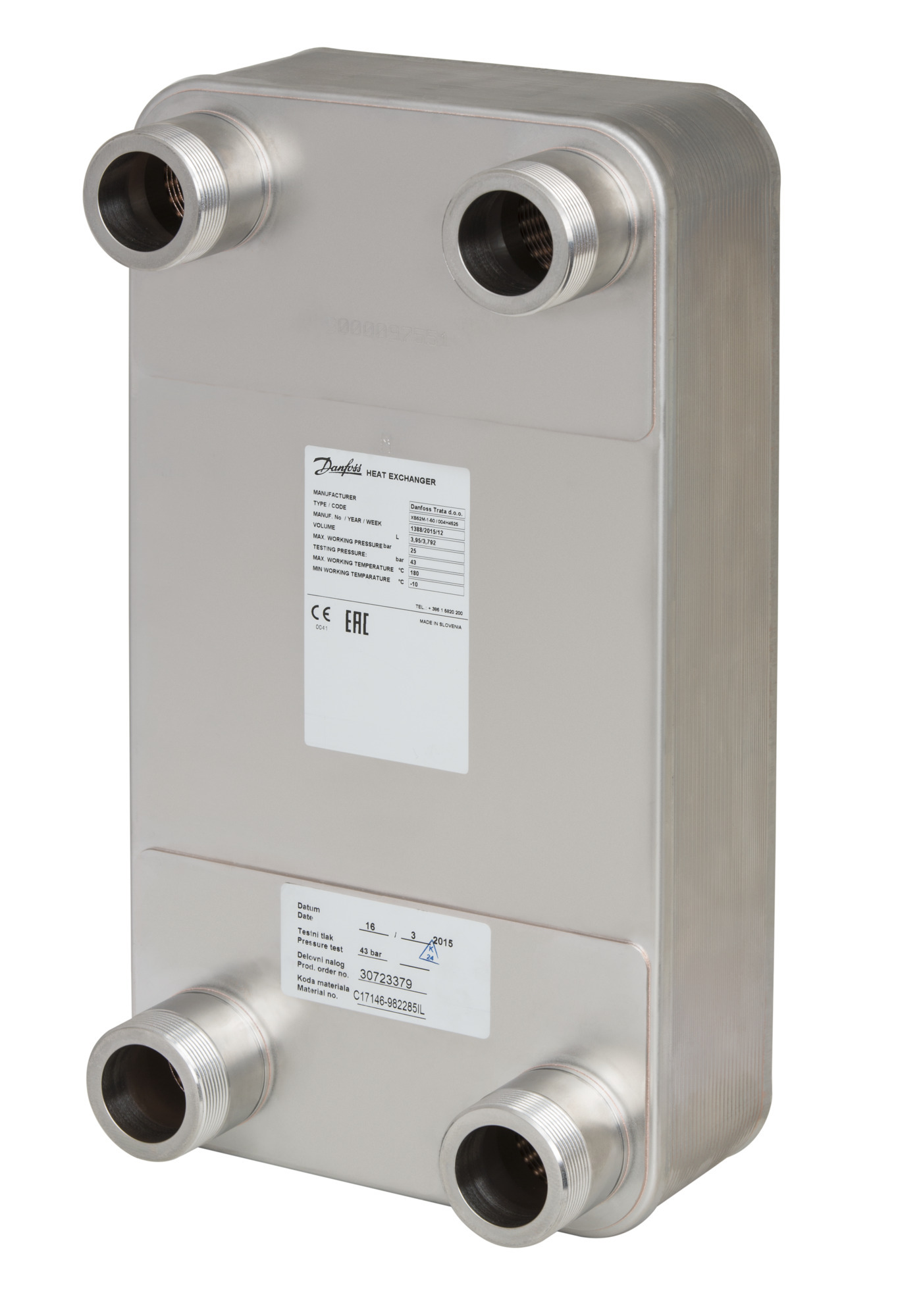

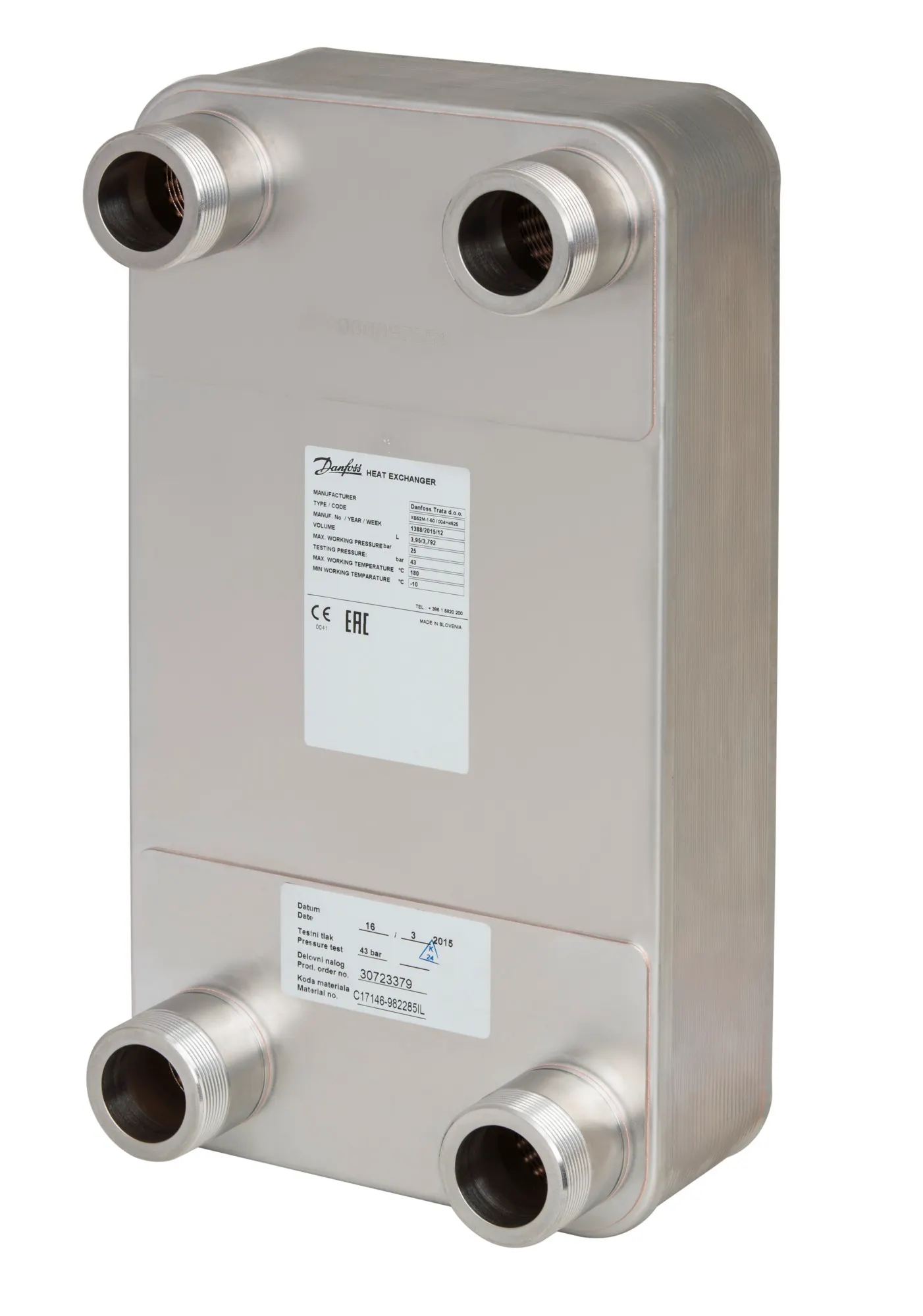

008F6126

Part Number: 008F6126
008F6126
Manufacturer
Danfoss
Part number
008F6126
Category

Product Information

Extended Description

008F6126 Danfoss: 25 bar, Brazing material: Copper
Gross weight
28.63 Kilogram
Net weight
28.22 Kilogram
Volume
0.1 Liter
EAN
5702425174308
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
50 mm
Connection length 2 [mm]
50 mm
Connection length side 1 [mm]
50 mm
Connection length side 2 [mm]
50 mm
Connection size 1
2
Connection size 2
2
Connection standard
DIN ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
Horizontal center porthole[mm]
170 mm
In scope of WEEE
No
Material Description (Short Te
XB52M-2-26/50_2Cu_25_S21_2G2
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
2
Number of plates
76
Packing format
Single pack
PED category
I
Plate material no.
1.4404
Plate pattern
M
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-10 =C2=B0C
Total height without feet [mm]
466 mm
Total width [mm]
256 mm
Type
XB52M-2
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
379 mm
Vertical center porthole 2[mm]
379 mm
Vertical center porthole side 1 [mm]
379 mm
Volume per channel 1 [l]
0.163 L
Volume per channel 2 [l]
0.163 L
