009G7021

Part Number: 009G7021
009G7021
Manufacturer
Danfoss
Part number
009G7021
Category

Product Information

Extended Description

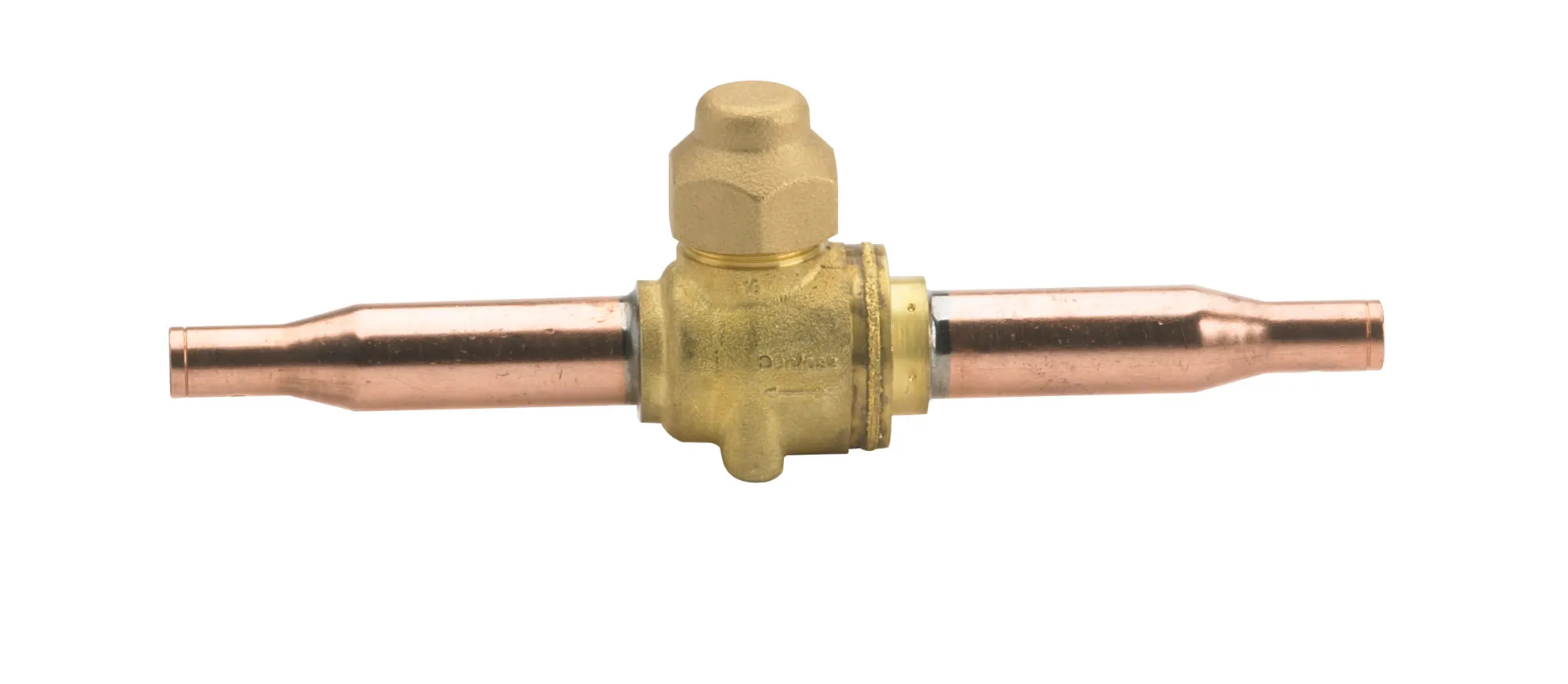

009G7021 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 3/8 in, Outlet size [in]: 3/8 in
Gross weight
0.284 Kilogram
Net weight
0.216 Kilogram
Volume
0.795 Liter
EAN
5702428065511
Access port
No
Approval
C UL US LISTED,CE,EAC,UKCA
Body material
Brass
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
Cv value [gal/min]
8.69 gal/min
Direction
Straightway
Equipment
Cap w. wire seal
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Bi-flow
Flow direction indicator
Embossed 2-way arrow
Fluid Group
1,2
Ignition source assessment
Yes
Inlet connection type
Solder, ODF
Inlet size [in]
3/8 in
Kv value [m=C2=B3/h]
7.52 m=C2=B3/h
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
650 psig
Outlet connection type
Solder, ODF
Outlet size [in]
3/8 in
Packing format
Multi pack
Panel mounting option
M4 =C3=97 0.7 (2 PC)
PED category
Art. 4, par. 3
Product accessories
BM/GBC valve accessories
Product group
Shut-off and regulating valves
Product Name Description
Shut-off ball valve
Quantity per packing format
25 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234ze(E),R134a,R22/R407C,R32,R404A/R507A,R407A,R407F,R410A,R448A,R449A,R450A,R452A,R513A
SCIP dossier no.
4b2fe785-688b-4157-ad7e-68b26c6e3e7b
Serviceable
BM/GBC valve spare parts
Temperature range [=C2=B0C] [max]
100 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
212 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
GBC 10s
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R410A,R448A,R449A,R450A,R452A,R507A,R513A
UL evaluated
Yes
Danfoss solutions for Air Handling Units and Rooftops Shut-off ball valve Type GBC and GBC E Check valve, Shut-off diaphragm valve, shut-off ball valve and differential pressure valve Danfoss MD 033F4001.AH Danfoss MD 033F4006 Danfoss MD 033F4010 Danfoss MD 033F4017.AD TSSA CRN 0C24058.5267890TNY GBC 10s_009G7021 GBC10s ODFxODF 3/8in GBC10s ODFxODF 3/8in
