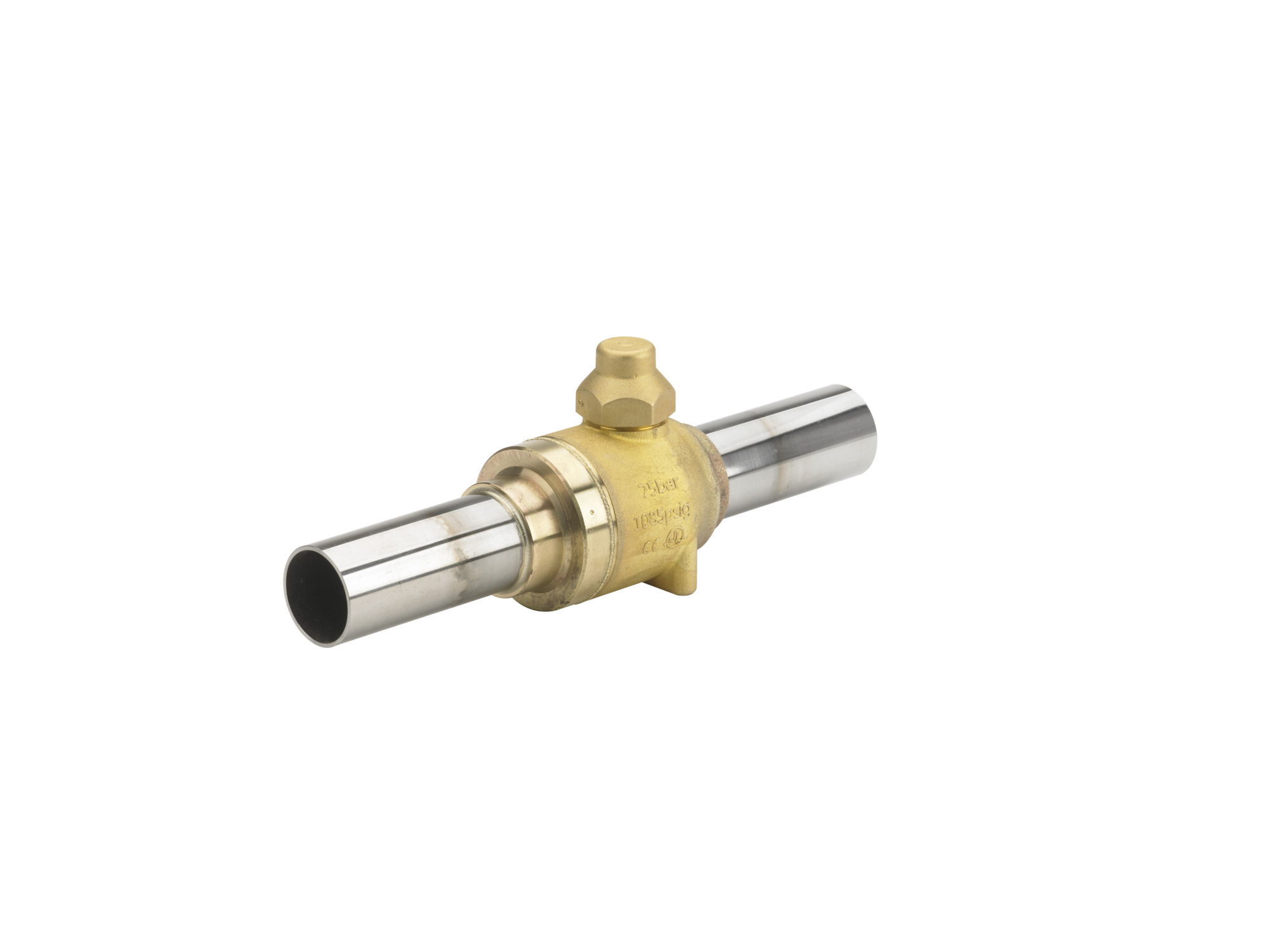

009L7410
Part Number: 009L7410
Product Information
Extended Description
009L7410 Danfoss: Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet size [mm]: 35.00, Outlet size [mm]: 35.00
Gross weight
1.648 Kilogram
Net weight
1.469 Kilogram
Volume
2.578 Liter
EAN
5702428515405
Access port
No
Approval
CE,UKCA
Body material
Brass
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Stainless steel
Contain batteries
No
Cv value [gal/min]
123.63 gal/min
Direction
Straightway
Equipment
Cap w. wire seal
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Bi-flow
Flow direction indicator
Embossed 2-way arrow
Fluid Group
2
Ignition source assessment
Yes
Inlet connection type
Butt weld
Inlet size [mm]
35 mm
Kv value [m=C2=B3/h]
106.95 m=C2=B3/h
Max. Working Pressure [bar]
75 bar
Max. Working Pressure [psig]
1088 psig
Outlet connection type
Butt weld
Outlet size [mm]
35 mm
Packing format
Multi pack
Panel mounting option
M6 =C3=97 1.0 (2 PC)
PED category
Art. 4, par. 3
Product accessories
BM/GBC valve accessories
Product group
Shut-off and regulating valves
Product Name Description
Shut-off ball valve
Quantity per packing format
5 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
4b2fe785-688b-4157-ad7e-68b26c6e3e7b
Serviceable
BM/GBC valve spare parts
Temperature range [=C2=B0C] [max]
100 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
212 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
GBCH 35s
UK RoHS compliance
Out of scope
009G7014
Repair kit, Wrench
009G7211
Spare part, GBC 25s-35s, Seal cap
009L7211
Spare part, GBCH 28s-35s; GBC E 28s-35s; GBC 25s-35s, Seal cap
009G7087
Bracket, Spare part kit
