013G3343
Part Number: 013G3343
Product Information
Extended Description

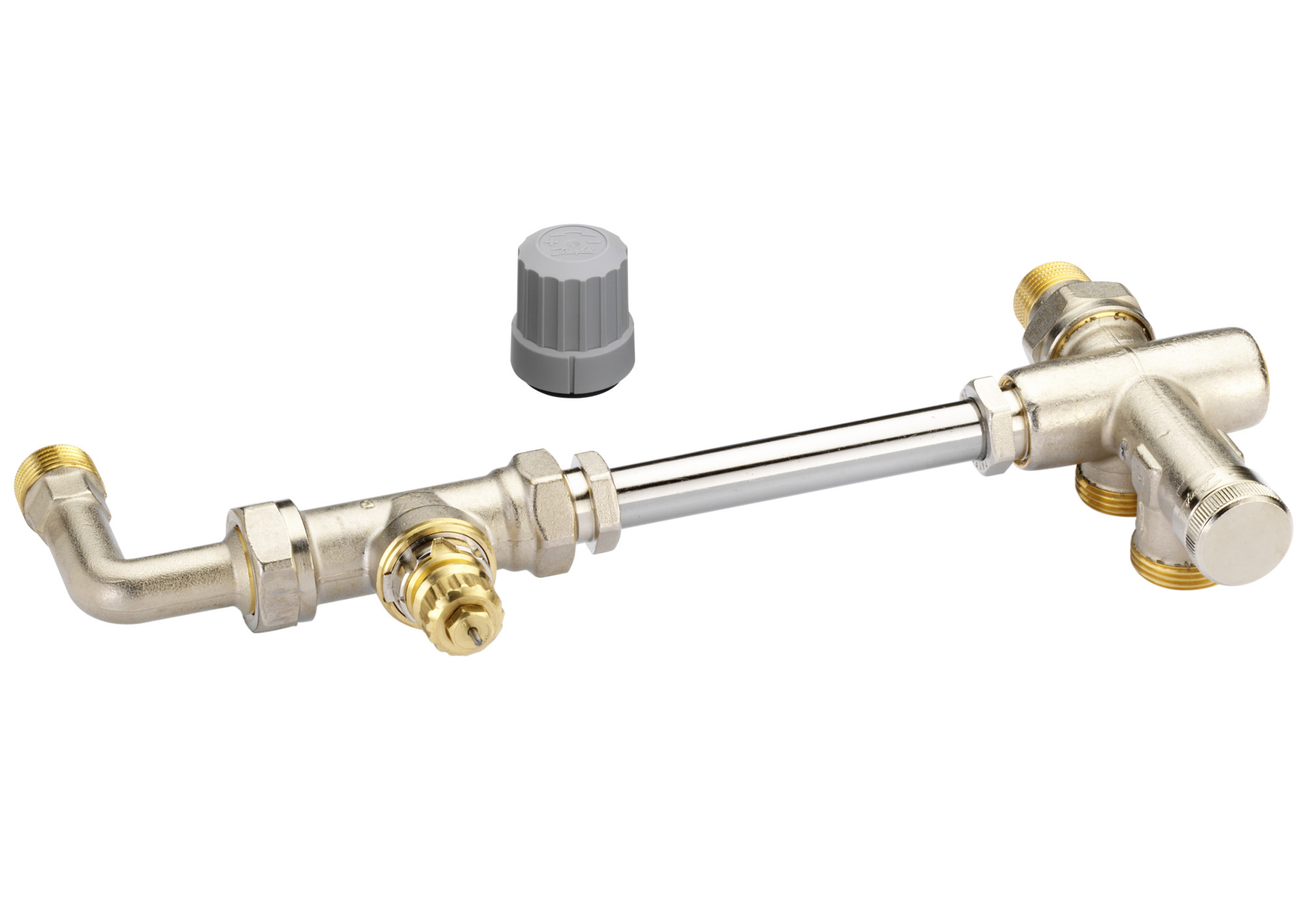

013G3343 Danfoss: RA-KEW Manifold set
Gross weight
0.9 Kilogram
Net weight
0.888 Kilogram
Volume
0.854 Liter
EAN
5702420031767
Application
1-pipe system
Connection size in
G 3/4 A
Connection size out
R 1/2
Contain batteries
No
Contents of set
Valve
Description
RA-KEW Manifold set
Design
Wall connection
Differential pressure range [bar] [Max]
0.6 bar
Flow temperature [=C2=B0C] [Max]
120 =C2=B0C
Kvs values [m=C2=B3/h] [Max]
2.5 m=C2=B3/h
Product group
Manifold Assemblies
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RLV type
RA-KEW
SCIP dossier no.
955a70b7-d19f-4722-a2dc-805eed952fa5
SCIP dossier product name
RA-KE Combi 1
Test pressure [bar]
16 bar
Type
RA-KE/KEW
Valve type
RA-KE with elbow
Working pressure [bar] [Max]
10 bar
