013G4278

Part Number: 013G4278
013G4278
Manufacturer
Danfoss
Part number
013G4278
Category

Product Information

Extended Description

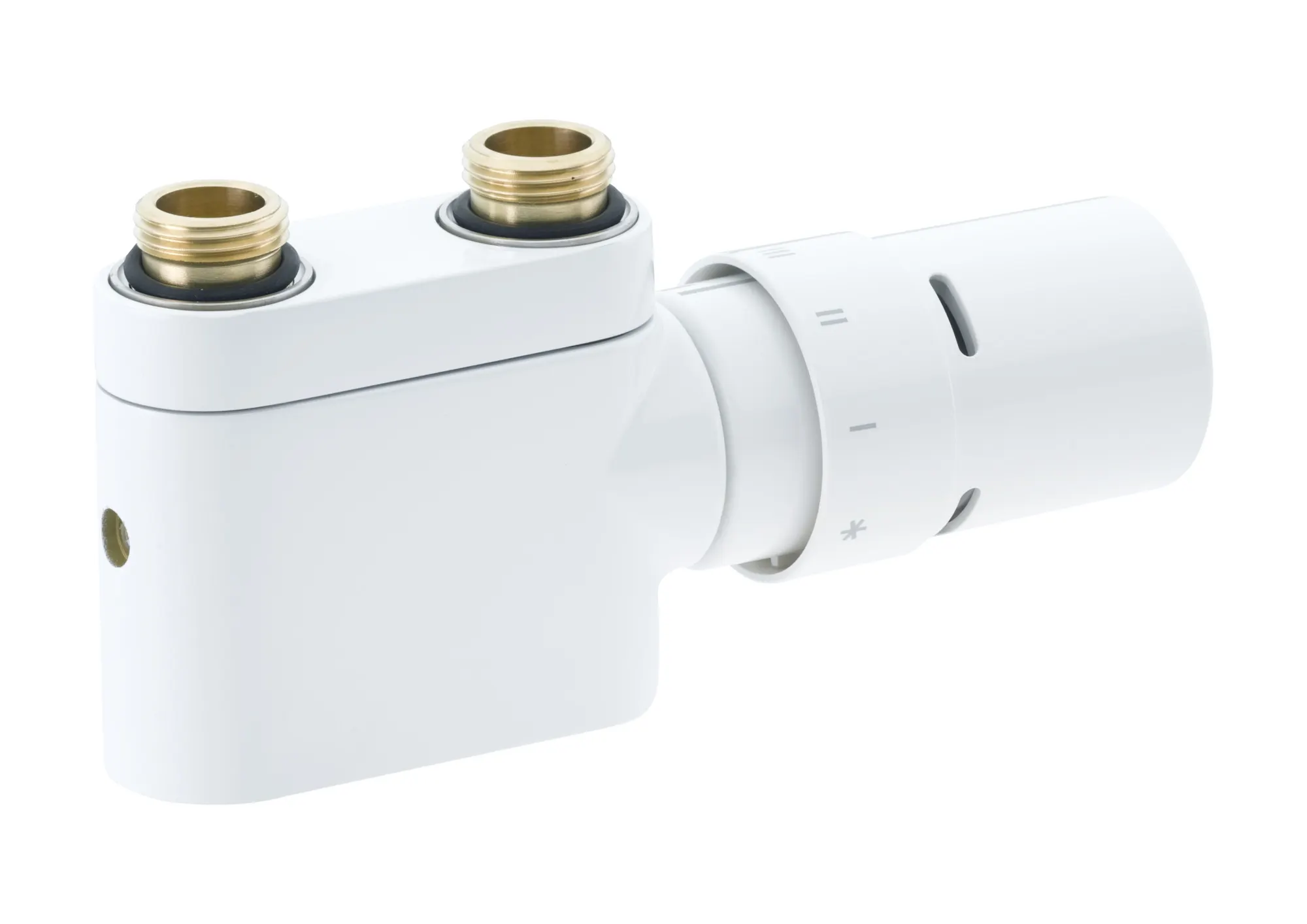

013G4278 Danfoss: VHX/RAX straight 2-pipe RAL 9016, set includes RAX sensor
Gross weight
1.535 Kilogram
Net weight
1.535 Kilogram
Volume
2.7 Liter
EAN
5702420072791
China RoHS compliance
Out of scope
Colour
White RAL 9016
Connection size in
G 1/2
Connection size out
G 1/2 A
Contain batteries
No
Contents of set
Valve, sensor
Description
VHX/RAX straight 2-pipe RAL 9016, set includes RAX sensor
Design
Straight, dual 50 mm connection
Differential pressure range [bar] [Max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [=C2=B0C] [Max]
120 =C2=B0C
Kv value at Xp =3D 0.5 - 2.0 K [m=C2=B3/h] [Max]
0.49 m=C2=B3/h
Kv value at Xp =3D 0.5 - 2.0 K [m=C2=B3/h] [Min]
0.12 m=C2=B3/h
Kvs values [m=C2=B3/h] [Max]
0.56 m=C2=B3/h
Product group
Products for design radiators
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RLV type
Integrated
SCIP dossier no.
225627d5-f9d1-4b4d-ae72-4a07ee57569d
SCIP dossier product name
VHX/RAX pipe
Sensor design
RAX
Sensor type
Thermostatic sensor
Type
VHX sets (X-tra Collection)
UK RoHS compliance
Out of scope
Valve type
VHX-DUO
Working pressure [bar] [Max]
10 bar
Designer radiator thermostats - for designer homes VHX valve sets with RAX thermostatic sensor Danfoss electric heat element & VHX for wall connection Danfoss VHX-DUO valve set for floor connection Danfoss VHX-DUO valve set for wall connection Danfoss VHX-MONO valve set for floor connection Danfoss VHX-MONO valve set for wall connection VHX adapter for standard heating element Warranty certificate_10 years warranty Warranty certificate_5 years warranty VHX sets (X-tra Collection) Danfoss MD VJLXA102.05 DNV GL 7716-2016-PC-DEN-DANAK Rev. 1 VHX 013G4278 VHX 013G4278 VHX 013G4278
