013G7717

Part Number: 013G7717
013G7717
Manufacturer
Danfoss
Part number
013G7717
Category

Product Information

Extended Description

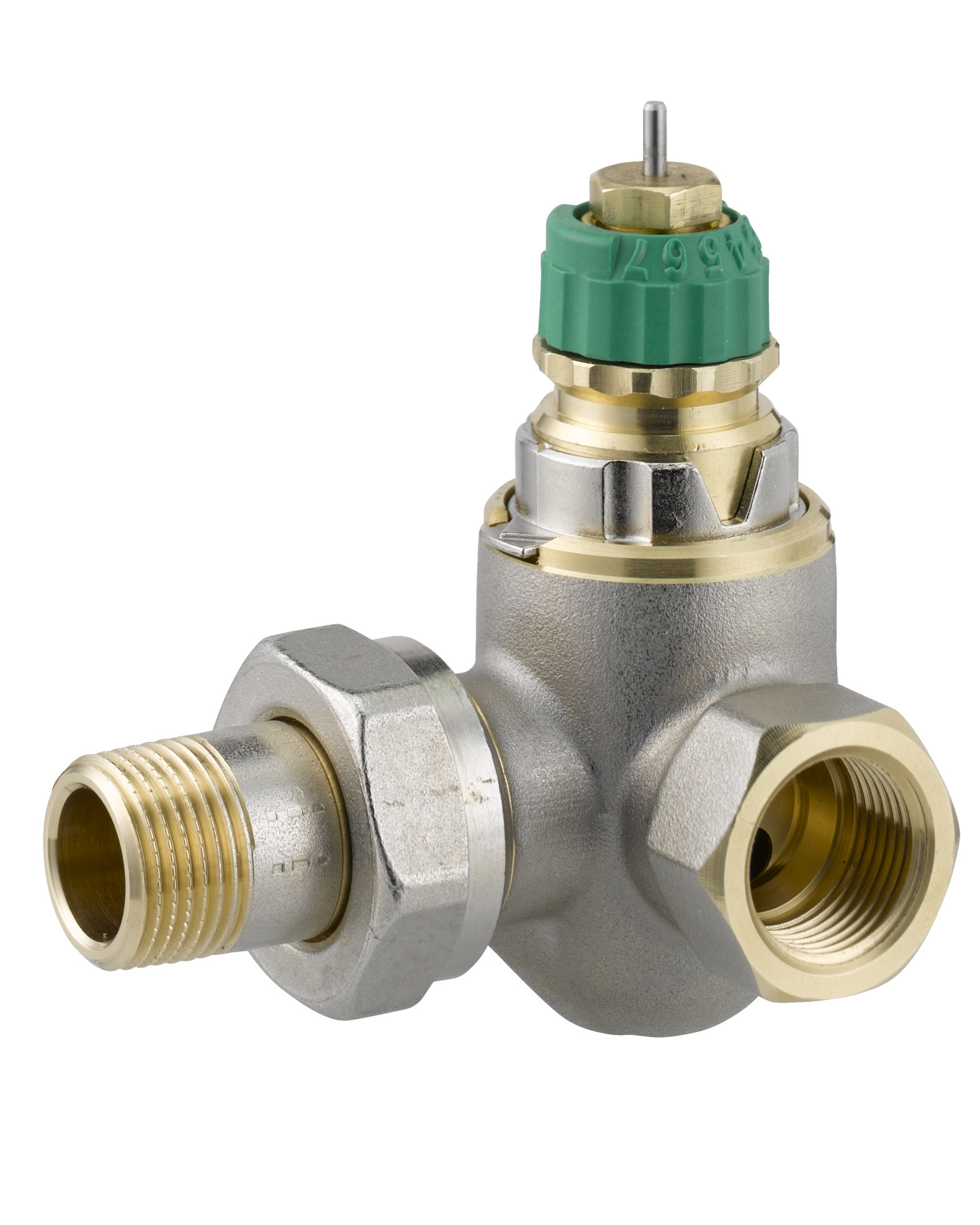

013G7717 Danfoss: Dynamic valve, pressure independent
Gross weight
0.278 Kilogram
Net weight
0.265 Kilogram
Volume
0.329 Liter
EAN
5702425126932
Application
2-pipe system
China RoHS compliance
Out of scope
Connection size in
Rp 3/8
Connection size out
R 3/8
Connection types
Internal thread
Contain batteries
No
Description
Dynamic valve, pressure independent
Design
Double angle right
Differential pressure range [bar] [Max]
0.6 bar
Differential pressure range [bar] [Min]
0.1 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Finish
Nickel plated
Flow [l/h] [Max]
135 L/h
Flow at setting 1 [l/h] [Max]
10 L/h
Flow at setting 2 [l/h] [Max]
15 L/h
Flow at setting 3 [l/h] [Max]
20 L/h
Flow at setting 4 [l/h] [Max]
35 L/h
Flow at setting 5 [l/h] [Max]
50 L/h
Flow at setting 6 [l/h] [Max]
80 L/h
Flow at setting 7 [l/h] [Max]
100 L/h
Flow at setting N [l/h] [Max]
135 L/h
Flow temperature [=C2=B0C] [Max]
95 =C2=B0C
Presetting
yes
Product group
Radiator Valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0d86001d-3a28-4ee4-8d0a-7c500968c9cc
SCIP dossier product name
RA-DV Dynamic radiator valve
Tailpiece type
Standard
Test pressure [bar]
16 bar
Type
RA-DV
UK RoHS compliance
Out of scope
Valve size
DN 10
Valve type
Dynamic (pressure independent)
Working pressure [bar] [Max]
10 bar
