013U0022

Part Number: 013U0022
013U0022
Manufacturer
Danfoss
Part number
013U0022
Category

Product Information

Extended Description

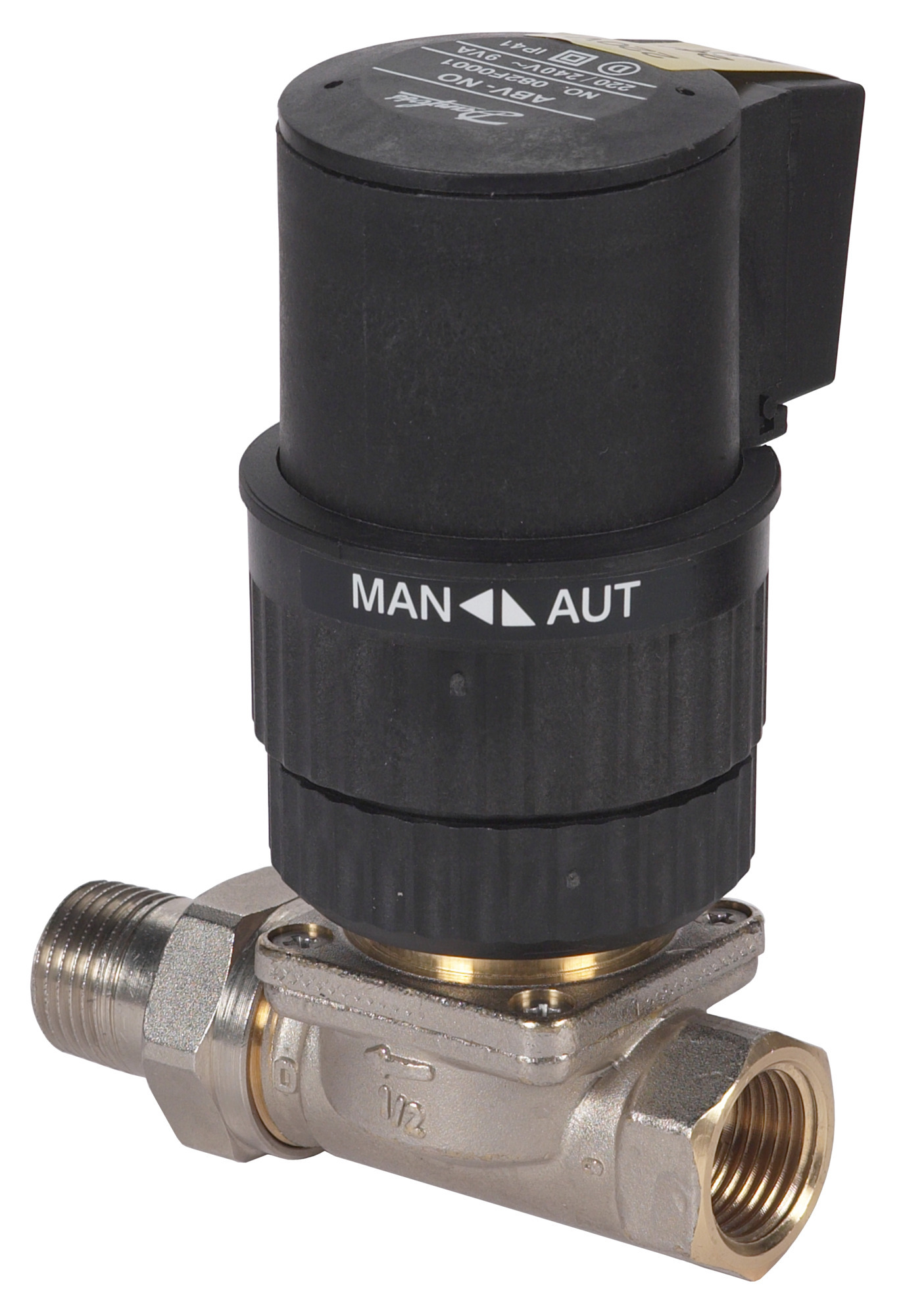

013U0022 Danfoss: RAV PN10 20/2,3 2-way/8 int.thr Straight
Gross weight
0.456 Kilogram
Net weight
0.456 Kilogram
Volume
0.679 Liter
EAN
5702420010373
Application
Heating and cooling
Cavitation factor
0.5
China RoHS compliance
Out of scope
Closing differential pressure [bar] [Max]
0.8 bar
Connection size
Inlet Rp 3/4 Outlet R 3/4 Inlet Rp 3/4, Outlet R 3/4
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
RAV PN10 20/2,3 2-way/8 int.thr Straight
Diameter [mm]
20 mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Kvs values [mÂł/h]
2.3 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
6
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
fe849d25-ee8a-4ce9-948b-d1cdcaec392e
Spindle position
Normally open
Stroke [mm]
1.1 mm
Type
RAV
UK RoHS compliance
Out of scope
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 20
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
