013U0217
Part Number: 013U0217
Product Information
Extended Description

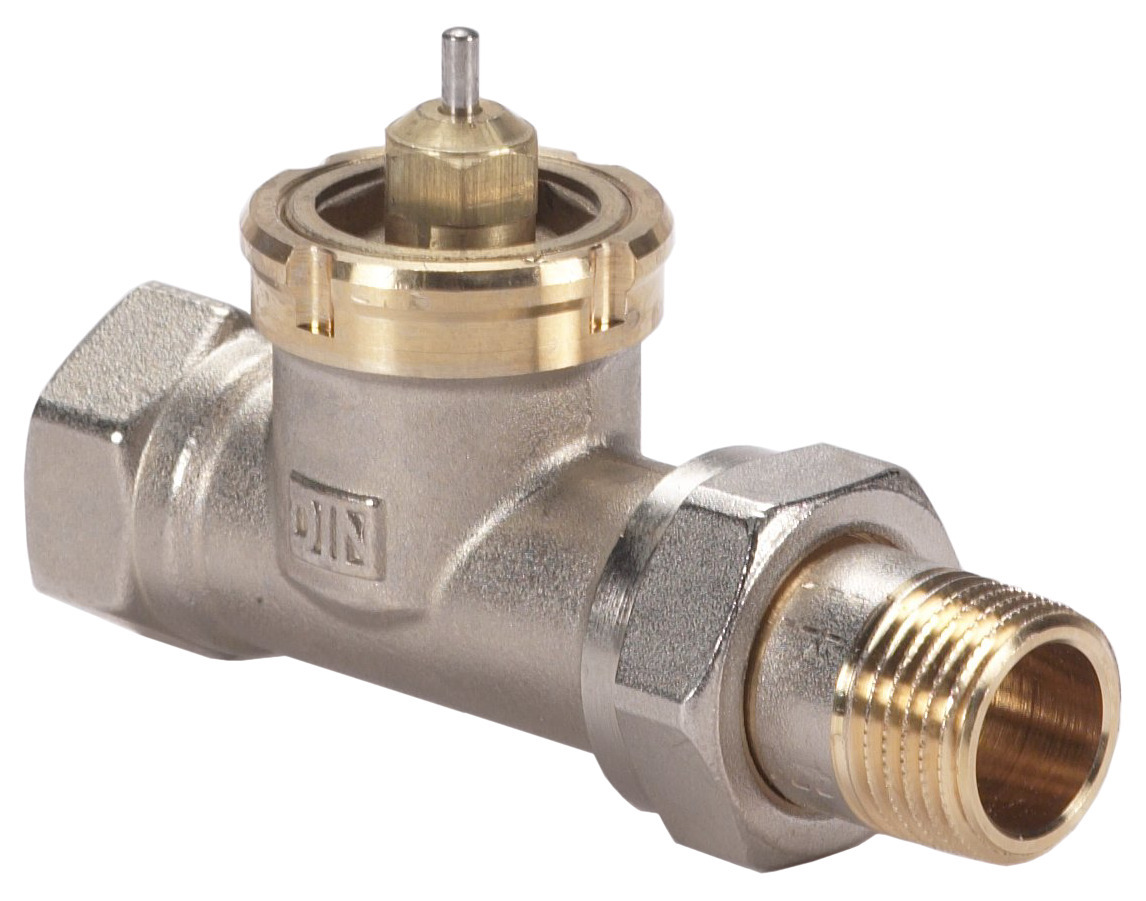

013U0217 Danfoss: RAV PN10 15/2,8 2-way/2 int.thr Straight
Gross weight
0.438 Kilogram
Net weight
0.435 Kilogram
Volume
0.385 Liter
EAN
5702420012957
Application
Heating and cooling
Cavitation factor
0.5
China RoHS compliance
Out of scope
Closing differential pressure [bar] [Max]
0.2 bar
Connection size
Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
RAV PN10 15/2,8 2-way/2 int.thr Straight
Diameter [mm]
15 mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Kvs values [mÂł/h]
2.8 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
6
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Stroke [mm]
1.1 mm
Type
RAV
UK RoHS compliance
Out of scope
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 15
