013U3017
Part Number: 013U3017
Product Information
Extended Description

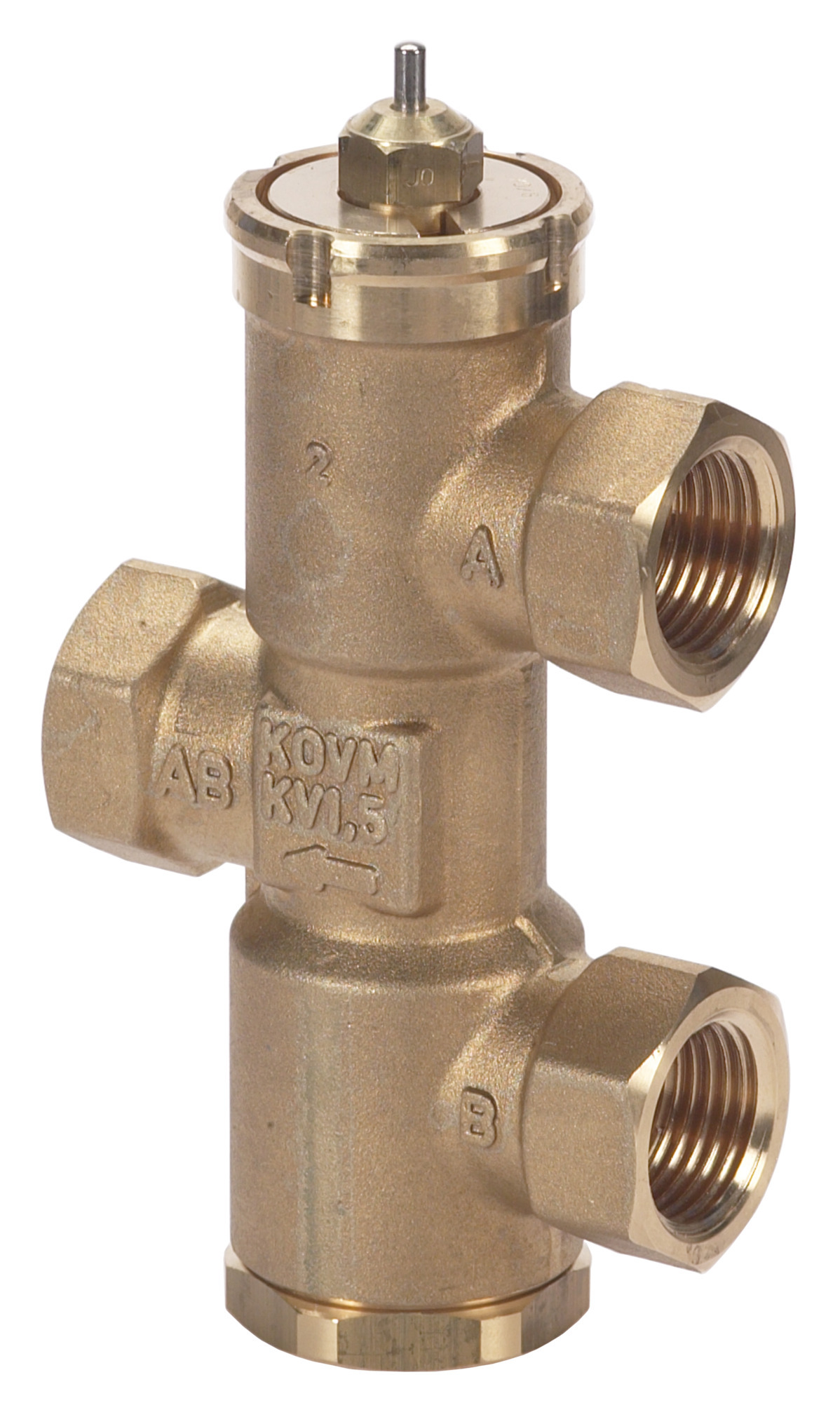

013U3017 Danfoss: KOV 1/2NPT 140 PB
Gross weight
0.648 Kilogram
Net weight
0.648 Kilogram
Volume
0.5 Liter
EAN
5702421300435
Application
District Heating
Application alternative VSP
District heating
Cavitation factor
0.5
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
KOV 1/2NPT 140 PB
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
1.6 bar
Flow characteristic
Linear
Function
Control valve
Function 2
Mixing valve
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
90 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Medium alternative 2
Circulation water
Mounting version
Free
Number of ports
3
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
Spindle material
Stainless steel 18/8
Spindle position
Normally open
Type
KOVM
Valve body material
Brass W. No 2.0402
Valve cone material
EPDM
Valve size
DN 15
