013U3020
Part Number: 013U3020
Product Information
Extended Description

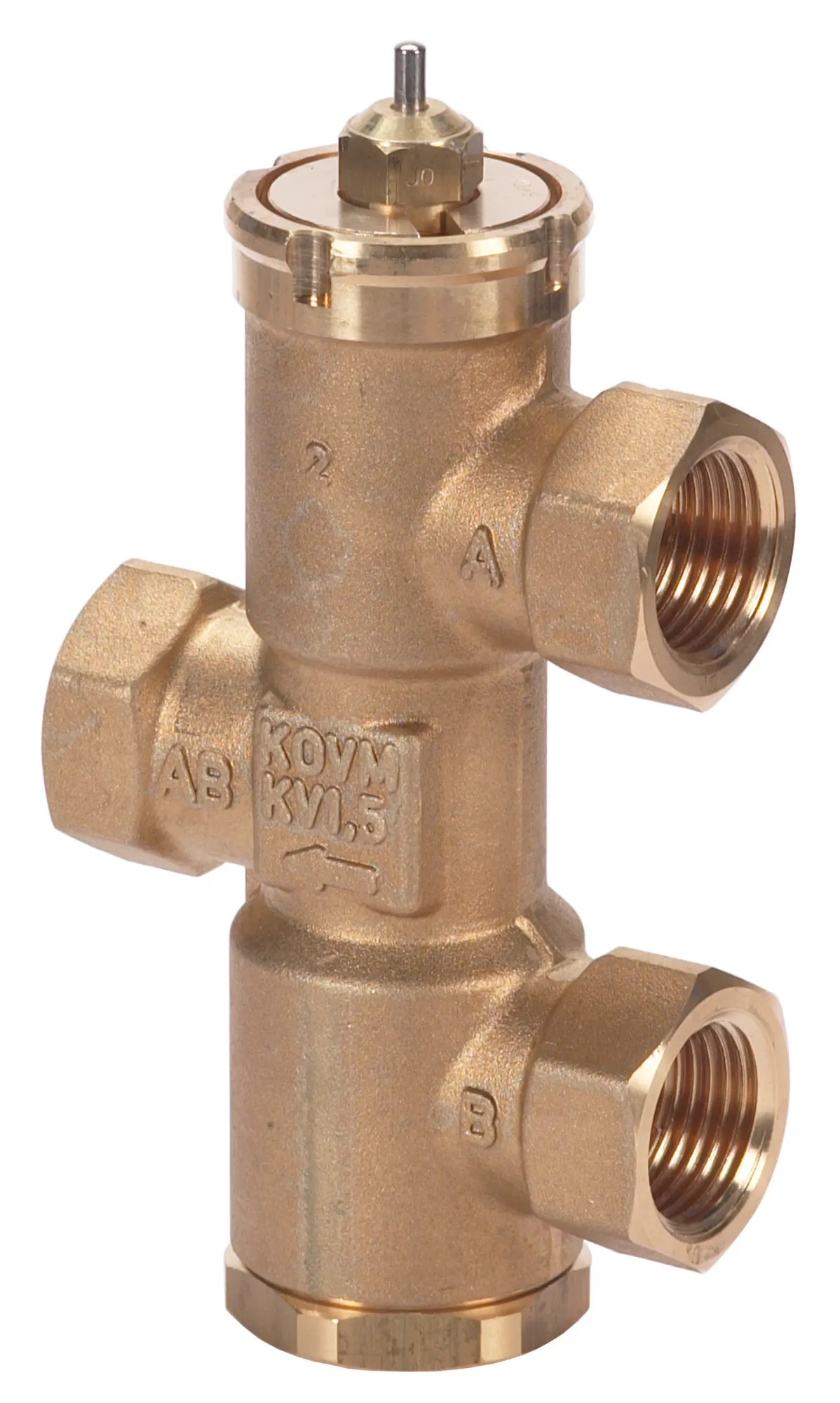

013U3020 Danfoss: KOVM PN10 15/2 3-way int. thread
Gross weight
0.645 Kilogram
Net weight
0.645 Kilogram
Volume
0.821 Liter
EAN
5702421300442
Application
Heating and cooling
Cavitation factor
0.5
Connection size
Rp 1/2
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
KOVM PN10 15/2 3-way int. thread
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
1.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Function
Control valve
Function 2
Mixing valve
Kvs values [mÂł/h]
2 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
90 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
3
Permissible media
District heating/cooling circulation water
PN alternative VSP
6
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle material
Stainless steel 18/8
Spindle position
Normally open
Stroke [mm]
1.5 mm
Type
KOVM
Valve body material
Brass W. No 2.0402
Valve cone material
EPDM
Valve size
DN 15
013G4112
Compression fittings for steel and copper tubings, G 1/2" A, 12, Nickel plated
013G4114
Compression fittings for steel and copper tubings, G 1/2" A, 14, Nickel plated
013G4115
Compression fittings for steel and copper tubings, G 1/2" A, 15, Nickel plated
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
013G4116
Compression fittings for steel and copper tubings, G 1/2" A, 16, Nickel plated
