013U8008
Part Number: 013U8008
Product Information
Extended Description

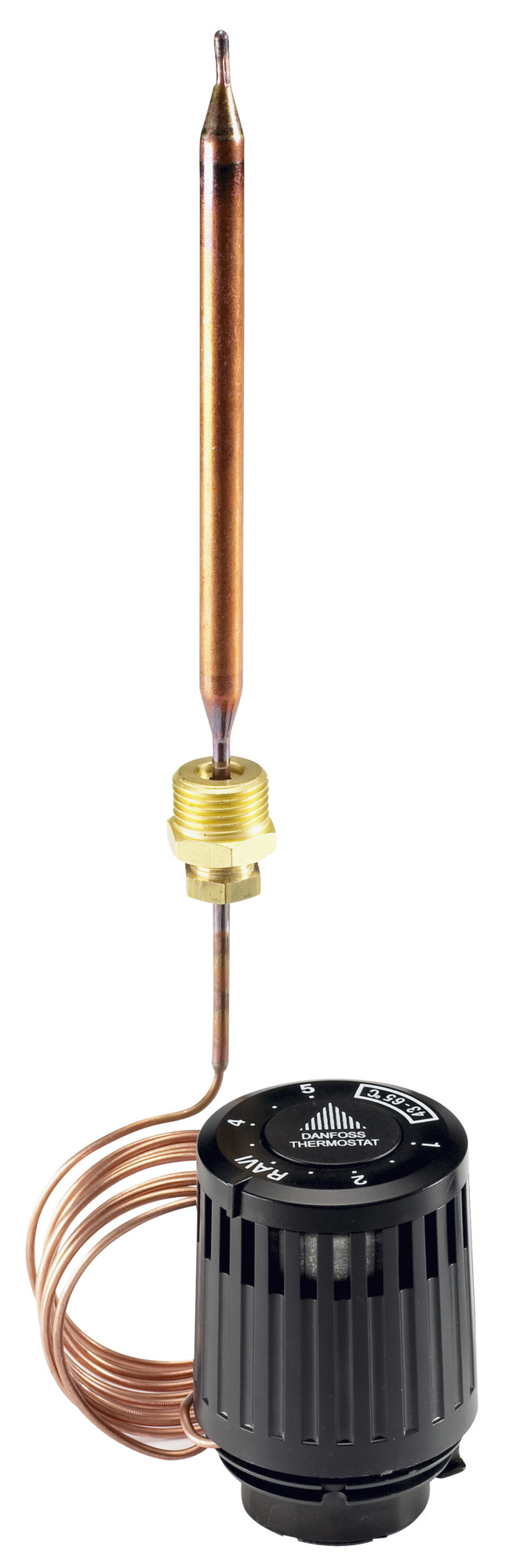

013U8008 Danfoss: RAVI PN10 43-65/2m
Gross weight
0.446 Kilogram
Net weight
0.37 Kilogram
Volume
2.35 Liter
EAN
5702421500415
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR838
Capillary tube length [m]
2 m
Contain batteries
No
Description
RAVI PN10 43-65/2m
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Function
Temp. controller
Gain Ks
0.25
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
70 °C
Mounting version
Return
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9eff2b20-4e4a-46da-b447-f3bc37989436
SCIP dossier product name
RAVI PN10
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
150 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature sensor mounting
Sensor warmer
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
43 °C
Time constant [sec]
3 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVI
013U0012
RAV, PN 10, DN 10, 1.20 mÂł/h, 0.8 bar, Internal thread
013U0017
RAV, PN 10, DN 15, 1.50 mÂł/h, 0.8 bar, Internal thread
013U0022
RAV, PN 10, DN 20, 2.30 mÂł/h, 0.8 bar, Internal thread
013U0027
RAV, PN 10, DN 25, 3.10 mÂł/h, 0.8 bar, Internal thread
013U8102
AVTB RAVI/K Adapt. R1/2 M14x1 Gasket fi12.6/4 x 6
065-4414
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Brass
065-4415
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Stainless steel
065F0115
VMT, PN 10, DN 15, 1.50 mÂł/h, External Thread, G 3/4 A
065F0120
VMT, PN 10, DN 20, 2.30 mÂł/h, External Thread, G 1 A
065F0125
VMT, PN 10, DN 25, 3.10 mÂł/h, External Thread, G 1 1/4 A
