013U8013
Part Number: 013U8013
Product Information
Extended Description

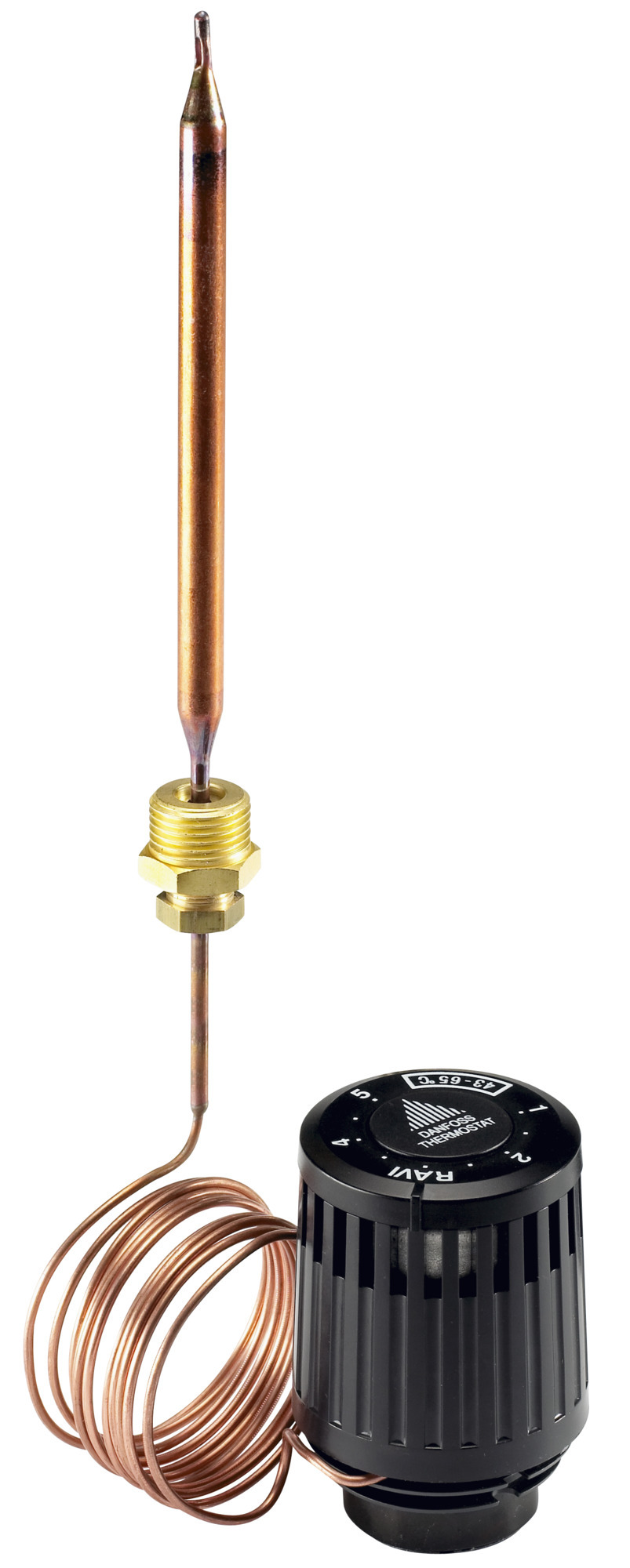

013U8013 Danfoss: RAVI PN10 43-65/2m
Gross weight
0.42 Kilogram
Net weight
0.35 Kilogram
Volume
2.368 Liter
EAN
5702421500477
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR838
Capillary tube length [m]
2 m
Contain batteries
No
Description
RAVI PN10 43-65/2m
EU RoHS compliance
Yes with exemptions
Function
Temp. controller
Gain Ks
0.25
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
70 °C
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
150 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature sensor mounting
Sensor warmer
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
43 °C
Time constant [sec]
3 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVI
