013U8063

Part Number: 013U8063
013U8063
Manufacturer
Danfoss
Part number
013U8063
Category

Product Information

Extended Description

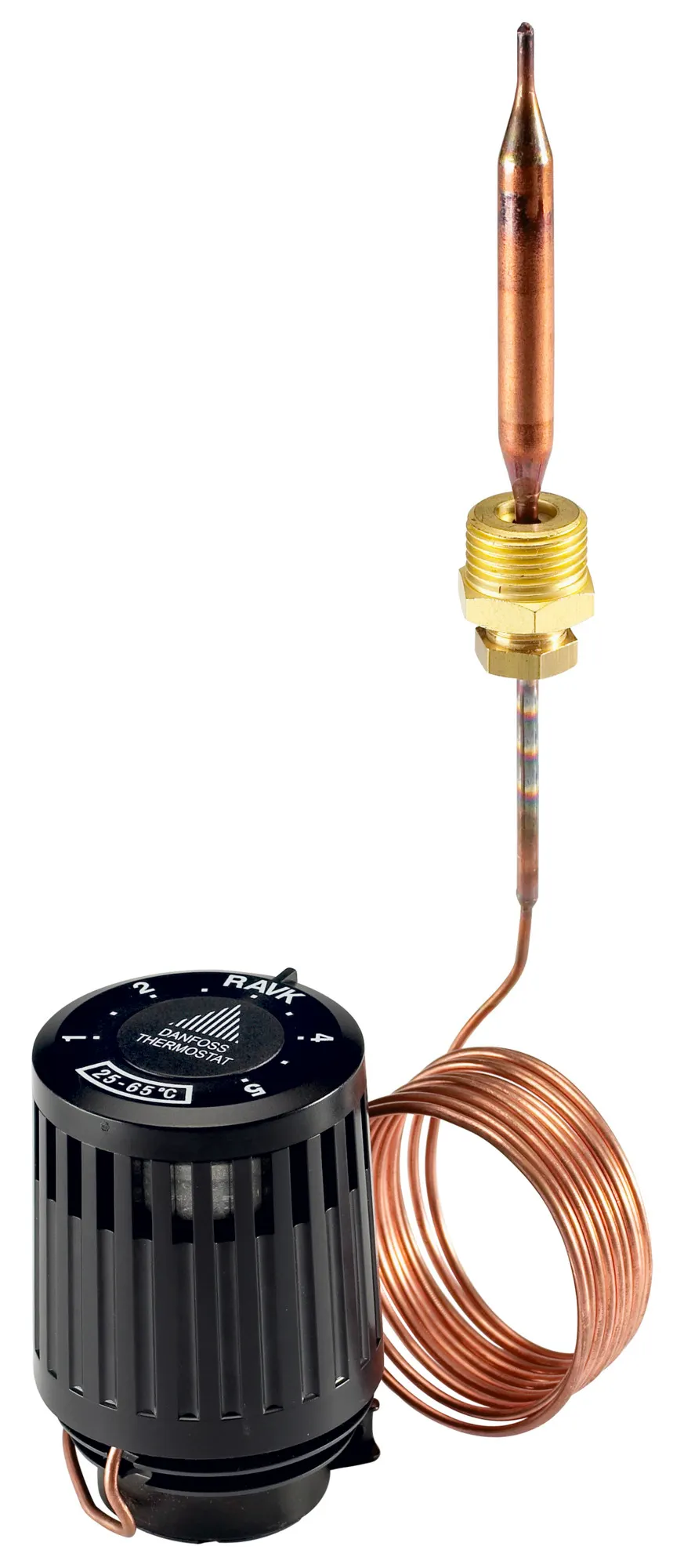

013U8063 Danfoss: RAVK PN16 25-65/2m
Gross weight
0.42 Kilogram
Net weight
0.42 Kilogram
Volume
1.372 Liter
EAN
5702421500491
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Capillary tube length [m]
2 m
Contain batteries
No
Description
RAVK PN16 25-65/2m
EU RoHS compliance
Yes with exemptions
Function
Temp. controller
Gain Ks
0.1
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
120 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
148caf19-7609-4e9e-a712-c41cb639cc2b
SCIP dossier product name
013U8063
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
82 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
25 °C
Time constant [sec]
25 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVK
013U8102
AVTB RAVI/K Adapt. R1/2 M14x1 Gasket fi12.6/4 x 6
065-4414
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Brass
065-4415
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Stainless steel
Hydronic Specialties Controls Catalog and Application Guide RAVK RAVK RAVK (25-65 °C / 35-75 °C) Actuators pressure flow and temperature Thermostatic actuator type RAVK Historical Sensors 013U8063 3D Thermostatic actuator type RAVK Thermostatic actuator type RAVK Historical Sensors 013U8063 2D Thermostatic actuator type RAVK 3D DWG CAD drawing of RAVK - 013U8072 RAVK_2D
