013U8064
Part Number: 013U8064
Product Information
Extended Description

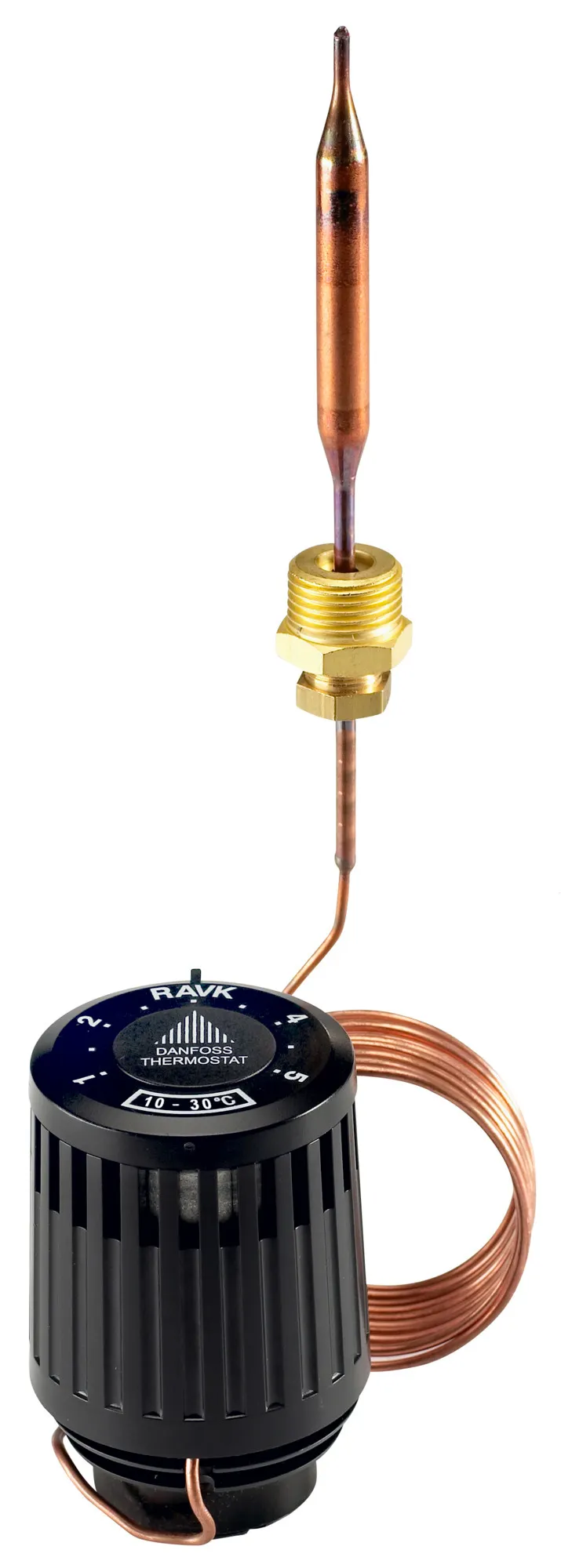

013U8064 Danfoss: RAVK PN16 25-65/2m, I-p
Gross weight
0.354 Kilogram
Net weight
0.354 Kilogram
Volume
0.93 Liter
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Capillary tube length [m]
2 m
Contain batteries
No
Description
RAVK PN16 25-65/2m, I-p
EU RoHS compliance
Yes with exemptions
Function
Temp. controller
Gain Ks
0.1
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
120 °C
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
82 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
25 °C
Time constant [sec]
25 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVK
