013U8072
Part Number: 013U8072
Product Information
Extended Description

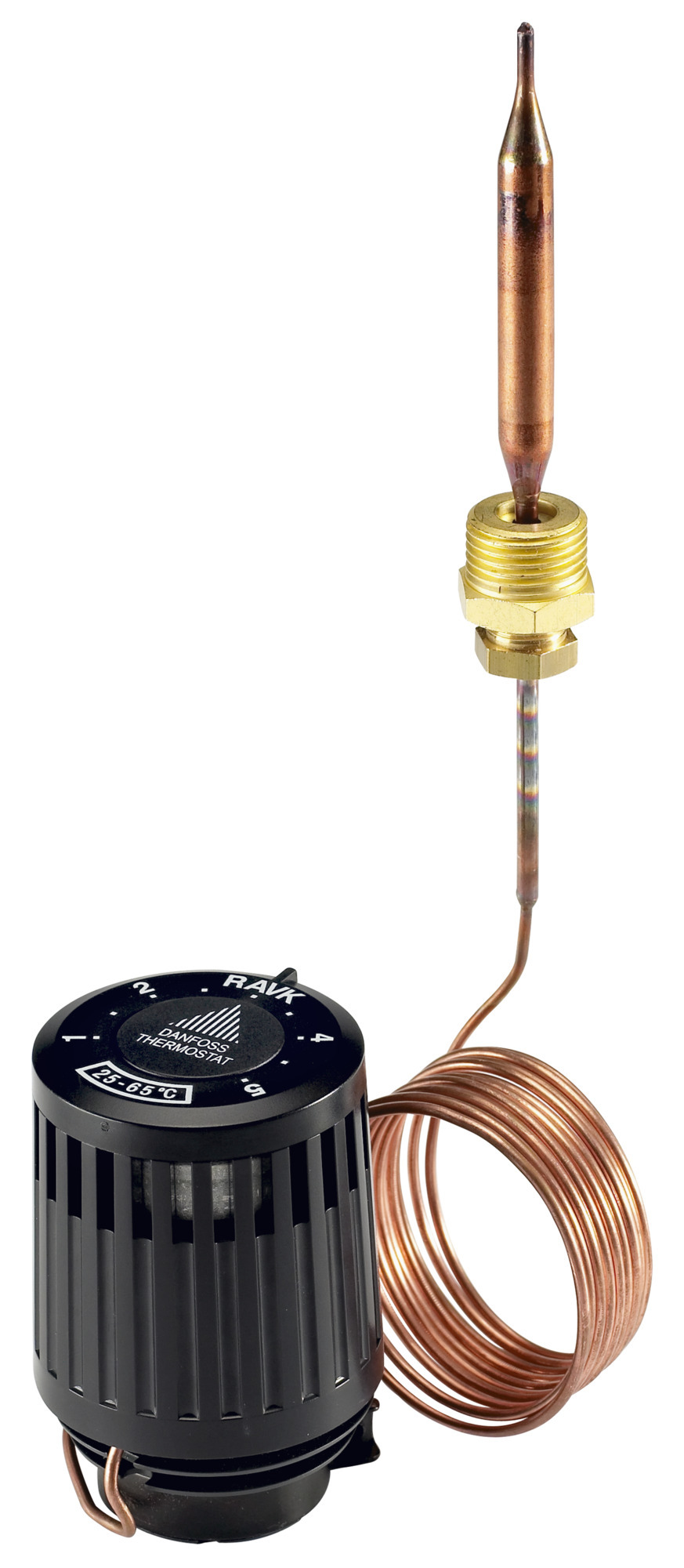

013U8072 Danfoss: RAVK PN16 25-45/2m
Gross weight
0.414 Kilogram
Net weight
0.398 Kilogram
Volume
1.343 Liter
EAN
5702421552094
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Capillary tube length [m]
2 m
Contain batteries
No
Description
RAVK PN16 25-45/2m
EU RoHS compliance
Yes with exemptions
Function
Temp. controller
Gain Ks
0.1
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
120 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
82 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
45 °C
Temperature setting range [°C] [Min]
25 °C
Time constant [sec]
25 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVK
013U8102
AVTB RAVI/K Adapt. R1/2 M14x1 Gasket fi12.6/4 x 6
065-4414
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Brass
065-4415
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Stainless steel
