013U8081
Part Number: 013U8081
Product Information
Extended Description

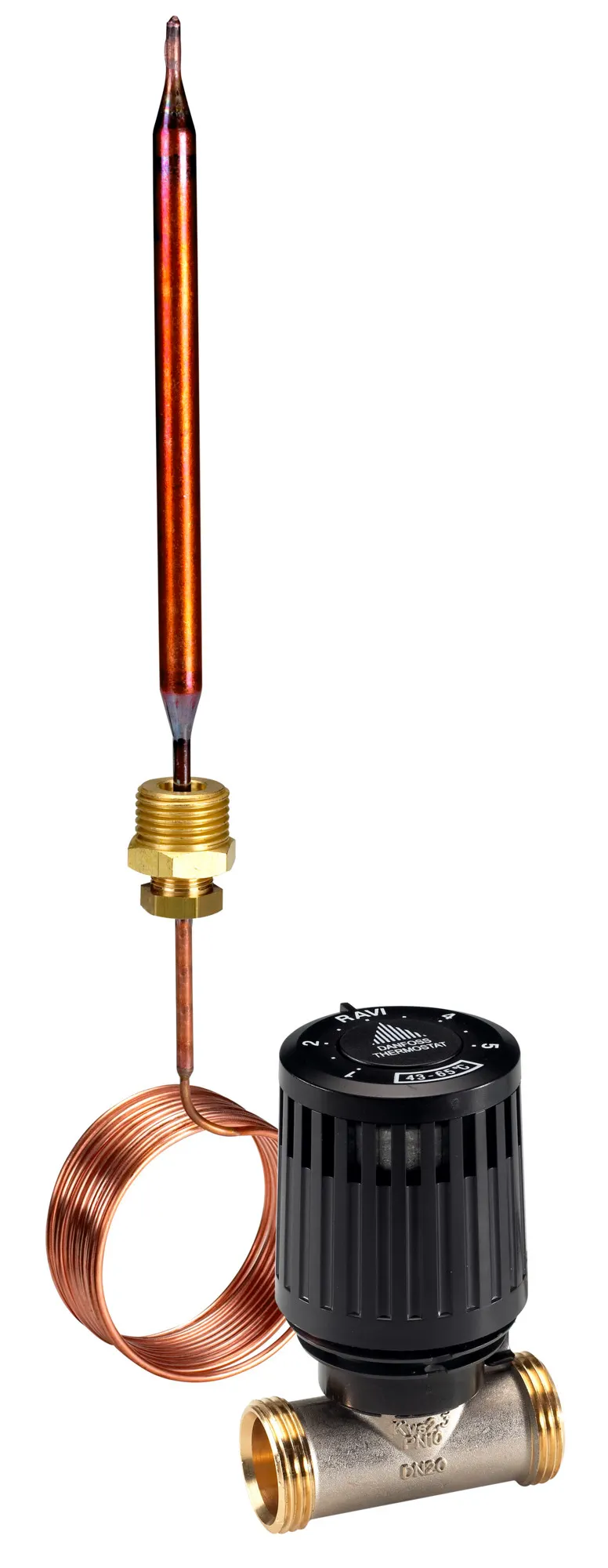

013U8081 Danfoss: RAVI-VMT PN10 15/1,6 43-65/2m ext. thr
Gross weight
0.782 Kilogram
Net weight
0.75 Kilogram
Volume
2.268 Liter
EAN
5702421500545
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN 14597:2005-12 TR838
Capillary tube length [m]
2 m
Cavitation factor
0.5
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
G 3/4 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
RAVI-VMT PN10 15/1,6 43-65/2m ext. thr
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
0.8 bar
EU RoHS compliance
Yes with exemptions
Flow characteristic
Linear
Flow control
No
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
Yes
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
1.6 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
120 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rection time close [sec]
3 "
Rection time open [sec]
3 "
Return limiter function
No
Temperature control
Yes
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
150 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature sensor mounting
Colder
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
43 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
RAVI-VMT
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve size
DN 15
