014-0004
Part Number: 014-0004
Product Information
Extended Description
014-0004 Danfoss: Max. Working Pressure [bar]: 35.0, Moisture indicator: No indicator, Connection type: G, Connection size: 3/4
Gross weight
0.078 Kilogram
Net weight
0.077 Kilogram
Volume
0.086 Liter
EAN
5702422031468
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection Internal/External
External
Connection material
Brass
Connection size
3/4
Connection size [in]
3/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floating ball [pc]
1 pc
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
500 psig
Moisture indicator
No indicator
Oil free refrigerants
R134a,R513A
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description

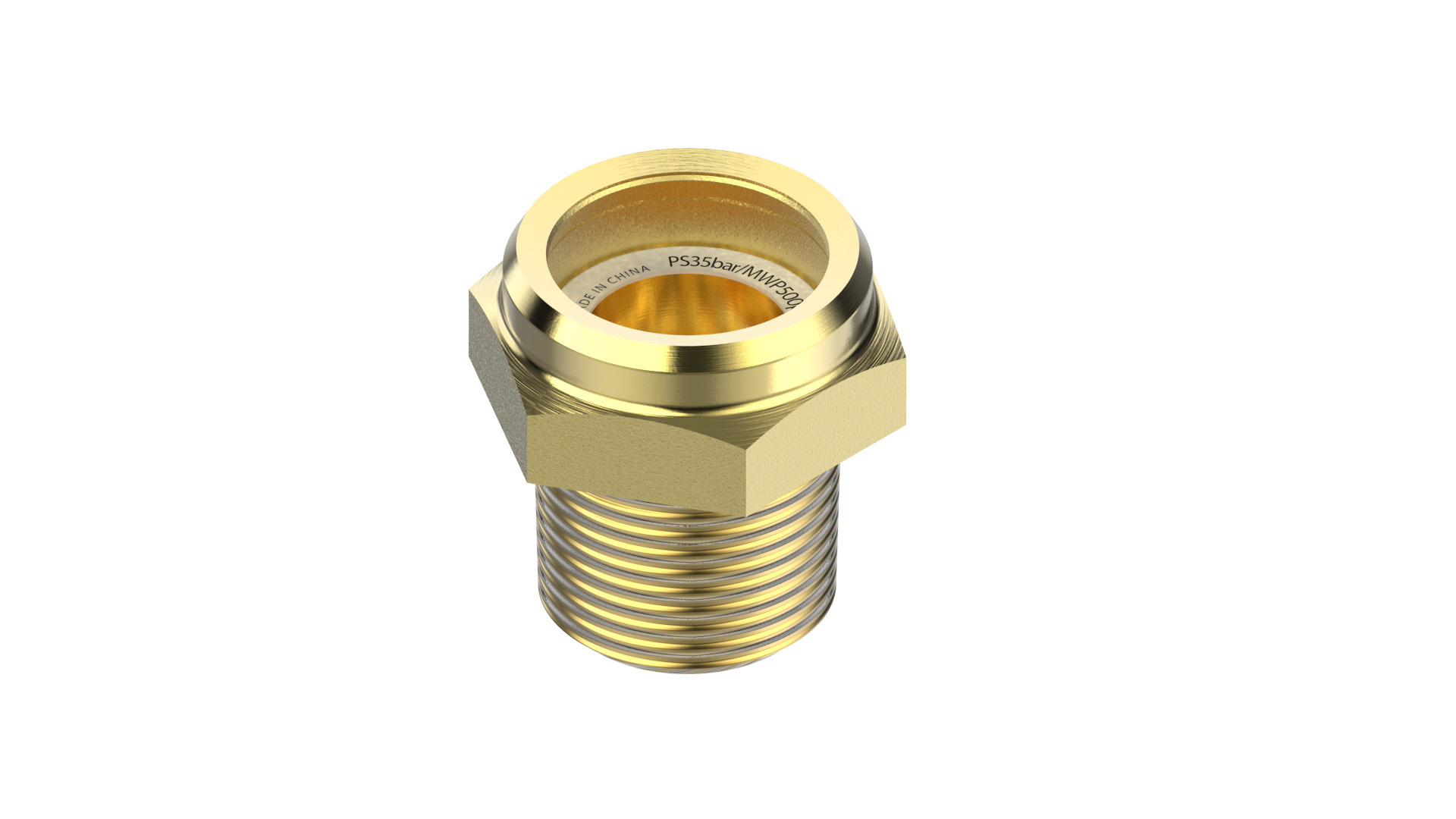

Sight glass socket
Quantity per packing format
19 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
SCIP dossier no.
525e07d8-f4a6-4108-b8f8-36090550941f
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGR
UK RoHS compliance
Out of scope
