014-0131

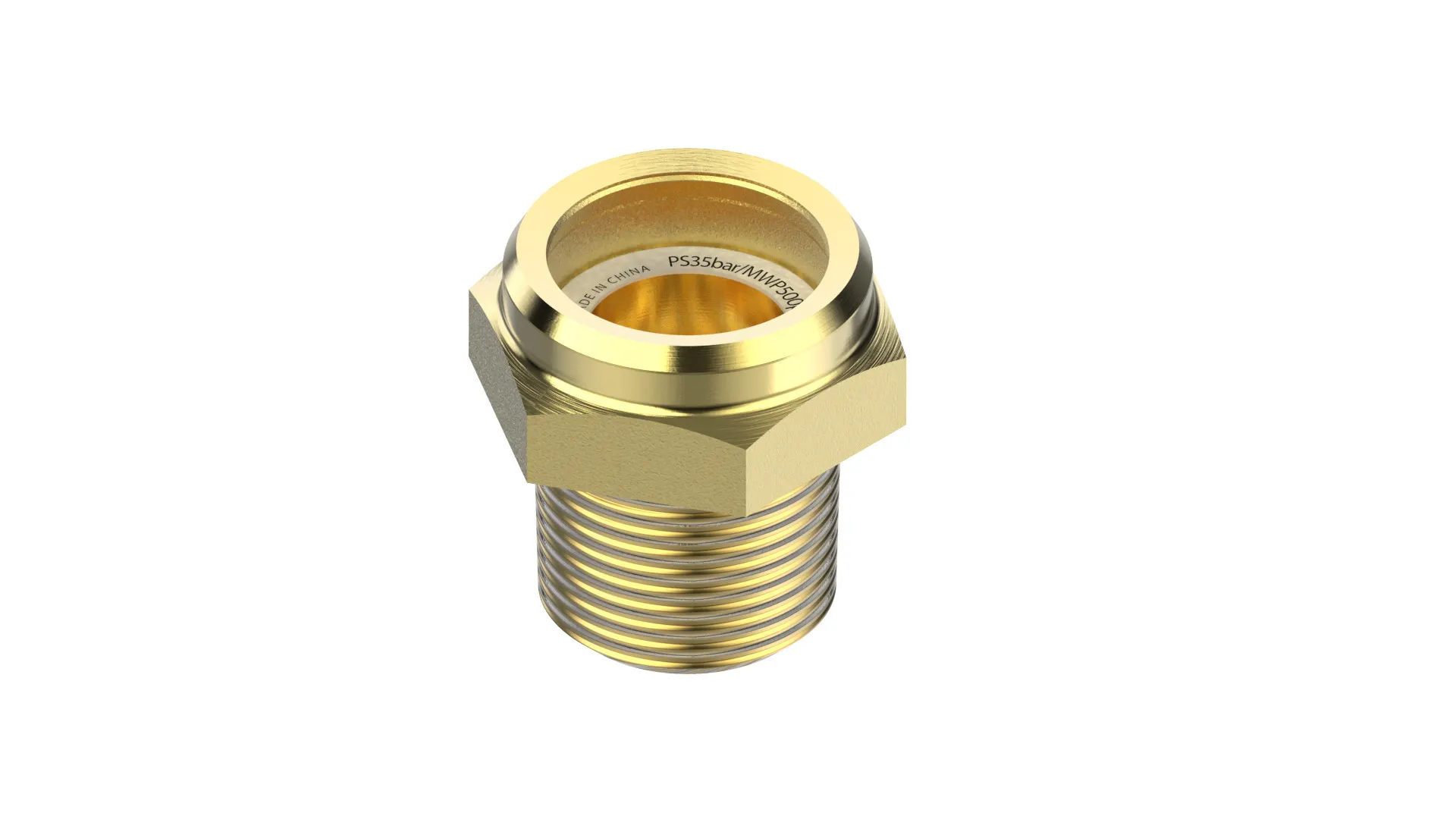

Part Number: 014-0131
Product Information
Extended Description
014-0131 Danfoss: Max. Working Pressure [bar]: 35.0, Moisture indicator: I indicator, Connection type: NPT, Connection size: 1/2 in
Gross weight
0.073 Kilogram
Net weight
0.064 Kilogram
Volume
0.086 Liter
EAN
5702428288545
Approval
CE,UKCA,UL
Body material
Brass
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
1/2 in
Connection size [in]
1/2 in
Connection standard
ANSI/ASME B1.20.1
Connection type
NPT
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floating ball [pc]
3 pc
Green: max moist con@25 °C
R22: 150 ppm
Green: max moist con@43 °C
R22: 250 ppm
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
500 psig
Moisture indicator
I indicator
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description
Sight glass socket
Quantity per packing format
19 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R22
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGRI
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R22
UL evaluated
Yes
Yellow: min moist con@25 °C
R22: 300 ppm
Yellow: min moist con@43 °C
R22: 500 ppm
