014-1066
Part Number: 014-1066
Product Information
Extended Description
014-1066 Danfoss: Max. Working Pressure [bar]: 35.0, Moisture indicator: No indicator, Connection type: M, Connection size: M24 x 1
Gross weight
0.077 Kilogram
Net weight
0.07 Kilogram
Volume
0.078 Liter
EAN
5702428255646
Approval
UL
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
M24 x 1
Connection type
M
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Further information
Thread for socket unit
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
500 psig
Moisture indicator
No indicator
Packing format
Industrial pack
Parts included
Gasket
Product accessories
Sight glass accessories
Product group
Sight glasses
Product Name Description

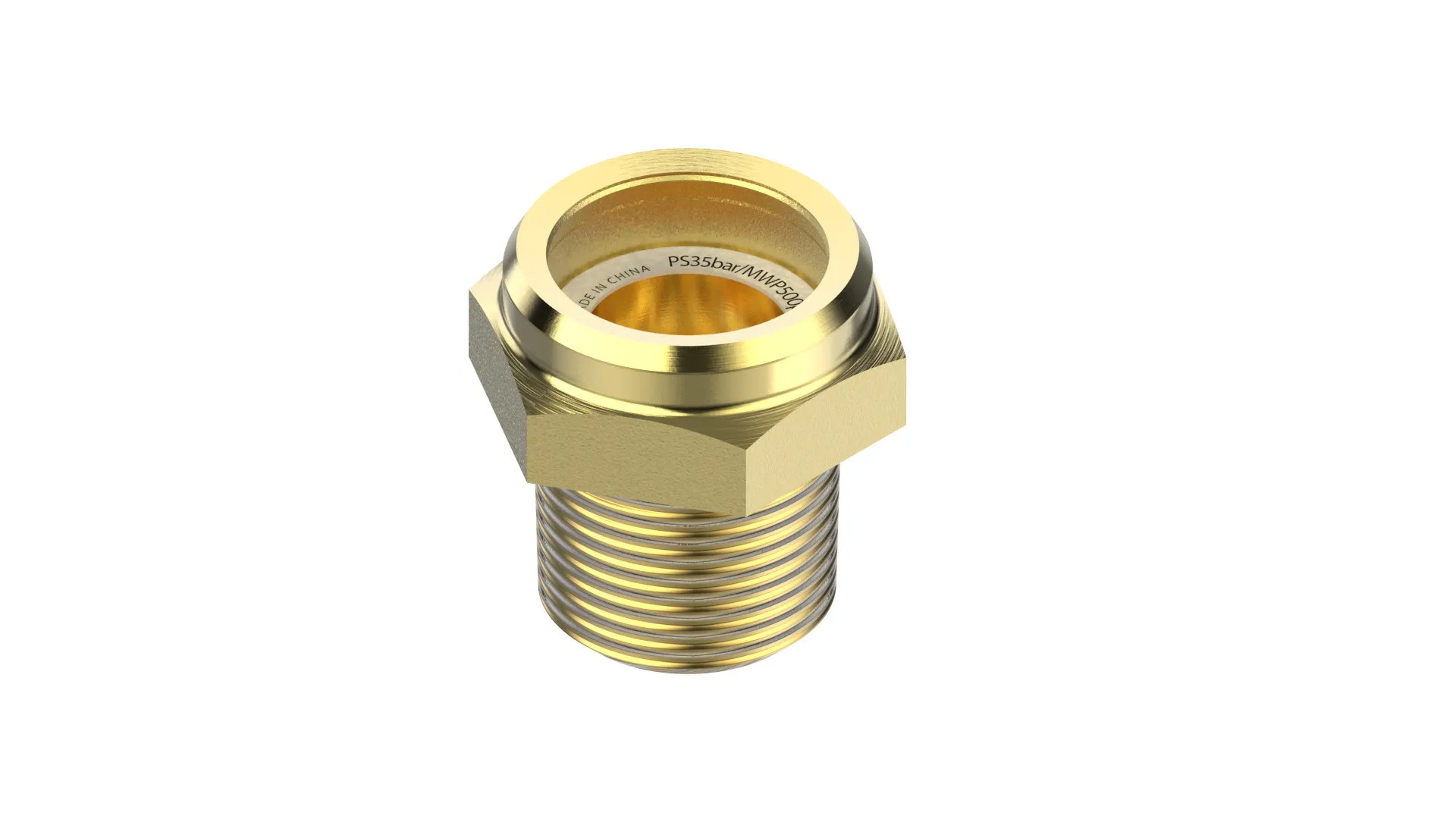

Sight glass socket
Quantity per packing format
80 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234yf,R1234ze(E),R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
SCIP dossier no.
d64be145-2cb1-4f9e-b131-1e4b19976626
SCIP dossier product name
Electric control valve body(2)
Serviceable
No
SGS saddle application
M24 x 1
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGR
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
UL evaluated
Yes
