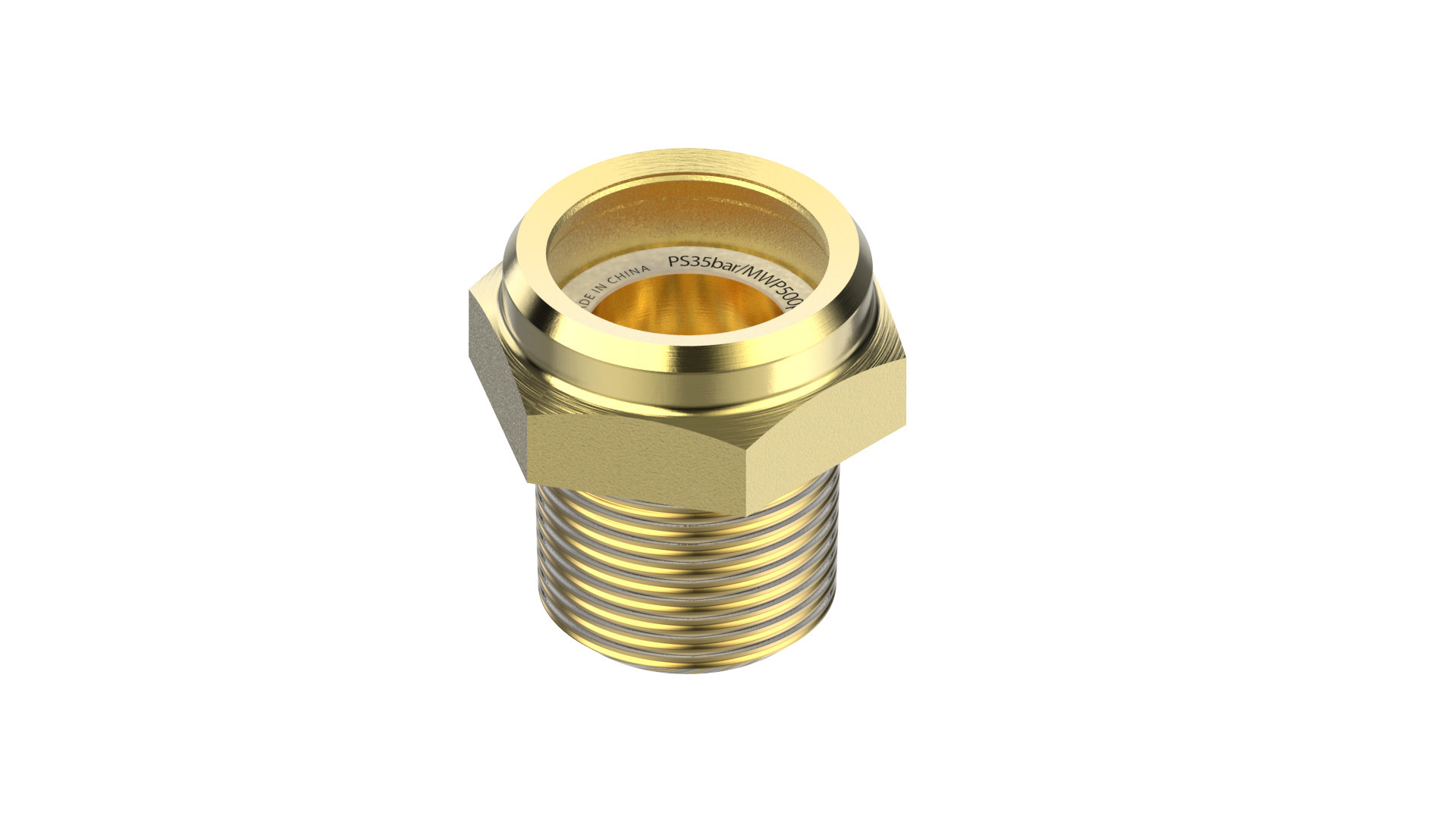

014-1155
Part Number: 014-1155
Product Information
Extended Description
014-1155 Danfoss: Max. Working Pressure [bar]: 35.0, Moisture indicator: N indicator, Connection type: M, Connection size: M24 x 1
Gross weight
0.084 Kilogram
Net weight
0.07 Kilogram
Volume
0.086 Liter
EAN
5702428289016
Approval
UL
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
M24 x 1
Connection type
M
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R134a: 30 ppm,R22: 30 ppm,R404A: 20 ppm,R407A: 29 ppm,R407C: 30 ppm,R407F: 30 ppm,R448A: 28 ppm,R449A: 29 ppm,R450A: 23 ppm,R452A: 20 ppm,R507A: 15 ppm,R513A: 22 ppm
Green: max moist con@43 °C
R134a: 45 ppm,R22: 50 ppm,R404A: 25 ppm,R407A: 48 ppm,R407C: 60 ppm,R407F: 60 ppm,R448A: 70 ppm,R449A: 53 ppm,R450A: 46 ppm,R452A: 30 ppm,R507A: 30 ppm,R513A: 22 ppm
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
500 psig
Moisture indicator
N indicator
Packing format
Multi pack
Parts included
Gasket
Product accessories
Sight glass accessories
Product group
Sight glasses
Product Name Description
Sight glass socket
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R1234yf,R1234ze(E),R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
SGS saddle application
M24 x 1
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGRN
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
UL evaluated
Yes
Yellow: min moist con@25 °C
R134a: 100 ppm,R22: 120 ppm,R404A: 70 ppm,R407A: 115 ppm,R407C: 140 ppm,R407F: 168 ppm,R448A: 110 ppm,R449A: 105 ppm,R450A: 148 ppm,R452A: 79 ppm,R507A: 60 ppm,R513A: 75 ppm
Yellow: min moist con@43 °C
R134a: 170 ppm,R22: 200 ppm,R404A: 100 ppm,R407A: 192 ppm,R407C: 225 ppm,R407F: 240 ppm,R448A: 227 ppm,R449A: 200 ppm,R450A: 245 ppm,R452A: 143 ppm,R507A: 110 ppm,R513A: 123 ppm
