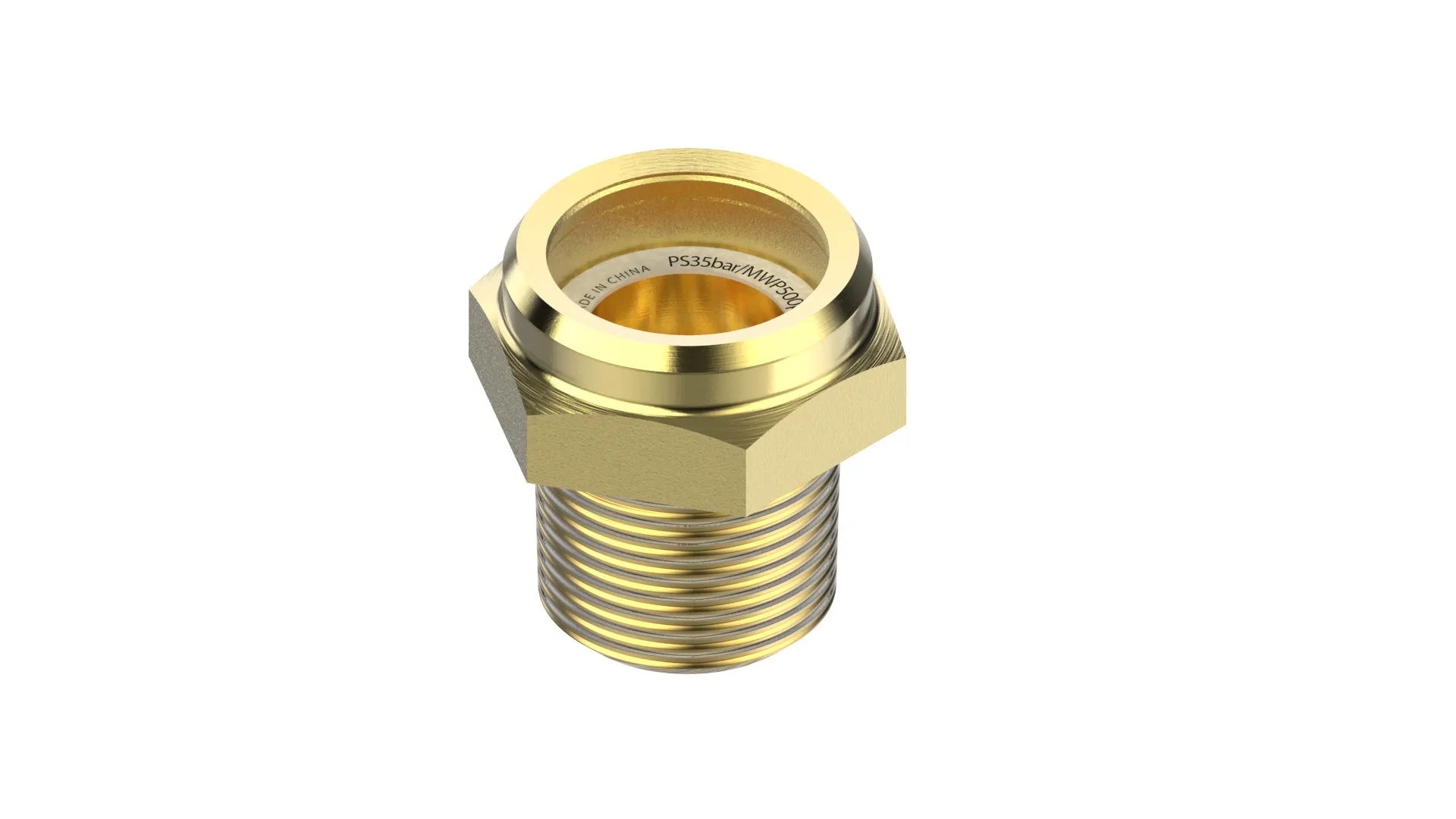

014-1605
Part Number: 014-1605
Product Information
Extended Description
014-1605 Danfoss: Max. Working Pressure [bar]: 46.0, Moisture indicator: No indicator, Connection type: M, Connection size: M20 x 1.5
Gross weight
0.052 Kilogram
Net weight
0.045 Kilogram
Volume
0.1 Liter
EAN
5702428289184
Approval
UL
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
M20 x 1.5
Connection type
M
Contain batteries
No
Customer Name
Carrier
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Moisture indicator
No indicator
Packing format
Industrial pack
Product accessories
Sight glass accessories
Product group
Sight glasses
Product Name Description
Sight glass socket
Quantity per packing format
80 pc
Refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
Serviceable
No
SGS saddle application
M20 x 1.5
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGR
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R134a,R22,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R507A,R513A
UL evaluated
Yes
