014G0289

Part Number: 014G0289
014G0289
Manufacturer
Danfoss
Part number
014G0289
Category

Product Information

Extended Description

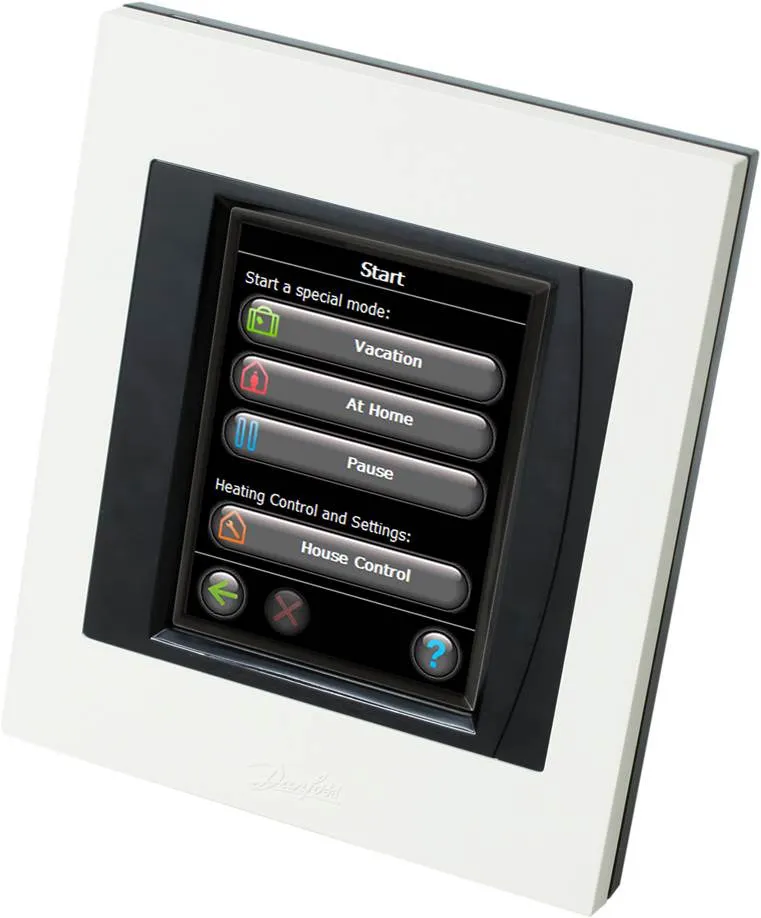

014G0289 Danfoss: Danfoss Link Central Controller, Z-wave
Gross weight
0.622 Kilogram
Net weight
0.622 Kilogram
Volume
1.486 Liter
EAN
5702425120213
Ambient temperature [°C] [max]
40 °C
Ambient temperature [°C] [min]
-10 °C
Application
Residential (pollution degree 2)
Approval
Z-Wave,CE,EAC
Approval standard
CE marking
Ball pressure test temperature [°C]
75 °C
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour
Black RAL 9005 / White RAL 9016
Contain batteries
No
Description
Danfoss Link Central Controller
Display type
Touch screen
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Heating control type
App module
Height [mm]
25 mm
In scope of WEEE
Yes
Length [mm]
125 mm
Number of radiator thermostats (incl.)
3 pc
Power consumption (standby) [W]
2 W
Power supply
NSU
Product group
Danfoss Link™
REACH Candidate List substances
No
Software class
A
Software version
4.1.0 or higher
Storage temperature [°C] [Max]
65 °C
Storage temperature [°C] [Min]
-20 °C
Supply voltage [V] DC
15 V
System integration
Danfoss Link™
Thermostat IP Class
21
Transmission [m] [Max]
30 m
Transmission frequency [GHz]
2.4 GHz
Transmission frequency [MHz]
868.42 MHz
Type
Central controller
UK RoHS compliance
Out of scope
Voice assistant compatibility
Amazon Alexa
Width [mm]
107 mm
Wireless standard
Z-wave
Danfoss Link™ - brochure for professionals Danfoss Link™ Central Controller Overview - Danfoss Link and living software versions living connect® - Installation and User Guide Danfoss Link™ CC Central Controller Warranty certificate_10 years warranty Warranty certificate_5 years warranty Danfoss EU VCIOC102.07 Danfoss Link CC NSU for Danfoss Link CC, GB-DAS - 014G02661 Danfoss Link 014G0150 014G0151 014G0152 014G0153
