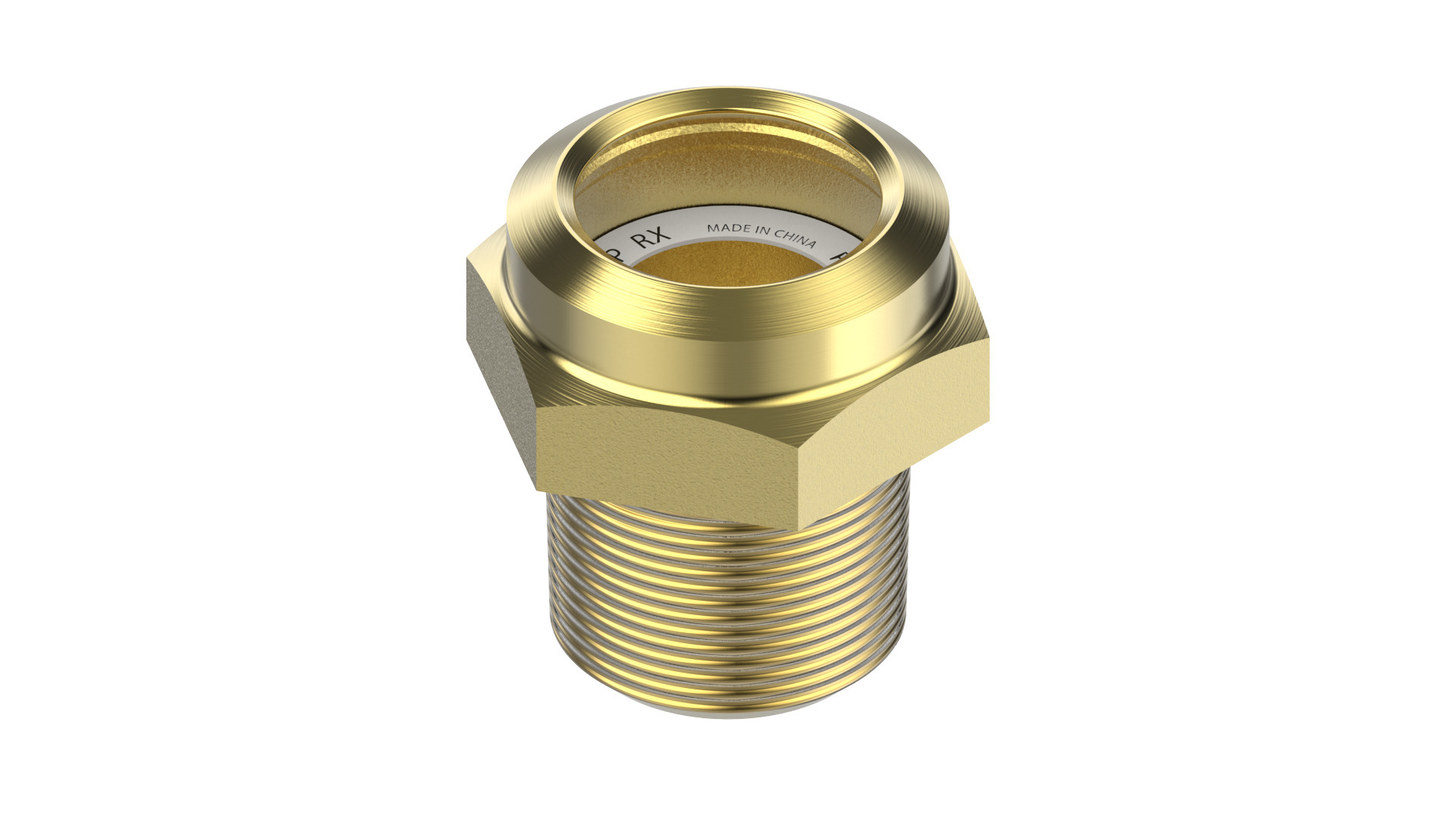

014L0004

Part Number: 014L0004
014L0004
Manufacturer
Danfoss
Part number
014L0004
Category

Product Information

Extended Description

014L0004 Danfoss: Max. Working Pressure [bar]: 52.0, Connection type: G, Connection size: 3/4
Gross weight
0.083 Kilogram
Net weight
0.07 Kilogram
Volume
0.086 Liter
EAN
5702428818957
Approval
C UL US LISTED
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection Internal/External
External
Connection material
Brass
Connection size
3/4
Connection size [in]
3/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floating ball [pc]
1 pc
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
No indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description
Sight glass socket
Quantity per packing format
19 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R134a,R22,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B
SCIP dossier no.
525e07d8-f4a6-4108-b8f8-36090550941f
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 3/4 RX
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B
UL evaluated
Yes
Sight glass type SG and SGP Sight glass Type SGP X, SGP I, SGP N, SGP RX, SGP RI, SGP RN, SGR, SG, SGN, SGRN Sight Glass Danfoss MD 033F4001.AH Danfoss MD 033F4006 Danfoss MD 033F4010 Danfoss MD 033F4017.AD UL SA6525 TSSA CRN 0F24203.5123467890TNY Sight glass socket, SGP 1/2 RX_014L0002 SGP RX sight glass, socket type without indicator SGRI+ sight glass, socket connection for saddle mounting
