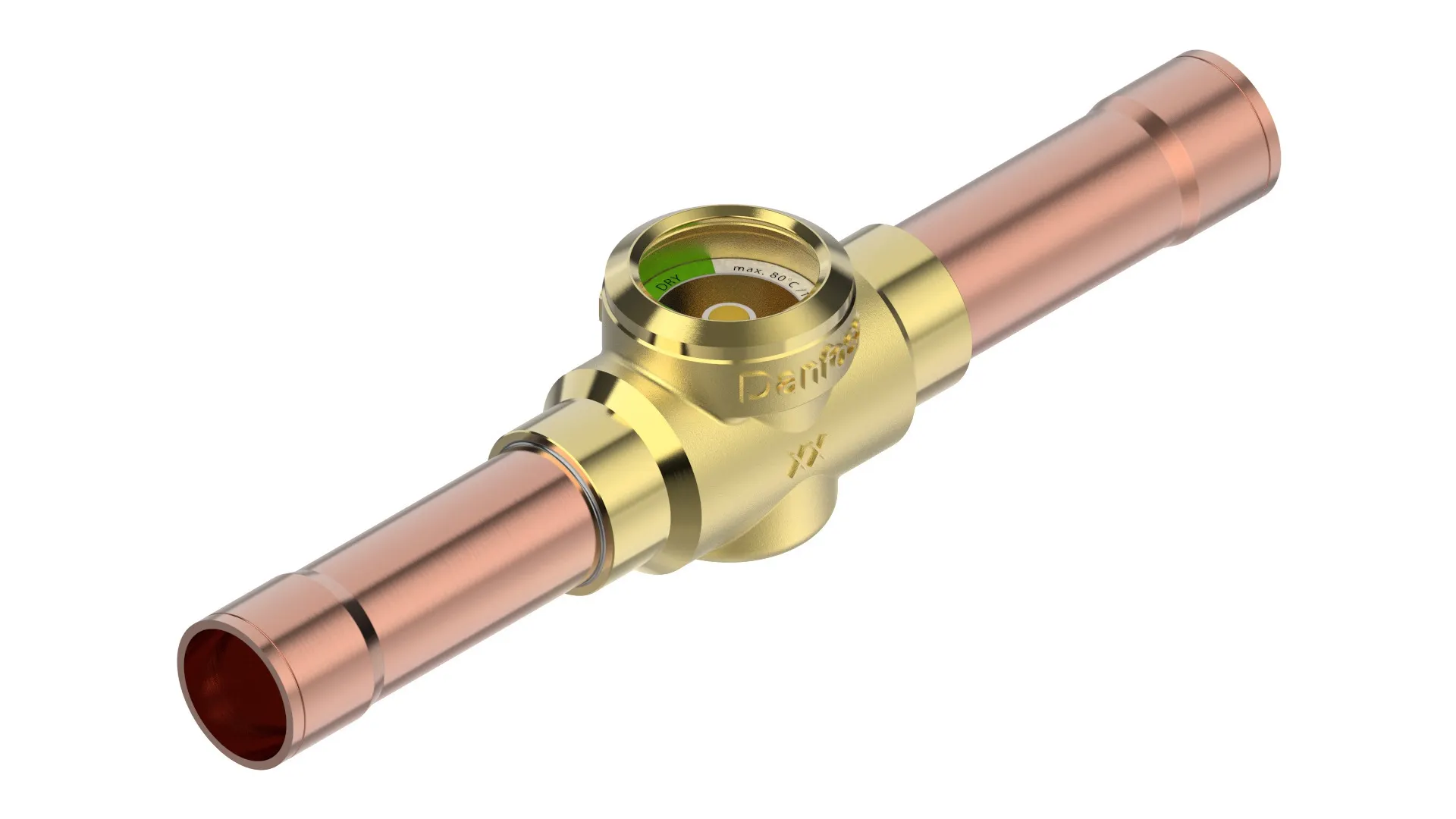

014L0045
Part Number: 014L0045
Product Information
Extended Description
014L0045 Danfoss: Inlet connection type: Solder, ODF, Inlet size [mm]: 18.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 18.00
Gross weight
0.306 Kilogram
Net weight
0.287 Kilogram
Volume
0.274 Liter
EAN
5702428839112
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R22: 150 ppm,R290: 25 ppm,R600: 10 ppm,R600a: 11 ppm
Green: max moist con@43 °C
R22: 250 ppm,R290: 50 ppm,R600: 28 ppm,R600a: 30 ppm
Ignition source assessment
Yes
Inlet connection type
Solder, ODF
Inlet size [mm]
18 mm
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
I indicator
Outlet connection type
Solder, ODF
Outlet size [mm]
18 mm
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description
Sight glass
Quantity per packing format
28 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22,R290,R600,R600a
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 18s I
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R22
UL evaluated
Yes
Yellow: min moist con@25 °C
R22: 300 ppm,R290: 50 ppm,R600: 20 ppm,R600a: 22 ppm
Yellow: min moist con@43 °C
R22: 500 ppm,R290: 100 ppm,R600: 55 ppm,R600a: 60 ppm
Sight glass type SG and SGP
Sight glass Type SGP X, SGP I, SGP N, SGP RX, SGP RI, SGP RN, SGR, SG, SGN, SGRN
Sight Glass
Danfoss MD 033F4001.AH
Danfoss MD 033F4006
Danfoss MD 033F4010
Danfoss MD 033F4017.AD
UL SA6525
TSSA CRN 0F24203.5123467890TNY
Sight glass, SGP 18s I_014L0045, 014L0195, 014L1095
SGP 18s I
