014L0080
Part Number: 014L0080
Product Information
Extended Description

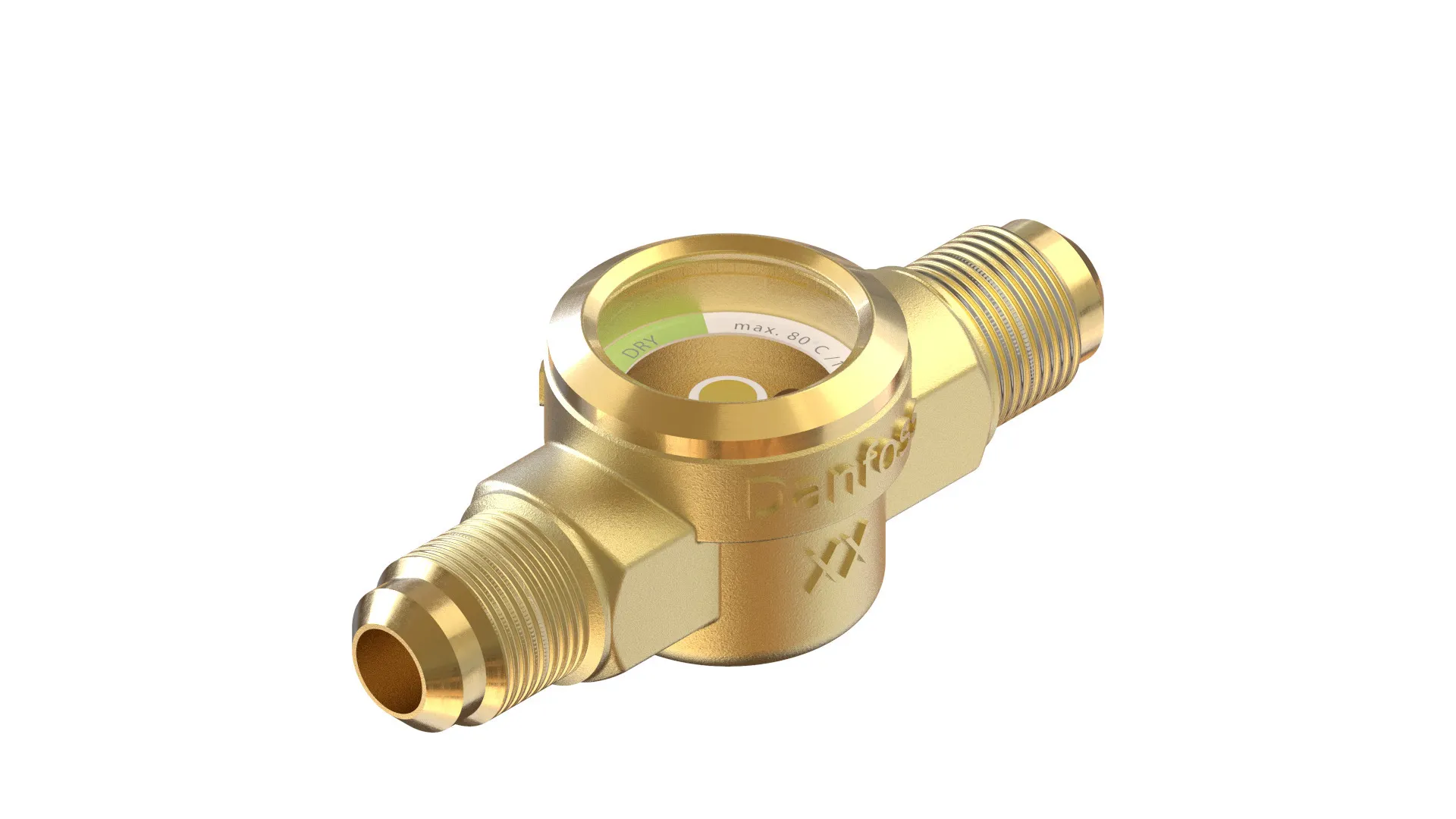

014L0080 Danfoss: Inlet connection type: Flare, Inlet size [mm]: 10.00, Outlet connection type: Flare, Outlet size [mm]: 10.00
Gross weight
0.178 Kilogram
Net weight
0.167 Kilogram
Volume
0.139 Liter
EAN
5702428818827
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Inlet connection type
Flare
Inlet Internal/External
External
Inlet size [in]
3/8 in
Inlet size [mm]
10 mm
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
No indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Outlet connection type
Flare
Outlet Internal/External
External
Outlet size [in]
3/8 in
Outlet size [mm]
10 mm
Packing format
Multi pack
Product accessories
Generic accessories
Product group
Sight glasses
Product Name Description
Sight glass
Quantity per packing format
25 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R134a,R22,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R744
SCIP dossier no.
525e07d8-f4a6-4108-b8f8-36090550941f
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 10 X
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B,R744
UL evaluated
Yes
Sight glass type SG and SGP
Sight glass Type SGP X, SGP I, SGP N, SGP RX, SGP RI, SGP RN, SGR, SG, SGN, SGRN
Sight Glass
Danfoss MD 033F4001.AH
Danfoss MD 033F4006
Danfoss MD 033F4010
Danfoss MD 033F4017.AD
UL SA6525
TSSA CRN 0F24203.5123467890TNY
Sight glass, SGP 10 I_014L0008, 014L0080
SGP sight glass without indicator
