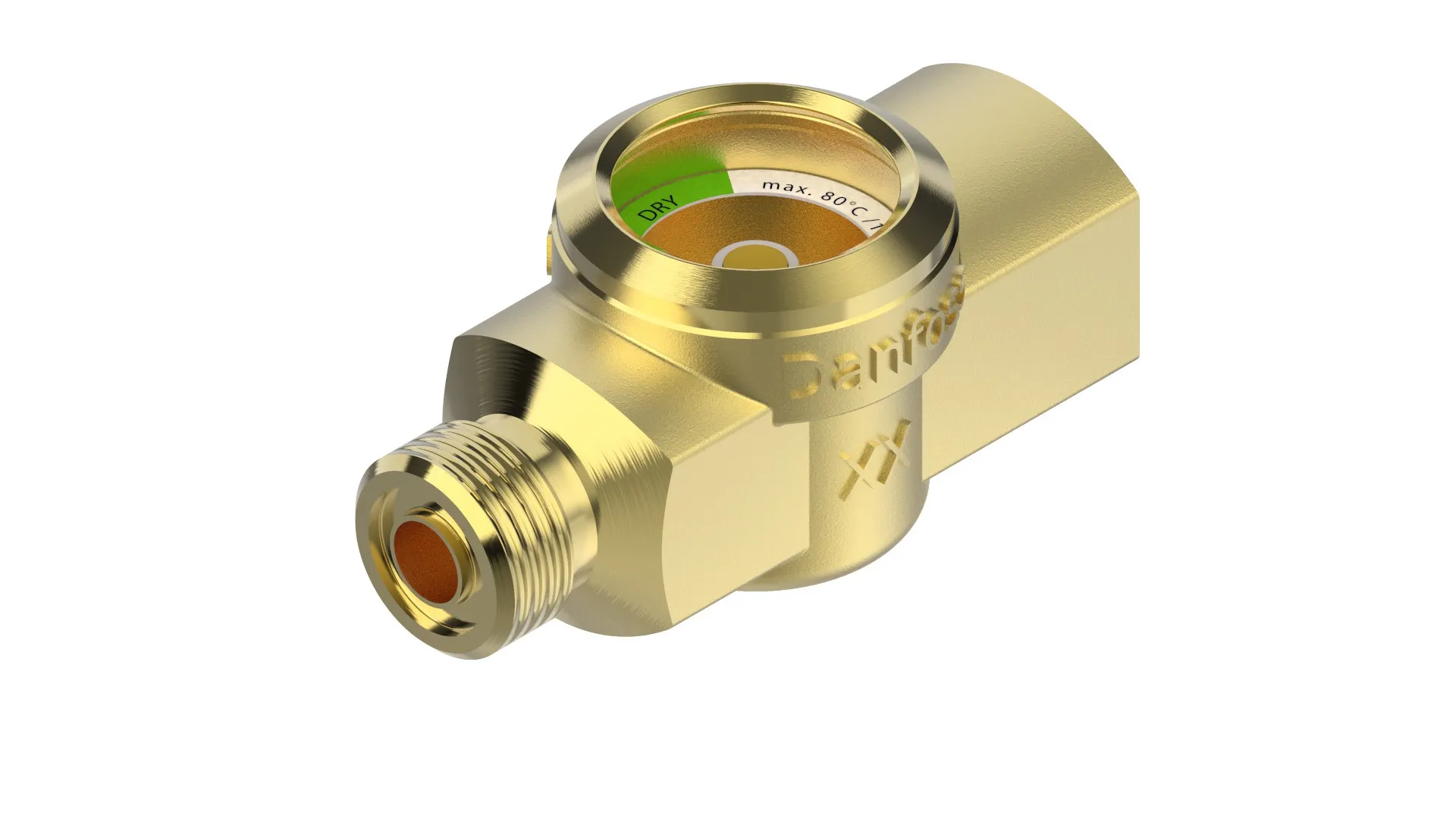

014L0091
Part Number: 014L0091
Product Information
Extended Description
014L0091 Danfoss: Inlet connection type: Face Seal, Outlet connection type: Face Seal
Gross weight
0.23 Kilogram
Net weight
0.182 Kilogram
Volume
0.139 Liter
EAN
5702428840309
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R22: 150 ppm
Green: max moist con@43 °C
R22: 250 ppm
Identical product
014L1011
Inlet connection type
Face seal
Inlet Internal/External
Internal
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
I indicator
Outlet connection type
Face seal
Outlet Internal/External
External
Outlet size [in]
3/8 in
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description
Sight glass
Quantity per packing format
24 pc
Refrigerants
R22
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 10 I
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R22
UL evaluated
Yes
Yellow: min moist con@25 °C
R22: 300 ppm
Yellow: min moist con@43 °C
R22: 500 ppm
