014L0173

Part Number: 014L0173
014L0173
Manufacturer
Danfoss
Part number
014L0173
Category

Product Information

Extended Description

014L0173 Danfoss: Inlet connection type: Flare, Inlet size [mm]: 12.00, Outlet connection type: Flare, Outlet size [mm]: 12.00
Gross weight
0.23 Kilogram
Net weight
0.201 Kilogram
Volume
0.139 Liter
EAN
5702428818902
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R134a: 30 ppm,R22: 30 ppm,R404A: 20 ppm,R407A: 29 ppm,R407C: 30 ppm,R407F: 30 ppm,R410A: 66 ppm,R448A: 28 ppm,R449A: 29 ppm,R450A: 23 ppm,R452A: 20 ppm,R507A: 15 ppm,R513A: 22 ppm
Green: max moist con@43 °C
R134a: 45 ppm,R22: 50 ppm,R404A: 25 ppm,R407A: 48 ppm,R407C: 60 ppm,R407F: 60 ppm,R410A: 135 ppm,R448A: 70 ppm,R449A: 53 ppm,R450A: 46 ppm,R452A: 30 ppm,R507A: 30 ppm,R513A: 22 ppm
Identical product
014L1128
Inlet connection type
Flare
Inlet Internal/External
Internal
Inlet size [in]
1/2 in
Inlet size [mm]
12 mm
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
N indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Other RoHS documentation
Saudi Arabia RoHS
Outlet connection type
Flare
Outlet Internal/External
External
Outlet size [in]
1/2 in
Outlet size [mm]
12 mm
Packing format
Multi pack
Product accessories
Generic accessories
Product group
Sight glasses

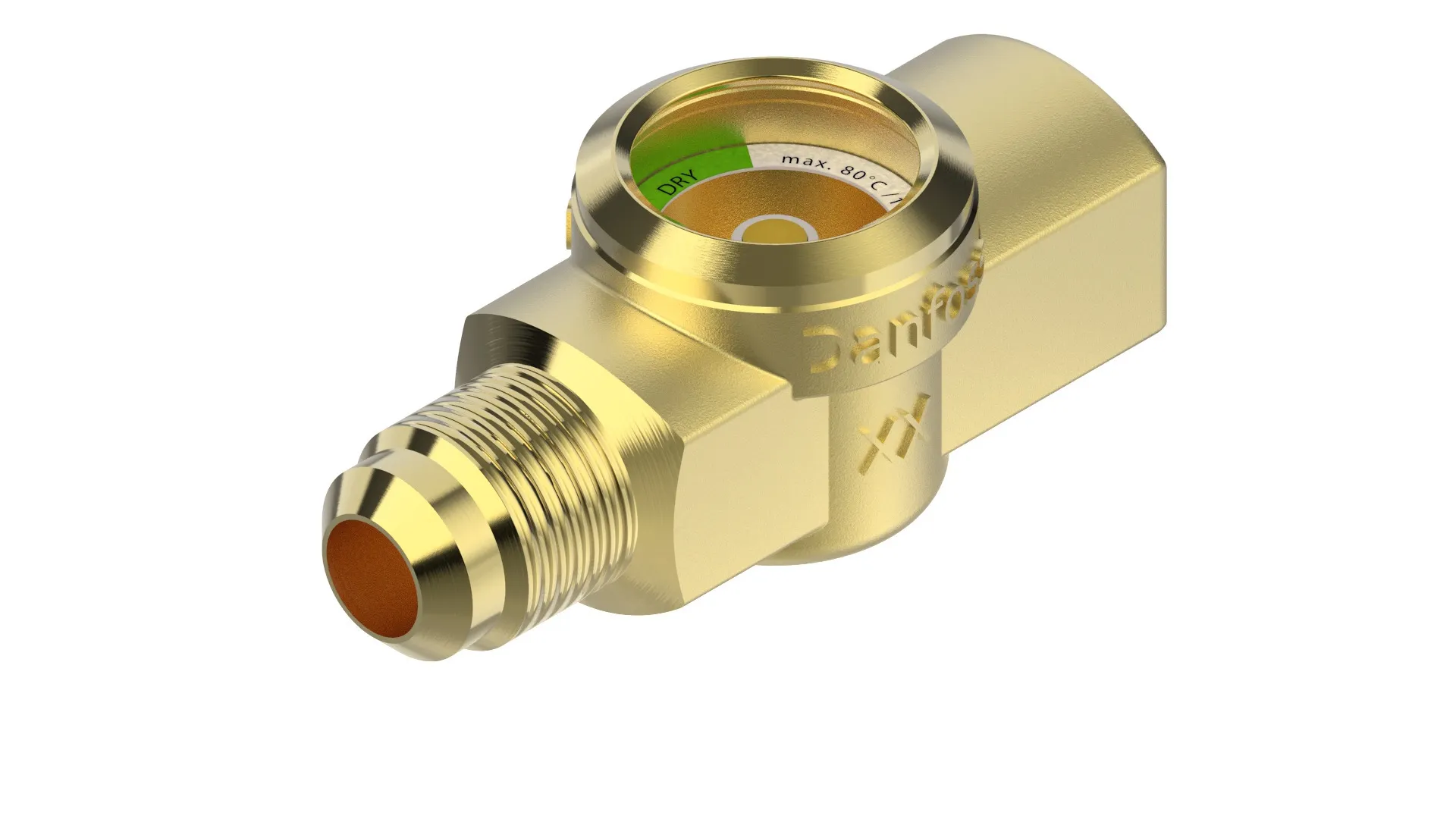

Product Name Description
Sight glass
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R134a,R22,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R744
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 12 N
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B,R744
UL evaluated
Yes
Yellow: min moist con@25 °C
R134a: 100 ppm,R22: 120 ppm,R404A: 70 ppm,R407A: 115 ppm,R407C: 140 ppm,R407F: 168 ppm,R410A: 266 ppm,R448A: 110 ppm,R449A: 105 ppm,R450A: 148 ppm,R452A: 79 ppm,R507A: 60 ppm,R513A: 75 ppm
Yellow: min moist con@43 °C
R134a: 170 ppm,R22: 200 ppm,R404A: 100 ppm,R407A: 192 ppm,R407C: 225 ppm,R407F: 240 ppm,R410A: 540 ppm,R448A: 227 ppm,R449A: 200 ppm,R450A: 245 ppm,R452A: 143 ppm,R507A: 110 ppm,R513A: 123 ppm
