014L0265
Part Number: 014L0265
Product Information
Extended Description

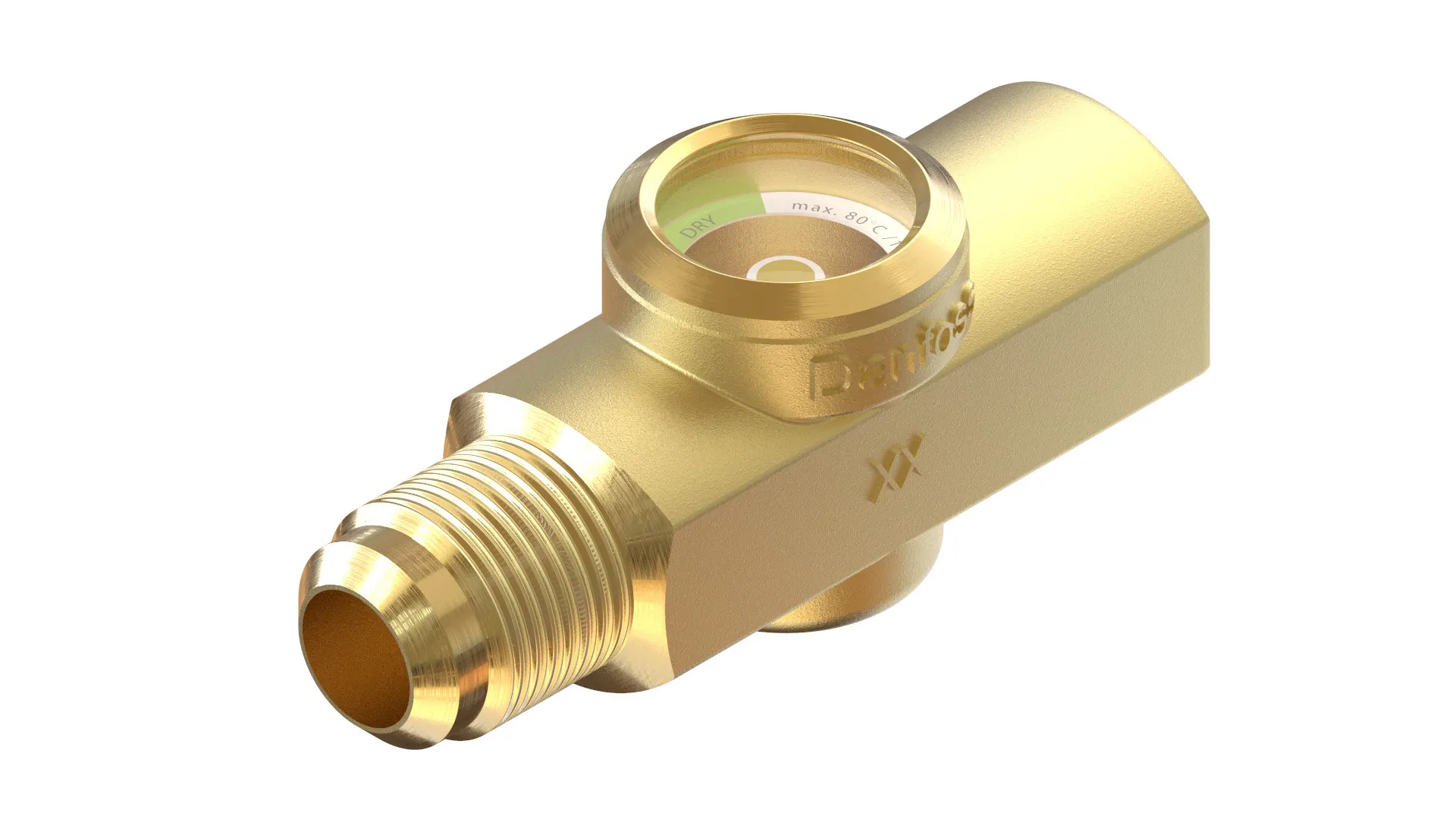

014L0265 Danfoss: Inlet connection type: Flare, Inlet size [mm]: 16.00, Outlet connection type: Flare, Outlet size [mm]: 16.00
Gross weight
0.39 Kilogram
Net weight
0.307 Kilogram
Volume
0.161 Liter
EAN
5702428843935
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R22: 150 ppm
Green: max moist con@43 °C
R22: 250 ppm
Identical product
014L0026
Inlet connection type
Flare
Inlet Internal/External
Internal
Inlet size [in]
5/8 in
Inlet size [mm]
16 mm
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
I indicator
Outlet connection type
Flare
Outlet Internal/External
External
Outlet size [in]
5/8 in
Outlet size [mm]
16 mm
Packing format
Industrial pack
Product accessories
Generic accessories
Product group
Sight glasses
Product Name Description
Sight glass
Quantity per packing format
70 pc
Refrigerants
R22
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 16 I
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R22
UL evaluated
Yes
Yellow: min moist con@25 °C
R22: 300 ppm
Yellow: min moist con@43 °C
R22: 500 ppm
