014L1064

Part Number: 014L1064
014L1064
Manufacturer
Danfoss
Part number
014L1064
Category

Product Information

Extended Description

014L1064 Danfoss: Max. Working Pressure [bar]: 52.0, Moisture indicator: I indicator, Connection type: M, Connection size: M24 x 1
Gross weight
0.086 Kilogram
Net weight
0.08 Kilogram
Volume
0.086 Liter
EAN
5702428866415
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
M24 x 1
Connection type
M
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Further information
Thread for socket unit
Green: max moist con@25 °C
R22: 150 ppm
Green: max moist con@43 °C
R22: 250 ppm
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
I indicator
Other RoHS documentation
Saudi Arabia RoHS
Packing format
Multi pack
Parts included
Gasket
Product accessories
Sight glass accessories
Product group
Sight glasses
Product Name Description

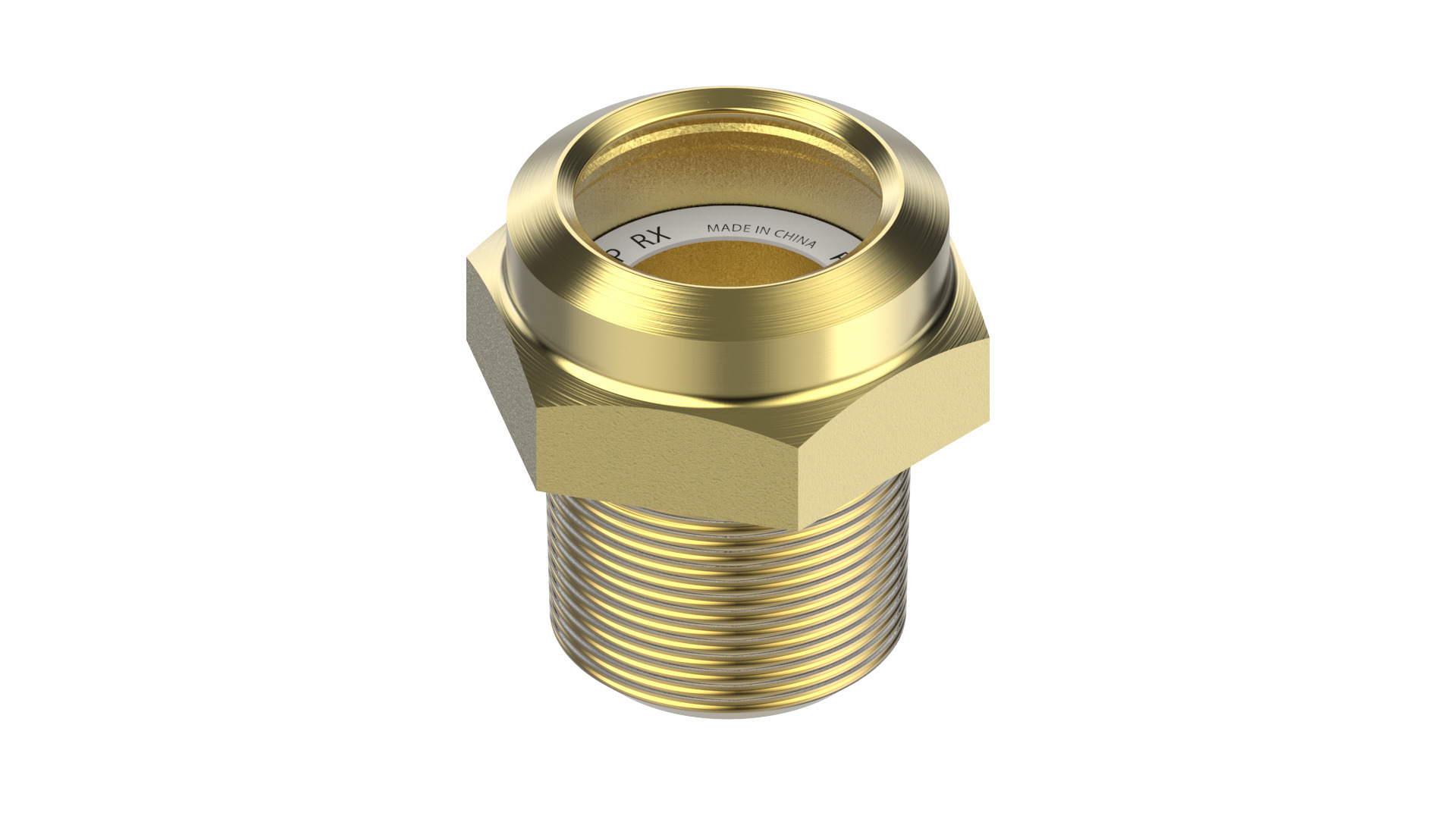

Sight glass socket
Quantity per packing format
19 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R22
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
SGS saddle application
M24 x 1
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 24 RI
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R22
UL evaluated
Yes
Yellow: min moist con@25 °C
R22: 300 ppm
Yellow: min moist con@43 °C
R22: 500 ppm
Sight glass type SG and SGP Sight glass Type SGP X, SGP I, SGP N, SGP RX, SGP RI, SGP RN, SGR, SG, SGN, SGRN Sight Glass Danfoss MD 033F4001.AH Danfoss MD 033F4006 Danfoss MD 033F4010 Danfoss MD 033F4017.AD UL SA6525 TSSA CRN 0F24203.5123467890TNY Sight glass socket, SGP 1/2 RX_014L0002 SGP RX sight glass, socket type without indicator SGRI+ sight glass, socket connection for saddle mounting
