014L1130
Part Number: 014L1130
Product Information
Extended Description
014L1130 Danfoss: Inlet connection type: Solder, ODF, Inlet size [mm]: 12.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 12.00
Gross weight
0.207 Kilogram
Net weight
0.165 Kilogram
Volume
0.602 Liter
EAN
5702428839013
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R1234ze(E): 26 ppm,R1270: 16 ppm,R134a: 30 ppm,R22: 30 ppm,R32: 64 ppm,R404A: 20 ppm,R407A: 29 ppm,R407C: 30 ppm,R407F: 30 ppm,R410A: 66 ppm,R448A: 28 ppm,R449A: 29 ppm,R450A: 23 ppm,R452A: 20 ppm,R454B: 29 ppm,R507A: 15 ppm,R513A: 22 ppm
Green: max moist con@43 °C
R1234ze(E): 28 ppm,R1270: 29 ppm,R134a: 45 ppm,R22: 50 ppm,R32: 116 ppm,R404A: 25 ppm,R407A: 48 ppm,R407C: 60 ppm,R407F: 60 ppm,R410A: 135 ppm,R448A: 70 ppm,R449A: 53 ppm,R450A: 46 ppm,R452A: 30 ppm,R454B: 58 ppm,R507A: 30 ppm,R513A: 22 ppm
Identical product
014L0193
Ignition source assessment
Yes
Inlet connection type
Solder, ODF
Inlet size [mm]
12 mm
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
N indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Outlet connection type
Solder, ODF
Outlet size [mm]
12 mm
Packing format
Industrial pack
Product accessories
No
Product group
Sight glasses

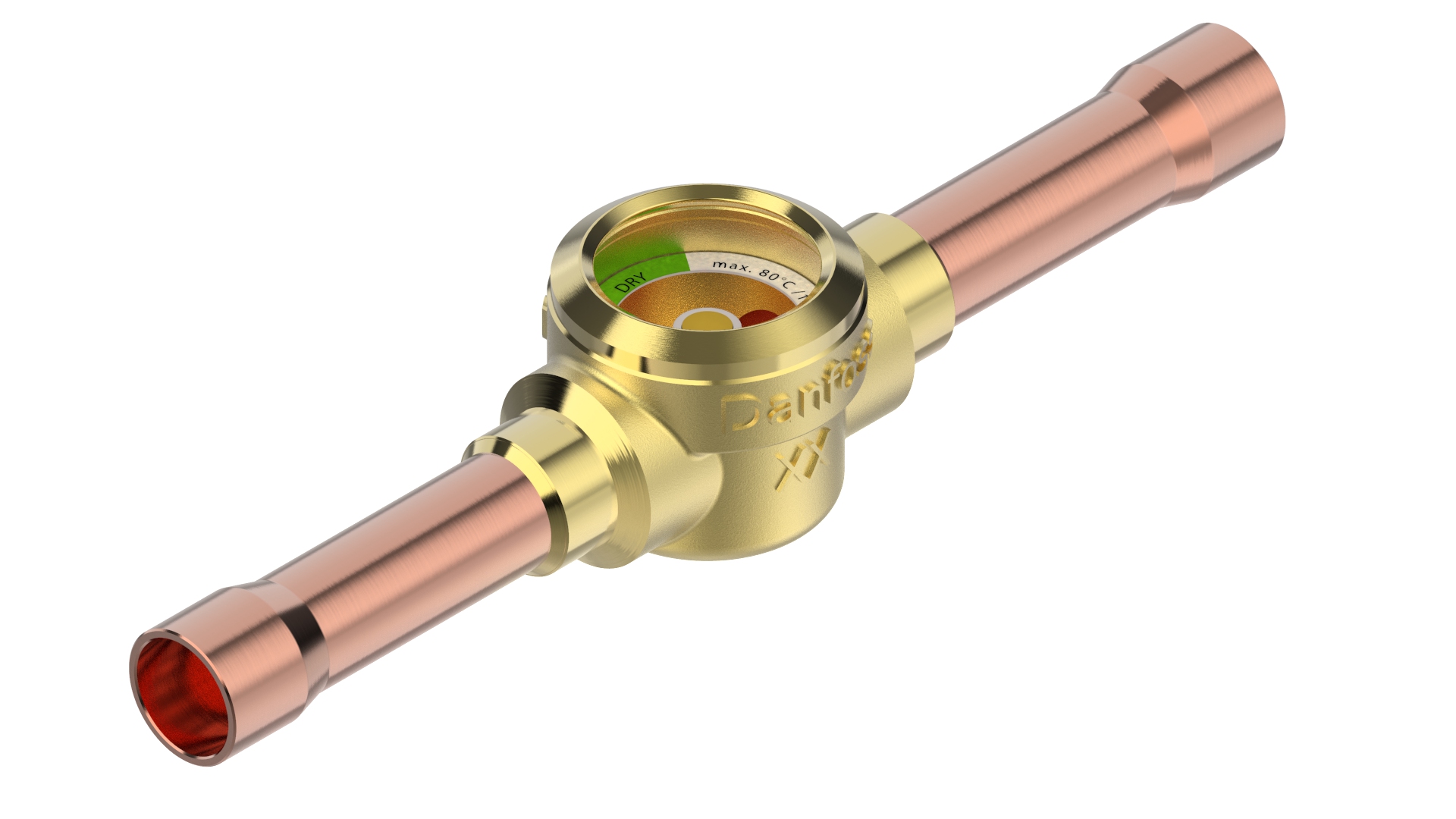

Product Name Description
Sight glass
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R1270,R134a,R22,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R744
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 12s N
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B,R744
UL evaluated
Yes
Yellow: min moist con@25 °C
R1234ze(E): 132 ppm,R1270: 62 ppm,R134a: 100 ppm,R22: 120 ppm,R32: 289 ppm,R404A: 70 ppm,R407A: 115 ppm,R407C: 140 ppm,R407F: 168 ppm,R410A: 266 ppm,R448A: 110 ppm,R449A: 105 ppm,R450A: 148 ppm,R452A: 79 ppm,R454B: 161 ppm,R507A: 60 ppm,R513A: 75 ppm
Yellow: min moist con@43 °C
R1234ze(E): 165 ppm,R1270: 115 ppm,R134a: 170 ppm,R22: 200 ppm,R32: 459 ppm,R404A: 100 ppm,R407A: 192 ppm,R407C: 225 ppm,R407F: 240 ppm,R410A: 540 ppm,R448A: 227 ppm,R449A: 200 ppm,R450A: 245 ppm,R452A: 143 ppm,R454B: 250 ppm,R507A: 110 ppm,R513A: 123 ppm
