014L1207
Part Number: 014L1207
Product Information
Extended Description
014L1207 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
Gross weight
0.316 Kilogram
Net weight
0.297 Kilogram
Volume
0.245 Liter
EAN
5702428839211
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Ignition source assessment
Yes
Inlet connection type
Solder, ODF
Inlet size [in]
7/8 in
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
No indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Outlet connection type
Solder, ODF
Outlet size [in]
7/8 in
Packing format
Multi pack
Product accessories
No
Product group
Sight glasses
Product Name Description

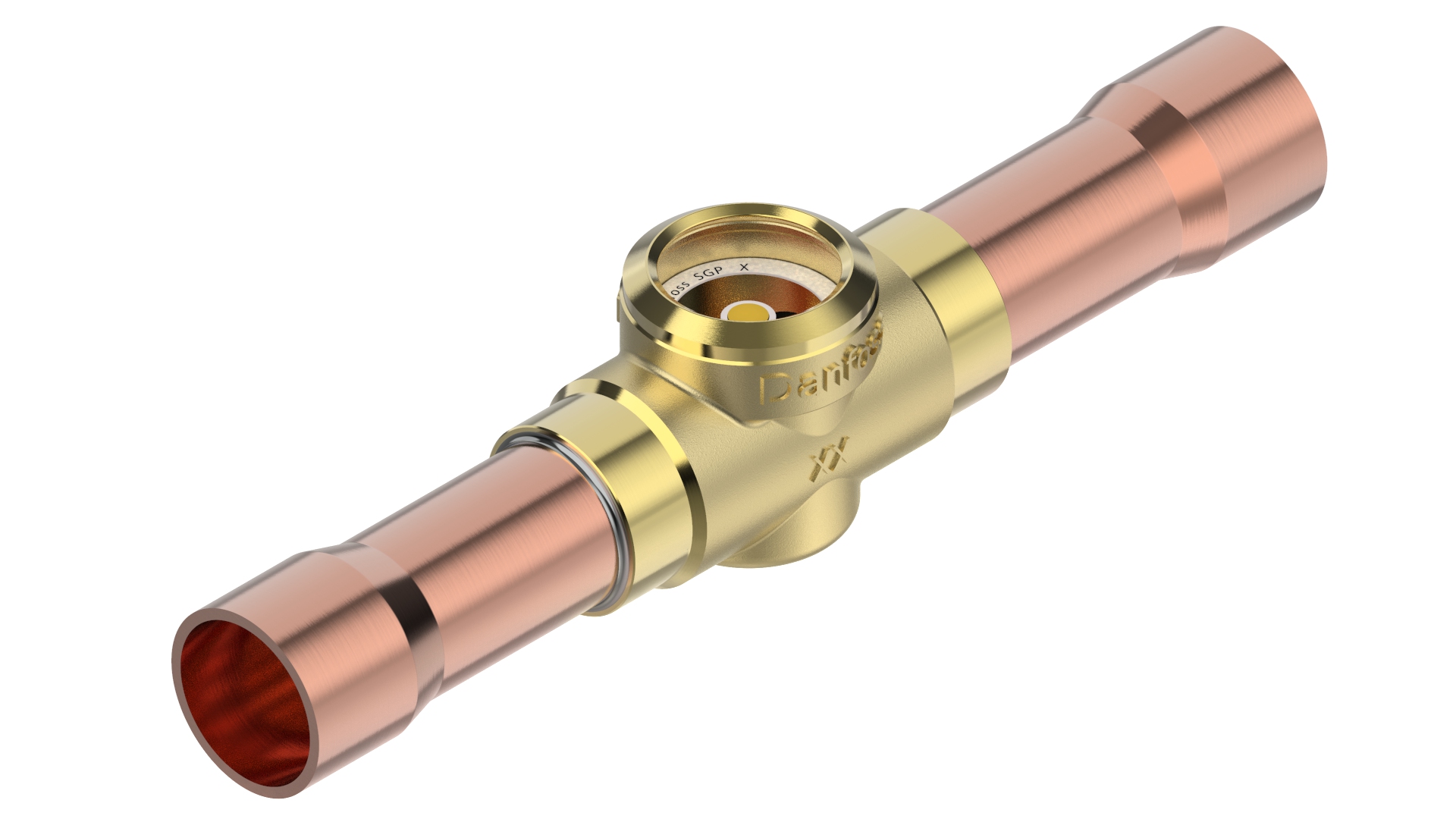

Sight glass
Quantity per packing format
28 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R1270,R134a,R22,R290,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R600,R600a,R744
SCIP dossier no.
525e07d8-f4a6-4108-b8f8-36090550941f
Serviceable
No
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 22s X
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B,R744
UL evaluated
Yes
