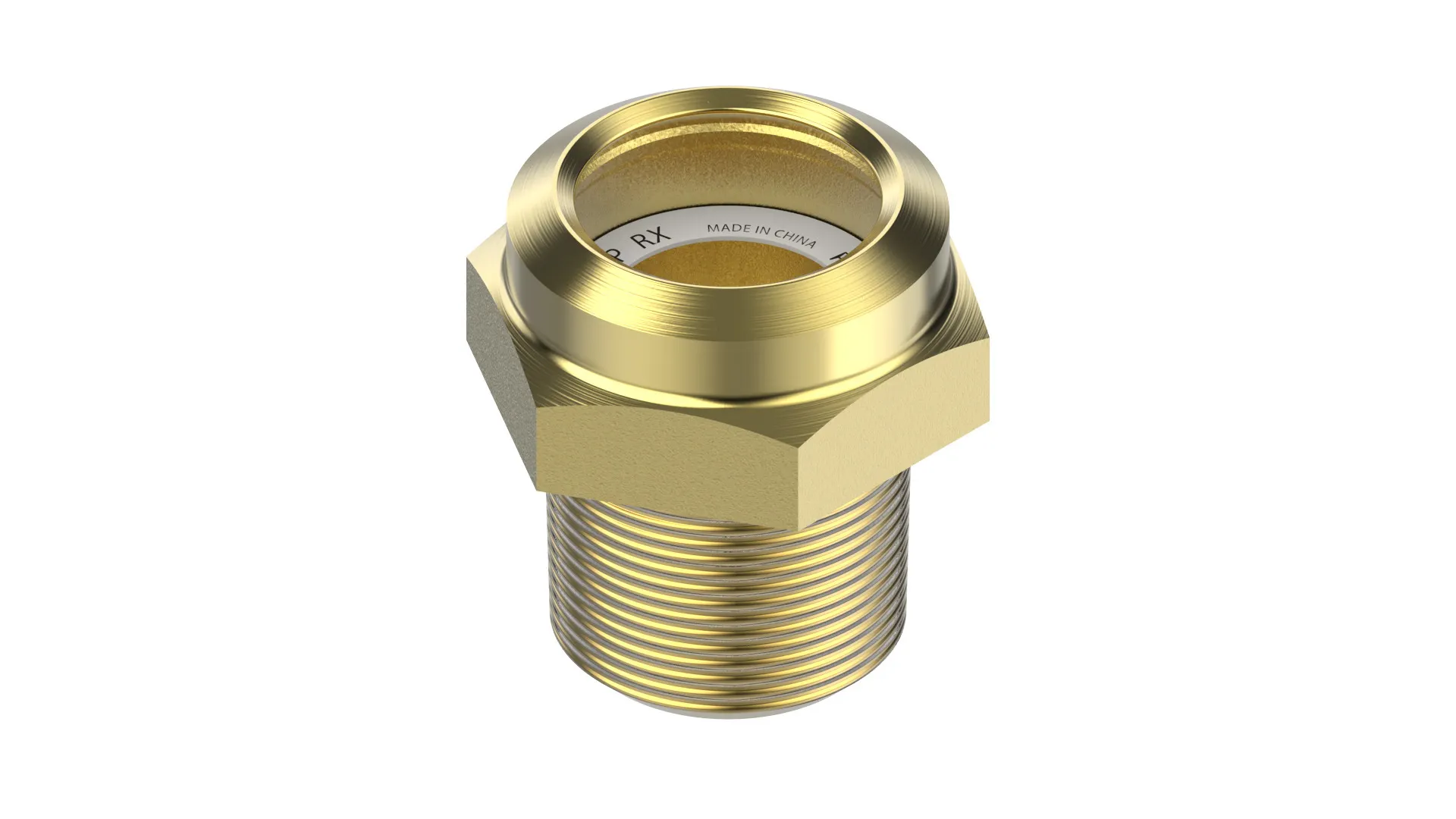

014L1601

Part Number: 014L1601
014L1601
Manufacturer
Danfoss
Part number
014L1601
Category

Product Information

Extended Description

014L1601 Danfoss: Max. Working Pressure [bar]: 52.0, Moisture indicator: N indicator, Connection type: M, Connection size: M20 x 1.5
Gross weight
0.068 Kilogram
Net weight
0.063 Kilogram
Volume
0.086 Liter
EAN
5702428838665
Approval
C UL US LISTED,EAC
Approval file name
REF. LIQUID INDICATOR 76H4
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection size
M20 x 1.5
Connection type
M
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Green: max moist con@25 °C
R134a: 30 ppm,R22: 30 ppm,R404A: 20 ppm,R407A: 29 ppm,R407C: 30 ppm,R407F: 30 ppm,R410A: 66 ppm,R448A: 28 ppm,R449A: 29 ppm,R450A: 23 ppm,R452A: 20 ppm,R507A: 15 ppm,R513A: 22 ppm
Green: max moist con@43 °C
R134a: 45 ppm,R22: 50 ppm,R404A: 25 ppm,R407A: 48 ppm,R407C: 60 ppm,R407F: 60 ppm,R410A: 135 ppm,R448A: 70 ppm,R449A: 53 ppm,R450A: 46 ppm,R452A: 30 ppm,R507A: 30 ppm,R513A: 22 ppm
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Moisture indicator
N indicator
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B
Packing format
Multi pack
Product accessories
Sight glass accessories
Product group
Sight glasses
Product Name Description
Sight glass socket
Quantity per packing format
19 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R134a,R22,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R452B,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R744
SCIP dossier no.
323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable
No
SGS saddle application
M20 x 1.5
Temperature range [°C] [max]
80 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
175 °F
Temperature range [°F] [min]
-58 °F
Type
SGP 20 RN
UK RoHS compliance
Out of scope
UL approval file name
REF. LIQUID INDICATOR 76H4
UL approved refrigerants
R1233zd(E),R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R450A,R452A,R463A,R507A,R513A,R515B,R744
UL evaluated
Yes
Yellow: min moist con@25 °C
R134a: 100 ppm,R22: 120 ppm,R404A: 70 ppm,R407A: 115 ppm,R407C: 140 ppm,R407F: 168 ppm,R410A: 266 ppm,R448A: 110 ppm,R449A: 105 ppm,R450A: 148 ppm,R452A: 79 ppm,R507A: 60 ppm,R513A: 75 ppm
Yellow: min moist con@43 °C
R134a: 170 ppm,R22: 200 ppm,R404A: 100 ppm,R407A: 192 ppm,R407C: 225 ppm,R407F: 240 ppm,R410A: 540 ppm,R448A: 227 ppm,R449A: 200 ppm,R450A: 245 ppm,R452A: 143 ppm,R507A: 110 ppm,R513A: 123 ppm
Sight glass type SG and SGP Sight glass Type SGP X, SGP I, SGP N, SGP RX, SGP RI, SGP RN, SGR, SG, SGN, SGRN Sight Glass Danfoss MD 033F4001.AH Danfoss MD 033F4006 Danfoss MD 033F4010 Danfoss MD 033F4017.AD UL SA6525 TSSA CRN 0F24203.5123467890TNY Sight glass socket, SGP 1/2 RX_014L0002 SGP RX sight glass, socket type without indicator SGRI+ sight glass, socket connection for saddle mounting
