015D0005
Part Number: 015D0005
Product Information
Extended Description
015D0005 Danfoss: Inlet connection type: Solder, ODF, Max. Working Pressure [bar]: 35.0
Gross weight
0.998 Kilogram
Net weight
0.924 Kilogram
Volume
1.151 Liter
EAN
5702422040460
Approval
EAC,LLC CDC TYSK,RoHS,RoHS China
China RoHS compliance
Yes
Contain batteries
No
EU RoHS compliance
Out of scope
Inlet connection type
Solder, ODF
Inlet size [mm]
18 mm
Lubricants compatibility
Oilfree applications
Max. test pressure [bar]
52 bar
Max. test pressure [psig]
755 psig
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
510 psig
Medium temperature range [°C] [max]
120 °C
Medium temperature range [°C] [min]
-60 °C
Medium temperature range [°F] [max]
248 °F
Medium temperature range [°F] [min]
-76 °F
Oil free refrigerants
R513A
Outlet connection type
Solder, ODF
Outlet size [mm]
12 mm
Packing format
Multi pack
Product accessories
No
Product group
Heat exchangers
Product Name Description

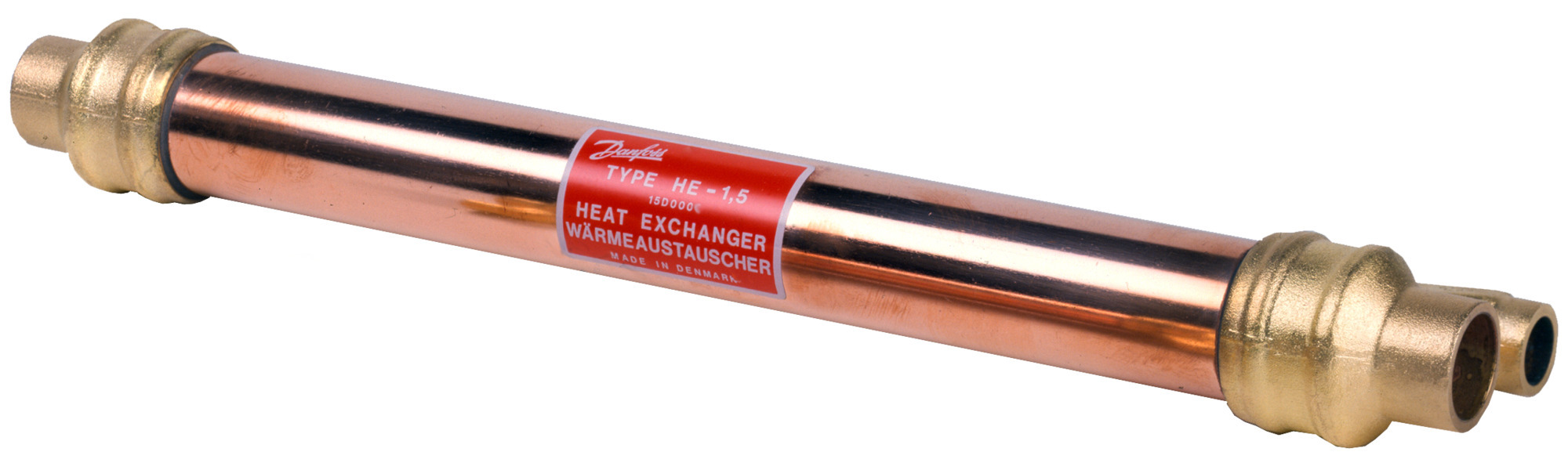

Tube-in-tube heat exchanger
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1270,R134a,R22,R290,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R448A,R449A,R449B,R450A,R452A,R454A,R454C,R455A,R507A,R513A,R600,R600a
SCIP dossier no.
077009ff-72e9-459b-9369-dc4f1d0f0df1
SCIP dossier product name
HE 0.5 - 8.0
Serviceable
No
Type
HE 1.5
UK RoHS compliance
Out of scope
