016D1002
Part Number: 016D1002
Product Information
Gross weight
1.056 Kilogram
Net weight
0.957 Kilogram
Volume
2.35 Liter
EAN
5702422035145
Cap. tube length fraction [in]
78 47/64 in
Capillary tube length [mm]
2000 mm
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Out of scope
Max. sensor temperature [=C2=B0C]
57 =C2=B0C
Max. sensor temperature [=C2=B0F]
134.6 =C2=B0F
Packing format
Multi pack
Parts included
Control element,Spring housing
Parts Program name
WVTS
Product accessories
Generic accessories
Product group
Water regulating valves
Product Name Description

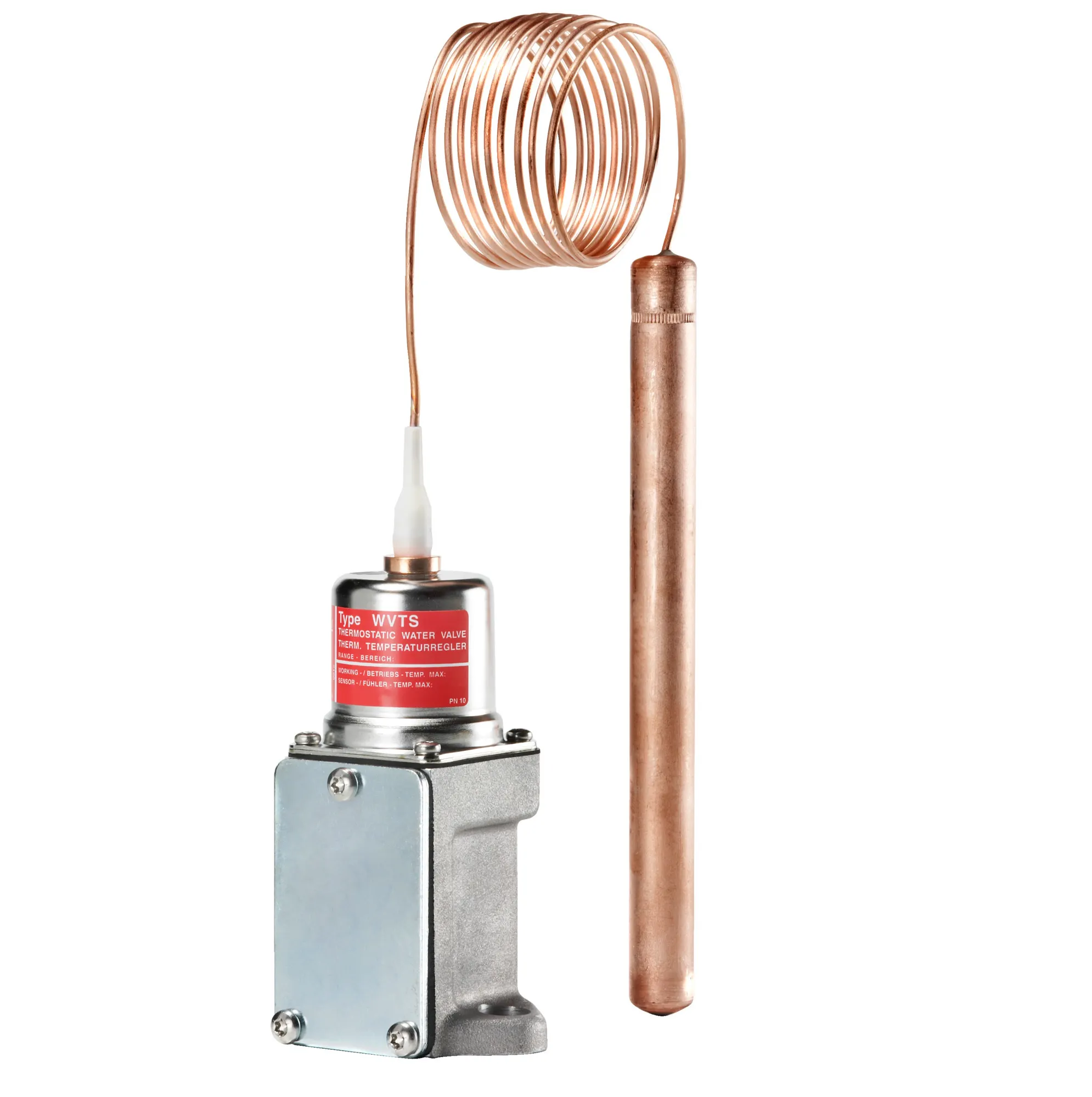

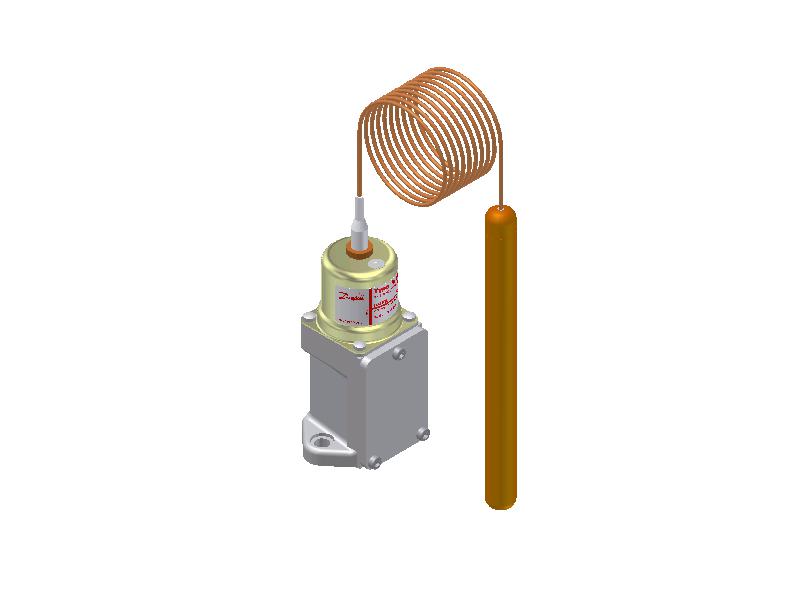

Pilot for water reg. valve
Quantity per packing format
8 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f7d782f1-04df-4c40-bfe2-ea3a06dce79f
SCIP dossier product name
WVS/WVTS
Serviceable
Water valve spare parts
Temperature range [=C2=B0C] [max]
30 =C2=B0C
Temperature range [=C2=B0C] [min]
0 =C2=B0C
Temperature range [=C2=B0F] [max]
86 =C2=B0F
Temperature range [=C2=B0F] [min]
32 =C2=B0F
Type
WVTS
UK RoHS compliance
Out of scope
Used for product
WVTS 100,WVTS 32,WVTS 40,WVTS 50,WVTS 65,WVTS 80
Pressure operated water valve, types WVFX and WVS
Water regulating valves type WVTS
ELIMINATOR=C2=AE Hermetic filter drier Types DCL and DML
High Runner Filter Drier Data Sheet
Water regulating valves
Pilot element 2000 mm for WVTS_016D1002, 016D1003, 016D1004
Pilot unit for WVTS
Pilot unit for WVTS
