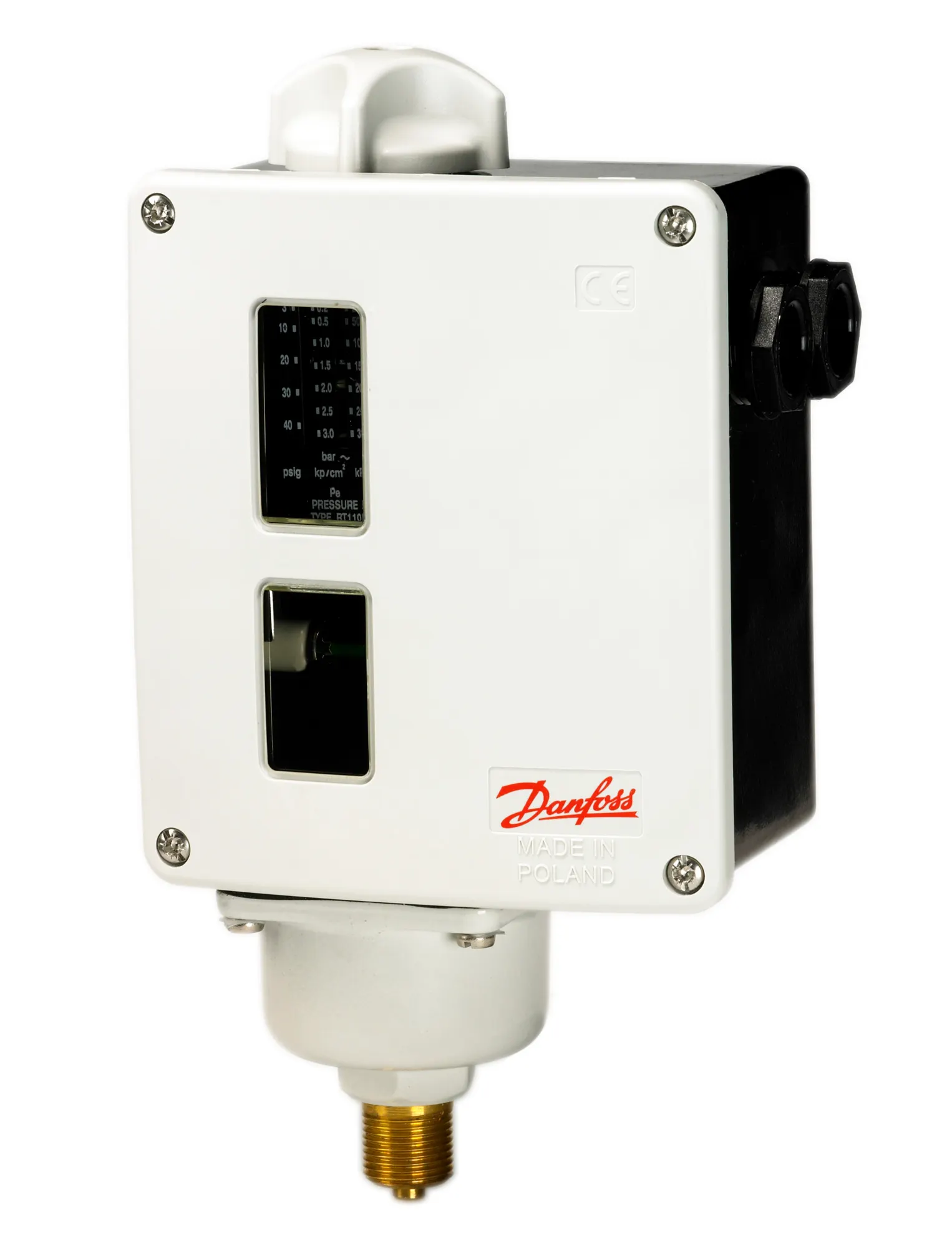

017-141866

Part Number: 017-141866
017-141866
Manufacturer
Danfoss
Part number
017-141866
Category

Product Information

Extended Description

017-141866 Danfoss: Regulation range [bar] Pe: -1.00 - 0.00, Differential [bar]: 0.09 - 0.40, Contact function: SPDT, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 7.0
Gross weight
1.004 Kilogram
Net weight
0.894 Kilogram
Volume
3.748 Liter
EAN
5702423136186
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Differential [bar] [max]
0.4 bar
Differential [bar] [min]
0.09 bar
Differential [psi] [max]
5.8 psi
Differential [psi] [min]
1.3 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Identical product
017-521566
In scope of WEEE
Yes
Max. test pressure [bar] Pe
8 bar
Max. test pressure [psig]
116 psig
Max. Working Pressure [bar]
7 bar
Max. Working Pressure [psig]
100 psig
Packing format
Industrial pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
6 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range
29.5 inHg - 0 psig
Regulation range [bar] Pe [max]
0 bar
Regulation range [bar] Pe [min]
-1 bar
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT121
UK RoHS compliance
Yes
Pressure switch Type RT Pressure switch Type RT, Spare parts and accessories Pressure switch, types RT 5, RT 110, RT 112, RT 116, RT 117, RT 121, RT 200 Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB NKK TA24042M Danfoss UK 060-9690.AA RT110 Pressure switch, G3/8, no code
