017-436966
Part Number: 017-436966
Product Information
Extended Description

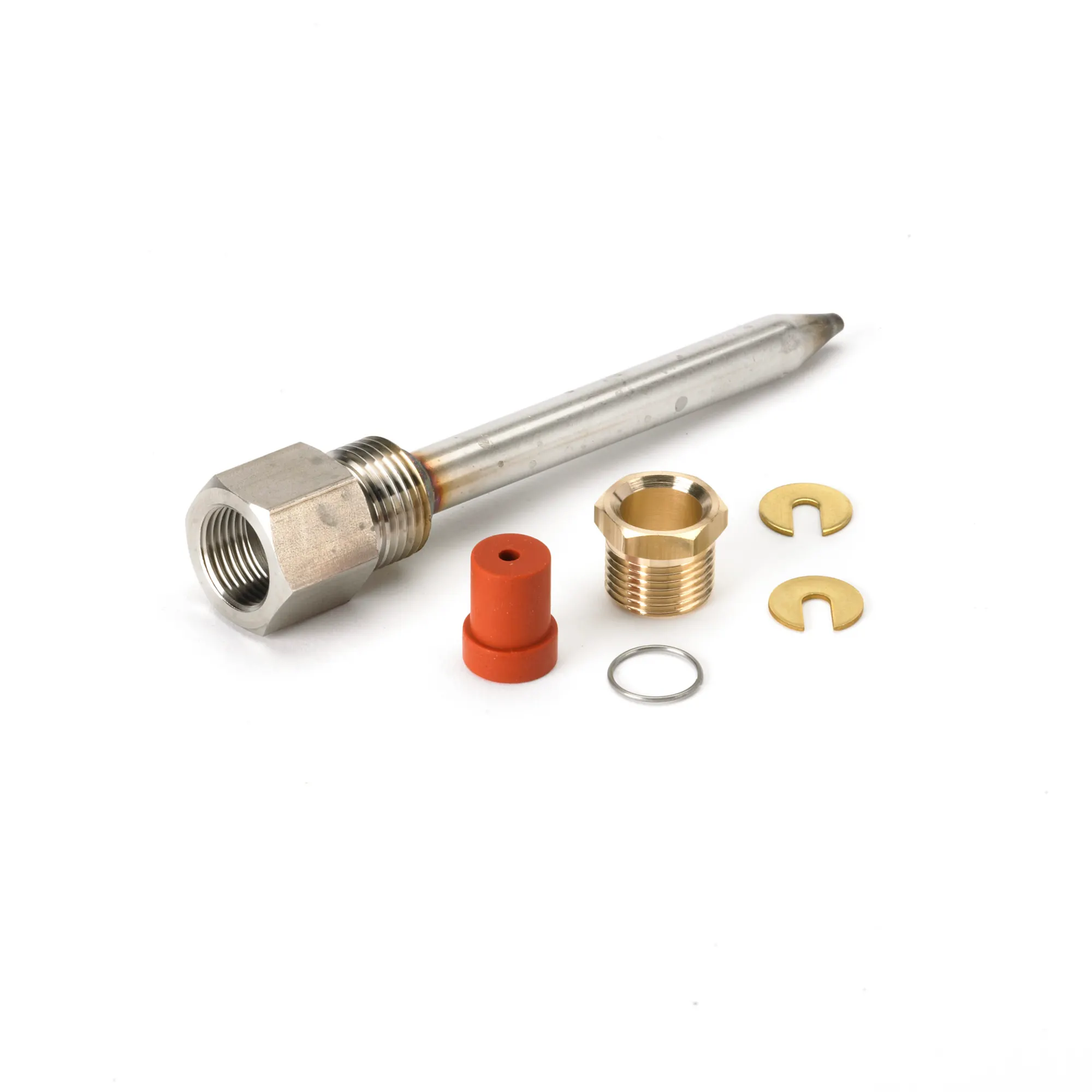

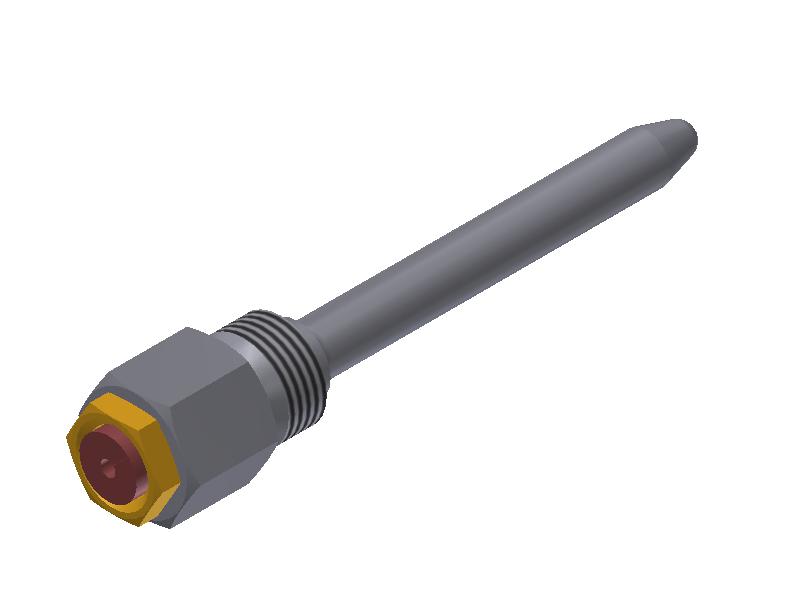

017-436966 Danfoss: Sensor Pocket KP/RT Stainless 112mm G ½", Packing format: Multi pack, Quantity per packing format: 10
Gross weight
0.108 Kilogram
Net weight
0.106 Kilogram
Volume
0.084 Liter
EAN
5702428021012
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Out of scope
Ext. sensor pocket Ø [mm]
10.7 mm
Int. sensor pocket Ø [mm]
9.5 mm
Packing format
Multi pack
Parts included
Gasket set
Pressure inlet conn. size [in]
1/2
Pressure inlet conn. std.
ISO 228-1
Pressure inlet conn. type
G
Pressure inlet Internal/Extern
External
Product group
Switches accessories
Product Name Description
Sensor pocket
Quantity per packing format
10 pc
REACH Candidate List substances
No
Sensor pocket conn. length[mm]
22 mm
Sensor pocket length min. [in]
3 13/16 in
Sensor pocket length min. [mm]
97 mm
Sensor pocket material
Stainless steel
Type
Accessory
Type designation
Sensor pocket
UK RoHS compliance
Out of scope
Used for product
KP,RT
Pressure switch and thermostat type KP and KPI
Pressure switch Differential pressure switch and Thermostat RT-E
Thermostat Type KP, Spare parts and accessories
Thermostat type RT
F017-_0026_PressureSwitches_Spareparts_436966
Sensor pocket
Sensor pocket, brass, for KP and RT Thermostats
Sensor pocket
Sensor pocket
