017-511766

Part Number: 017-511766
017-511766
Manufacturer
Danfoss
Part number
017-511766
Category

Product Information

Extended Description

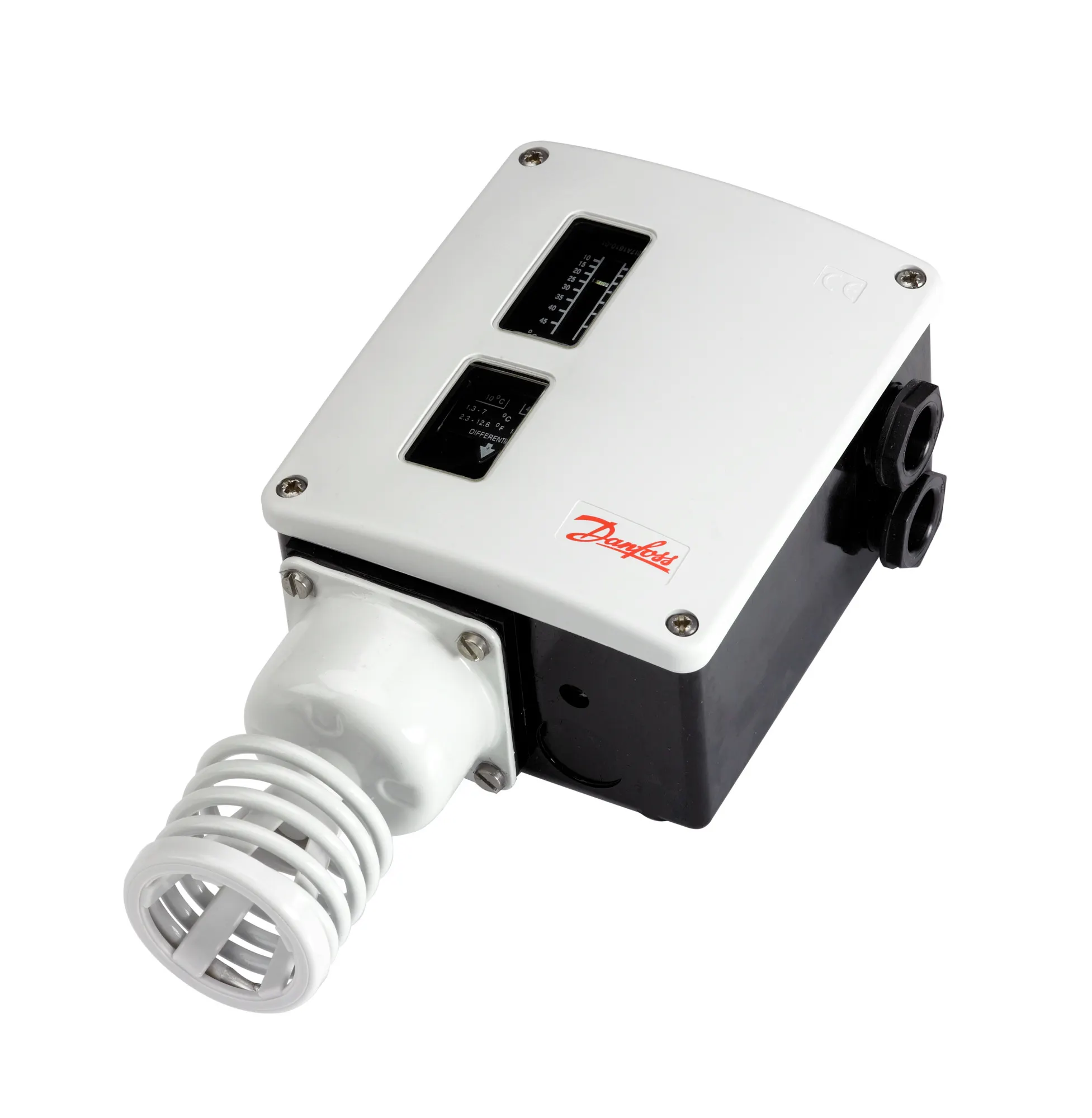

017-511766 Danfoss: Temperature range [°C]: -50 - -15, Reset function: Auto, Contact function: SPDT, Sensor type: Room sensor, Enclosure rating IP: IP66
Gross weight
0.908 Kilogram
Net weight
0.796 Kilogram
Volume
2.685 Liter
EAN
5702428519199
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
Charge type
State Vapour
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. @ Max. range setting[°C] [max]
5 °C
Diff. @ Max. range setting[°C] [min]
1.5 °C
Diff. @ Min. range setting[°C] [max]
7 °C
Diff. @ Min. range setting[°C] [min]
2.2 °C
Differential type
Adjustable
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
100 °C
Max. sensor temperature [°F]
212 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor type
Room sensor
Serviceable
Contact systems
Temperature range [°C] [max]
-15 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
5 °F
Temperature range [°F] [min]
-58 °F
Type
RT17
UK RoHS compliance
Yes
017-403066
Spare part, RT, SPDT switch
017-424066
Spare part, RT, SPDT switch, gold plated
017-425166
Switches accessories, Seal Screw For RT Cap/Cover
017-436066
Switches accessories, Protective Cap For RT
017-436166
Switches accessories, Cover With Pane For RT
017-436266
Switches accessories, Cover Without Pane For RT
017-436366
Switches accessories, Adjusting Knop For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
Switches and thermostats - Industrial Refrigeration product group catalogue Thermostat type RT Thermostat, Differential thermostat type RT Thermostat RT 4, RT 11, RT 17, RT 34 Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB RINA ELE086320XG-004 Danfoss UK 060-9690.AA RT temperature Switch with room sensor F017-_0021_RT_509966
