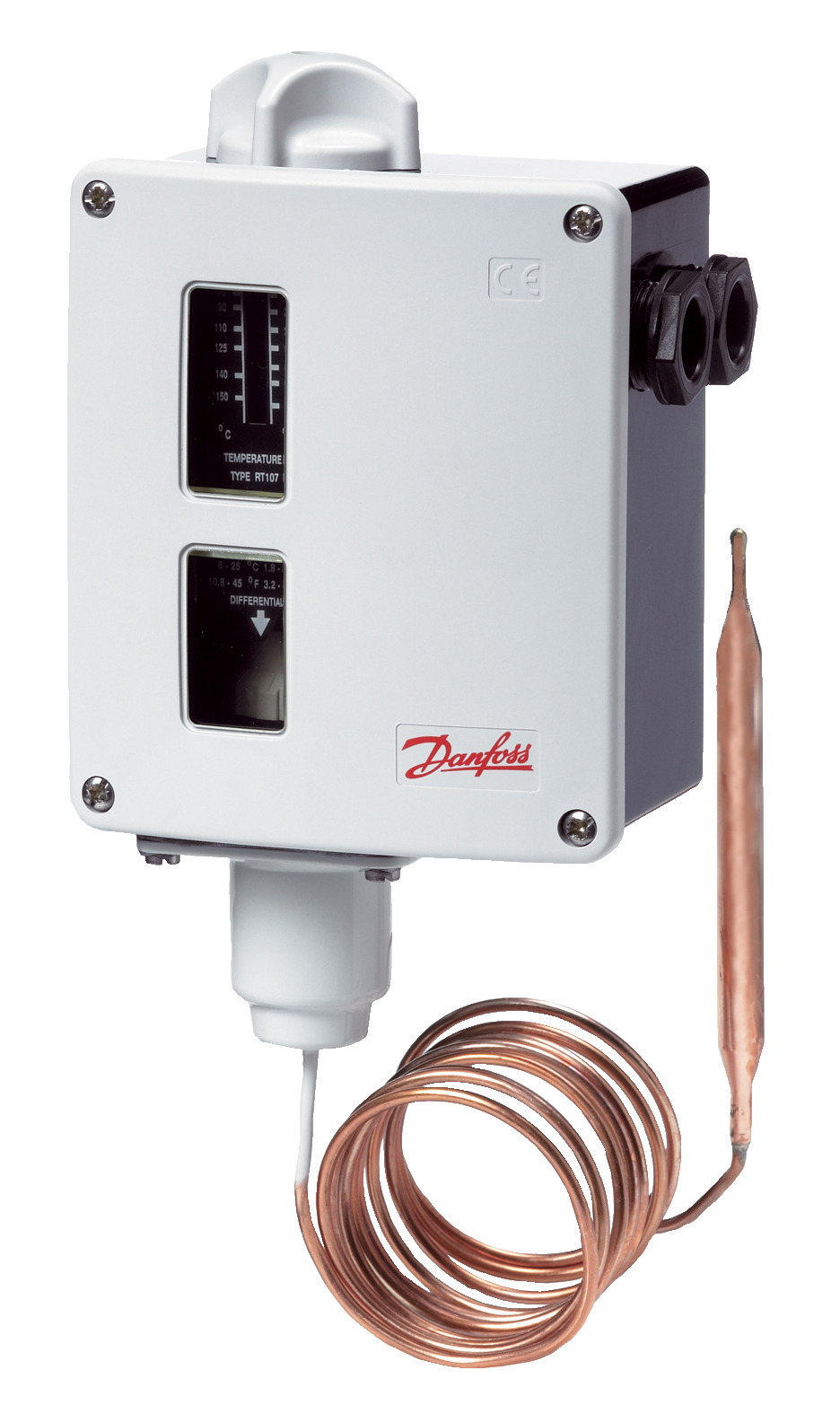

017-514566
Part Number: 017-514566
Product Information
Extended Description
017-514566 Danfoss: Temperature range [°C]: 70 - 150, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 10000, Enclosure rating IP: IP66
Gross weight
1.68 Kilogram
Net weight
1.568 Kilogram
Volume
4.643 Liter
EAN
5702423120369
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,CMIM,DNV,EAC,GL,KR,LLC CDC EURO-TYSK,LR,LVD,NKK,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
393 11/16 in
Capillary tube length [mm]
10000 mm
CE evaluated
Yes
Charge type
Partial
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. @ Max. range setting[°C] [max]
8 °C
Diff. @ Max. range setting[°C] [min]
1.8 °C
Diff. @ Min. range setting[°C] [max]
25 °C
Diff. @ Min. range setting[°C] [min]
6 °C
Differential type
Adjustable
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
215 °C
Max. sensor temperature [°F]
419 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor size (Ø x L) [in]
3/8 x 4 1/4 in
Sensor size (Ø x L) [mm]
9.5 x 110 mm
Sensor type
Remote bulb
Serviceable
Contact systems
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
70 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
158 °F
Type
RT107
UK RoHS compliance
Yes
017-403066
Spare part, RT, SPDT switch
017-424066
Spare part, RT, SPDT switch, gold plated
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
017-422066
Generic accessories, Tube Gland For RT
017-425166
Switches accessories, Seal Screw For RT Cap/Cover
017-436066
Switches accessories, Protective Cap For RT
017-436166
Switches accessories, Cover With Pane For RT
017-436266
Switches accessories, Cover Without Pane For RT
017-436366
Switches accessories, Adjusting Knop For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
Thermostat type RT
Thermostat, types RT 107, RT 108, RT 120, RT 123, RT 124
Danfoss CCC 2024010305641306
Danfoss EU 060-9650AF
Pressure switches & Thermostats
Danfoss MD 017R9607.AC
Danfoss MD 060-9639.AB
DNV TAA00000Y8 Rev. 1
KR HMB 17529-AE004
LR21366305TA
NKK TA24041M
RINA ELE086320XG-004
RT 107 Temperature switch
RT107 Thermostat M/9
RT107 Thermostat M/9
