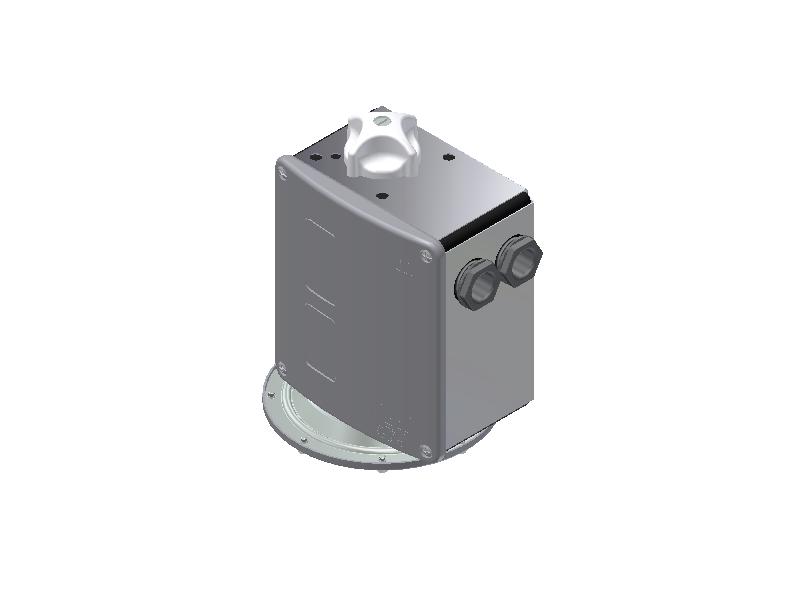

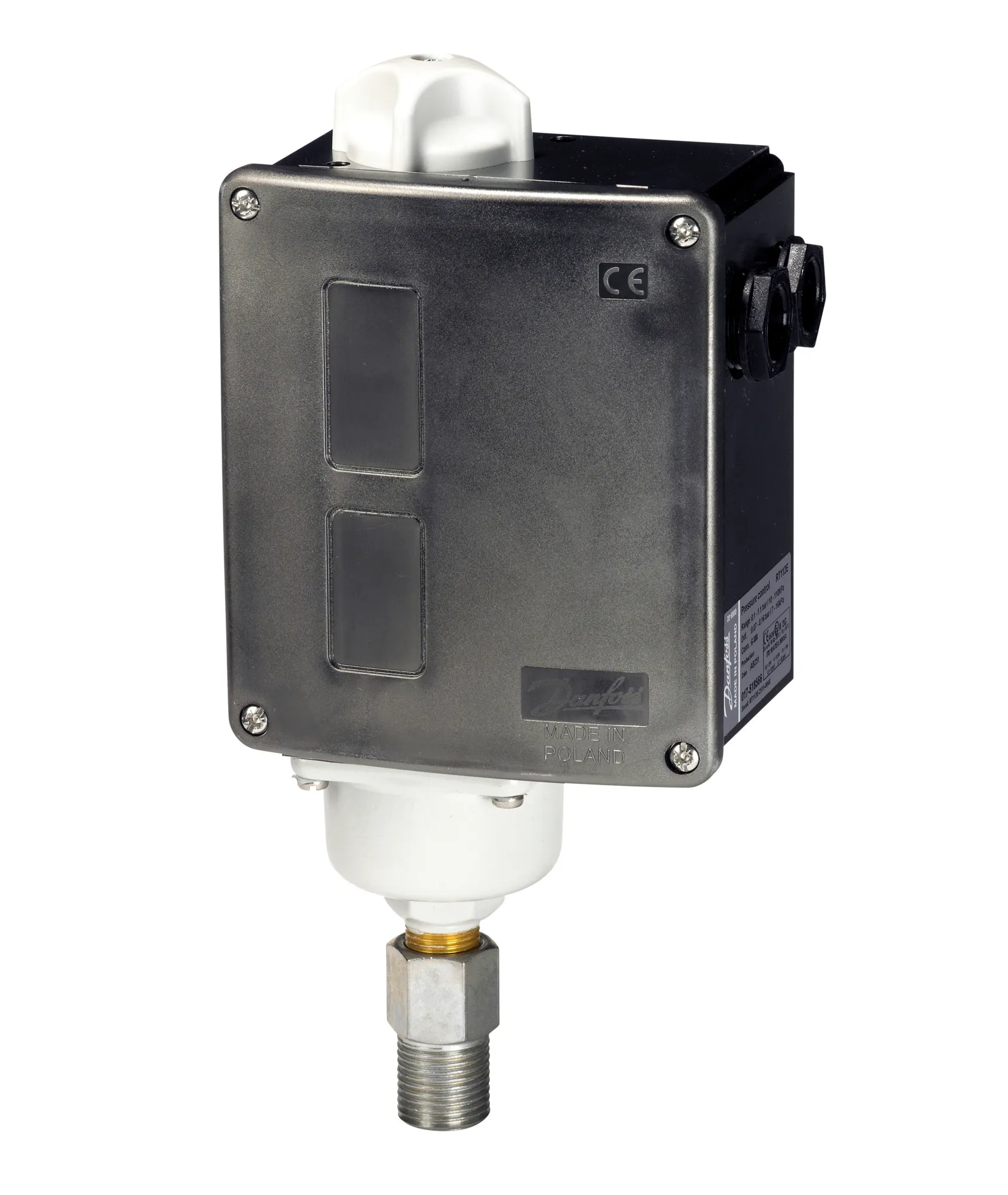

017-519566

Part Number: 017-519566
017-519566
Manufacturer
Danfoss
Part number
017-519566
Category

Product Information

Extended Description

017-519566 Danfoss: Regulation range [bar] Pe: 0.00 - 0.30, Differential [bar]: 0.01 - 0.05, Contact function: SPDT gold, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 0.4
Gross weight
1.143 Kilogram
Net weight
0.982 Kilogram
Volume
4.537 Liter
EAN
5702423245260
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 2 - Zone 1,CCC,CE,EAC,LLC CDC EURO-TYSK,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
Ci=0.5 nF,Ii=0.5 A,Li=0.2 uH,Pi=1 W,Ui=29 V
Contain batteries
No
Differential [bar] [max]
0.05 bar
Differential [bar] [min]
0.01 bar
Differential [psi] [max]
0.7 psi
Differential [psi] [min]
0.1 psi
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Out of scope
EX Sales text
-20Cta+65C,II 2G Ex ia IIC T6...T1 Gb
Max. test pressure [bar] Pe
0.5 bar
Max. test pressure [psig]
7 psig
Max. Working Pressure [bar]
0.4 bar
Max. Working Pressure [psig]
6 psig
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
0.3 bar
Regulation range [bar] Pe [min]
0 bar
Regulation range [psig] Pe [max]
4.4 psig
Regulation range [psig] Pe [min]
0 psig
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT113E
UK RoHS compliance
Out of scope
Pressure switch Differential pressure switch and Thermostat RT-E Pressure switch Type RT, Spare parts and accessories Pressure switch, RT 1AE, RT 6AEW, RT 6AEB, RT 6AES, RT 116E, RT 5E, RT 117E, RT 112E, RT 113E, RT 121E, RT 260AE, RT 262AE Danfoss EU 060-9657.AG DEMKO 14 ATEX 1406X Rev. 4 IECEx DK/ULD/QAR12.0002/11 IECEx ULD 14.0013X_04 UL21UKEX2021X Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB RINA ELE086320XG-005 DEMKO 12 ATEX Q1209493 Rev. 13 RT112E Pressure switch, G3/8, code 017-518566 RT-E pressure control RT113E Pressure switch RT113E Pressure switch
