017-522066

Part Number: 017-522066
017-522066
Manufacturer
Danfoss
Part number
017-522066
Category

Product Information

Extended Description

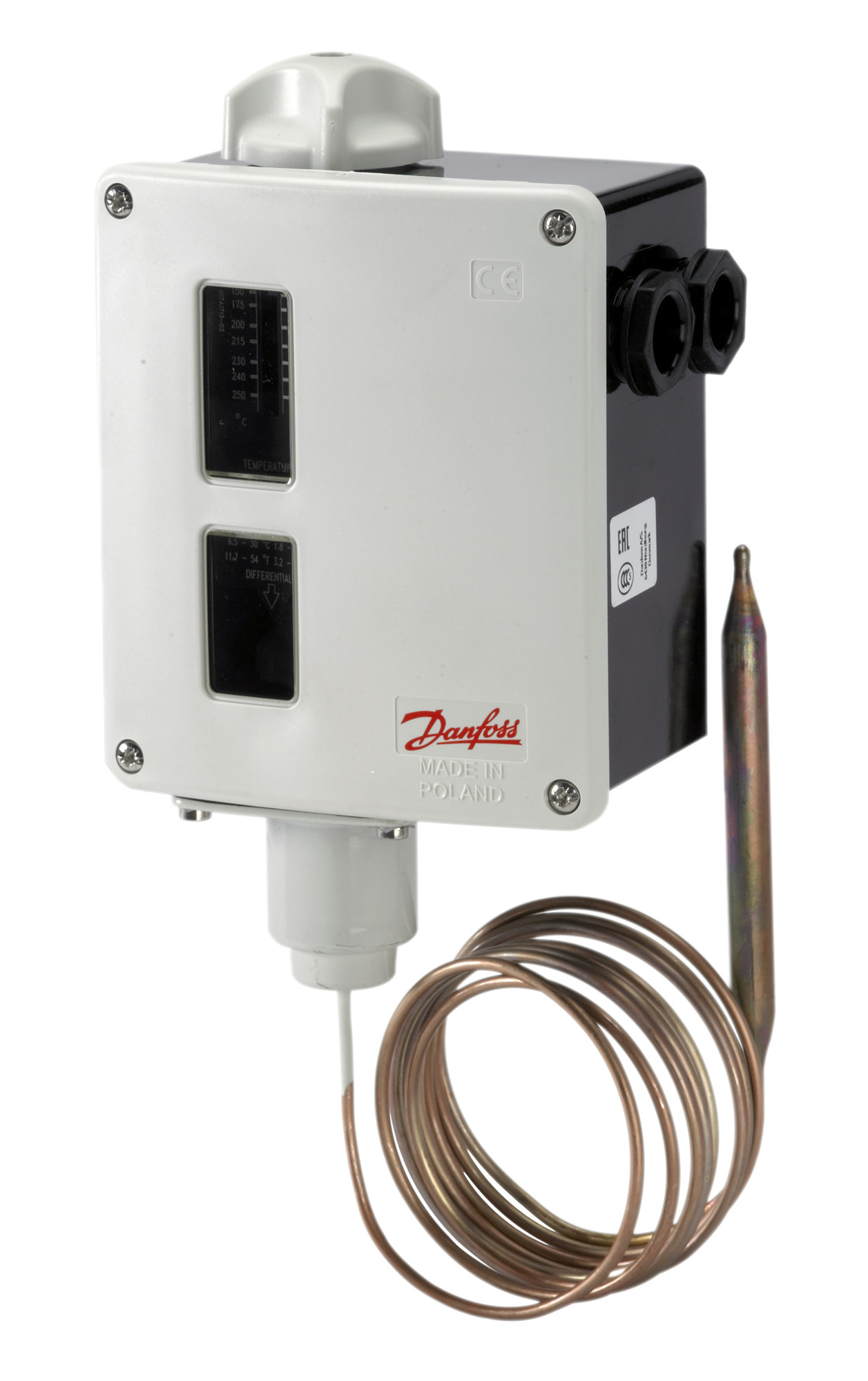

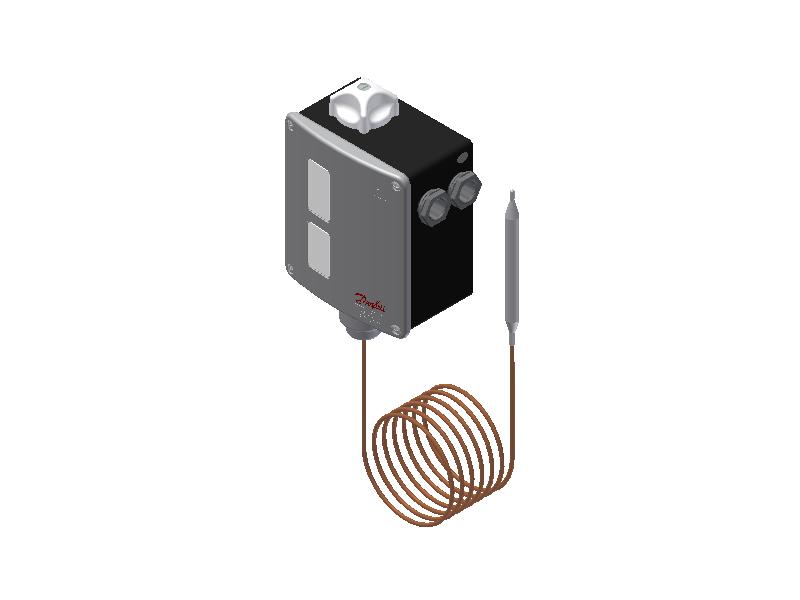

017-522066 Danfoss: Temperature range [°C]: 150 - 250, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP66
Gross weight
0.942 Kilogram
Net weight
0.83 Kilogram
Volume
2.685 Liter
EAN
5702423120802
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,NKK,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
78 3/4 in
Capillary tube length [mm]
2000 mm
CE evaluated
Yes
Charge type
Partial
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. @ Max. range setting[°C] [max]
9 °C
Diff. @ Max. range setting[°C] [min]
1.8 °C
Diff. @ Min. range setting[°C] [max]
30 °C
Diff. @ Min. range setting[°C] [min]
6.5 °C
Differential type
Adjustable
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
300 °C
Max. sensor temperature [°F]
572 °F
Other RoHS documentation
Saudi Arabia RoHS
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor pocket length min. [in]
4 13/32 in
Sensor pocket length min. [mm]
112 mm

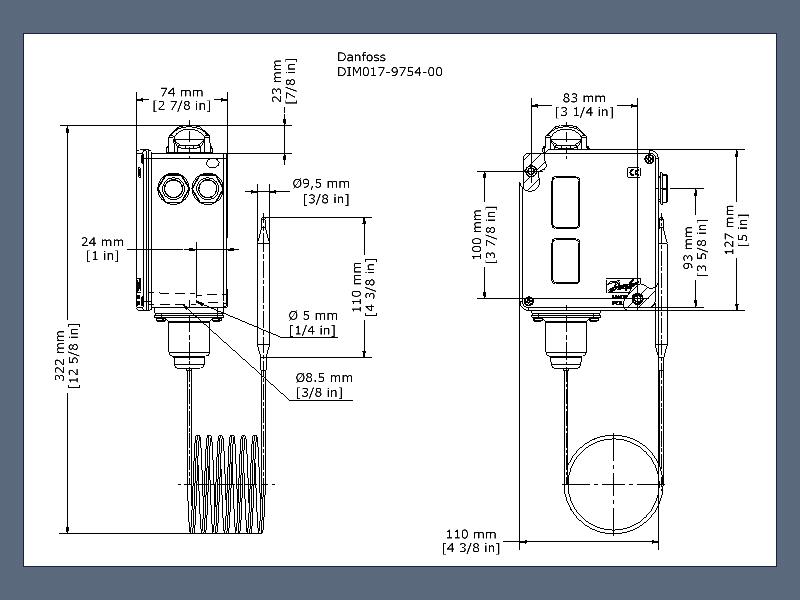

Sensor size (Ø x L) [in]
3/8 x 4 1/4 in
Sensor size (Ø x L) [mm]
9.5 x 110 mm
Sensor type
Remote bulb
Serviceable
Contact systems
Temperature range [°C] [max]
250 °C
Temperature range [°C] [min]
150 °C
Temperature range [°F] [max]
482 °F
Temperature range [°F] [min]
302 °F
Type
RT123
UK RoHS compliance
Yes
017-403066
Spare part, RT, SPDT switch
017-424066
Spare part, RT, SPDT switch, gold plated
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
017-422066
Generic accessories, Tube Gland For RT
017-425166
Switches accessories, Seal Screw For RT Cap/Cover
017-436066
Switches accessories, Protective Cap For RT
017-436166
Switches accessories, Cover With Pane For RT
017-436266
Switches accessories, Cover Without Pane For RT
017-436366
Switches accessories, Adjusting Knop For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
