017-523166

Part Number: 017-523166
017-523166
Manufacturer
Danfoss
Part number
017-523166
Category

Product Information

Extended Description

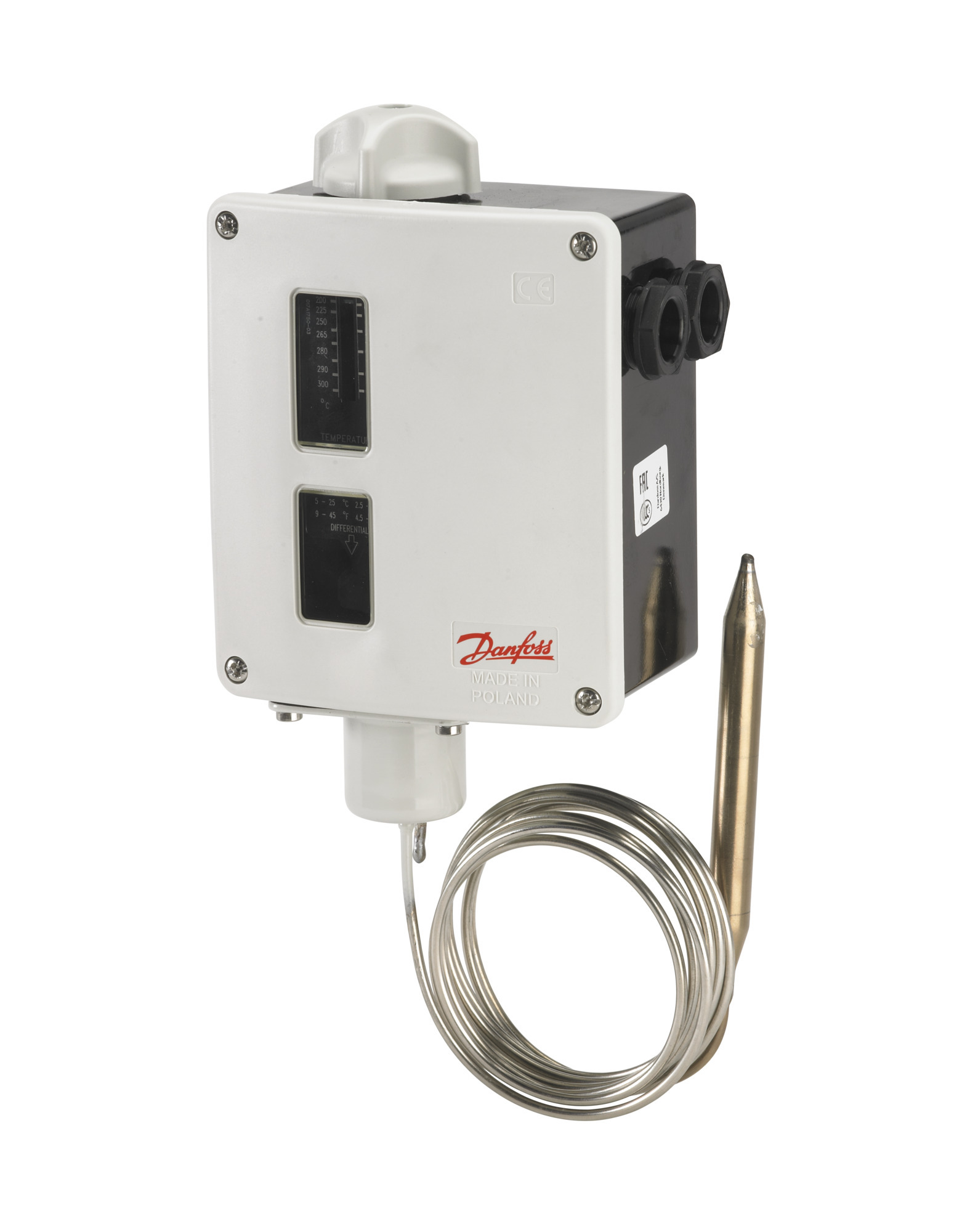

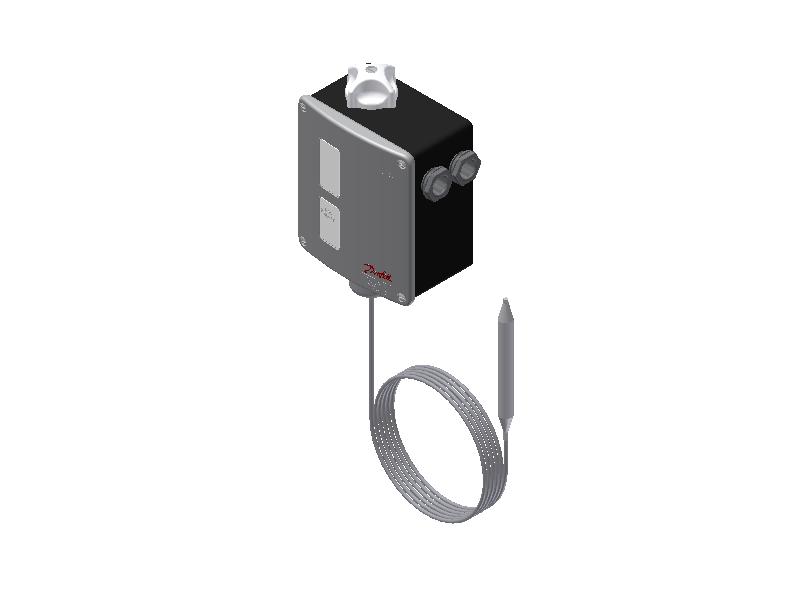

017-523166 Danfoss: Temperature range [°C]: 200 - 300, Reset function: Manual Max, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP54
Gross weight
0.922 Kilogram
Net weight
0.833 Kilogram
Volume
2.685 Liter
EAN
5702423120871
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,DNV,EAC,LLC CDC EURO-TYSK,LVD,NKK,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
78 3/4 in
Capillary tube length [mm]
2000 mm
CE evaluated
Yes
Charge type
Partial
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. @ Max. range setting[°C]
2.5 °C
Diff. @ Min. range setting[°C]
5 °C
Differential type
Fixed
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP54
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
350 °C
Max. sensor temperature [°F]
662 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Manual Max
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec

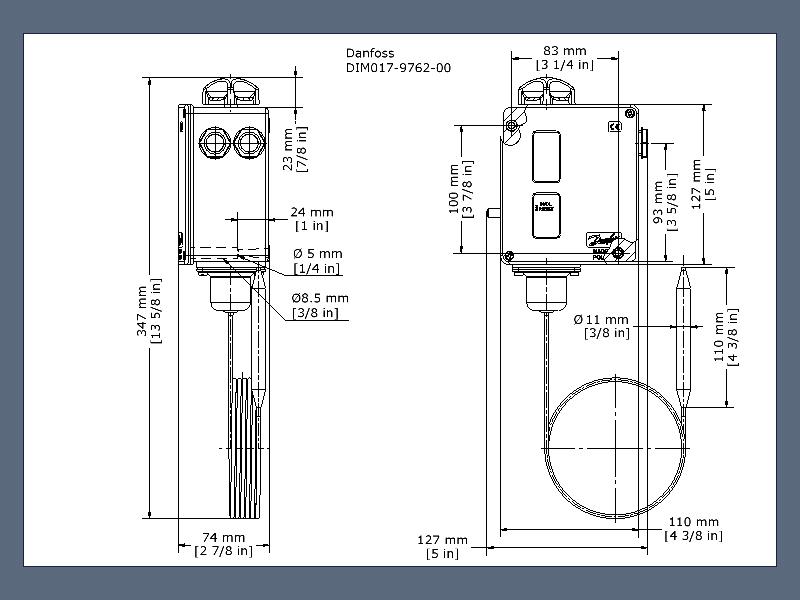

Sensor size (Ø x L) [in]
7/16 x 4 1/4 in
Sensor size (Ø x L) [mm]
11 x 110 mm
Sensor type
Remote bulb
Serviceable
Contact systems
Temperature range [°C] [max]
300 °C
Temperature range [°C] [min]
200 °C
Temperature range [°F] [max]
572 °F
Temperature range [°F] [min]
392 °F
Type
RT124
UK RoHS compliance
Yes
017-404266
Spare part, RT, SPDT switch
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
017-422066
Generic accessories, Tube Gland For RT
017-425166
Switches accessories, Seal Screw For RT Cap/Cover
017-436066
Switches accessories, Protective Cap For RT
017-436166
Switches accessories, Cover With Pane For RT
017-436266
Switches accessories, Cover Without Pane For RT
017-436366
Switches accessories, Adjusting Knop For RT
060L326366
Switches accessories, Sensor Pocket KP/RT 160mm G½"
060L326866
Switches accessories, Sensor Pocket CAS/KPS 110mm G½"
