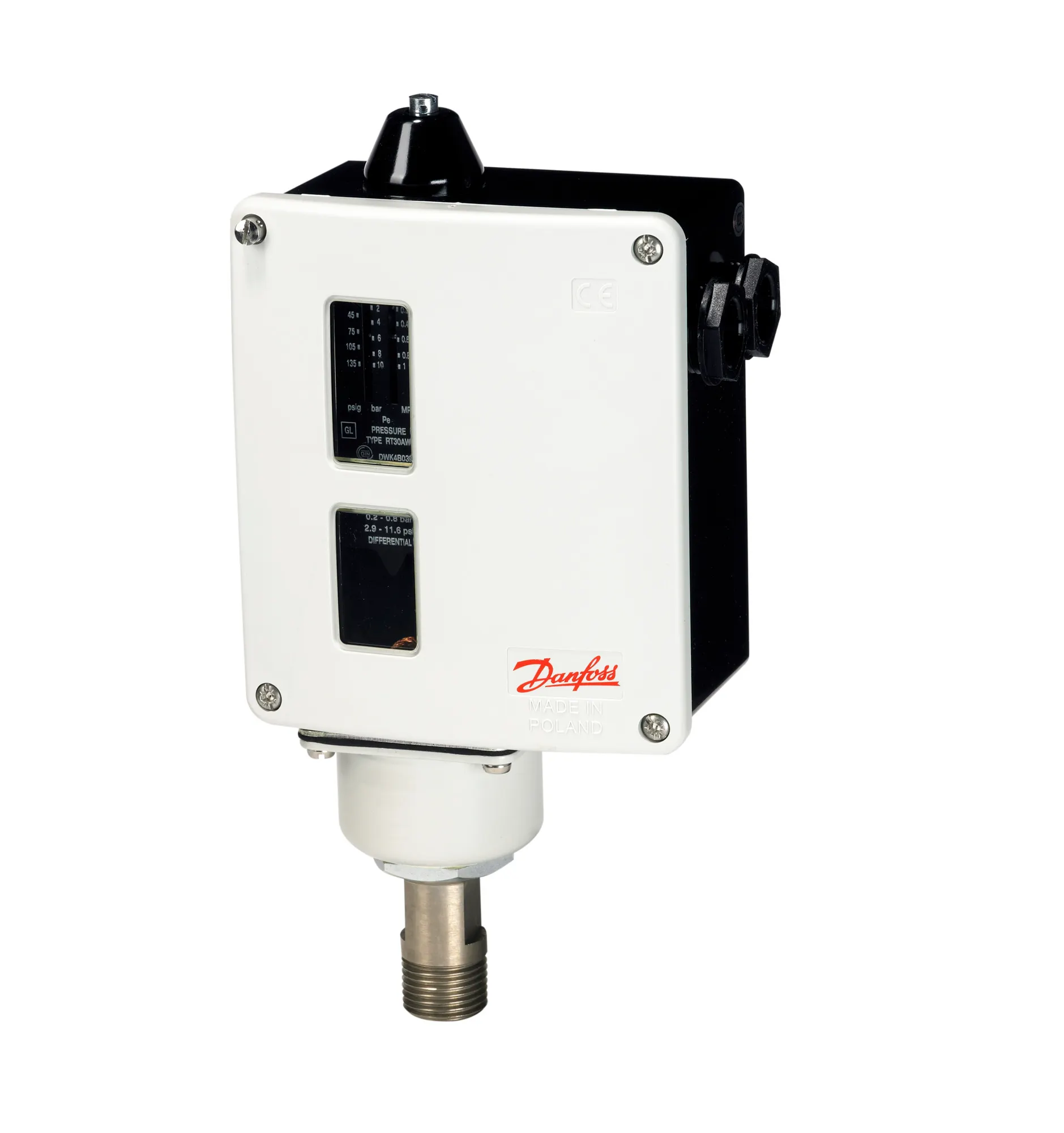

017-523866

Part Number: 017-523866
017-523866
Manufacturer
Danfoss
Part number
017-523866
Category

Product Information

Extended Description

017-523866 Danfoss: Regulation range [bar] Pe: 0.20 - 6.00, Differential [bar]: 0.25, Contact function: SPDT, Reset function: Manual Max, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP54, Max. Working Pressure [bar]: 22.0
Gross weight
0.98 Kilogram
Net weight
0.864 Kilogram
Volume
2.685 Liter
EAN
5702423120925
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
BV,CCC,CE,DNV,EAC,GL,KR,LLC CDC EURO-TYSK,LR,LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Differential [bar]
0.25 bar
Differential [psi]
3.6 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP54
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Max. test pressure [bar] Pe
25 bar
Max. test pressure [psig]
363 psig
Max. Working Pressure [bar]
22 bar
Max. Working Pressure [psig]
320 psig
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R507C
Regulation range [bar] Pe [max]
6 bar
Regulation range [bar] Pe [min]
0.2 bar
Regulation range [psig] Pe [max]
87 psig
Regulation range [psig] Pe [min]
2.9 psig
Reset function
Manual Max
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT200
UK RoHS compliance
Yes
UL approved refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R507C
Pressure switch Type RT Pressure switch Type RT, Spare parts and accessories Pressure switch, Differential pressure switch RT Pressure switch, types RT 5, RT 110, RT 112, RT 116, RT 117, RT 121, RT 200 Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB BV SMS.W.II-2179-C.0 BV 03407-I0 BV DNV TAA000015G Rev.1 KR HMB 17529-AE002 LR21397405TA Temperature Switches, RT1A, RT1AL, RT110, RT112, RT116, RT117, RT200, RT262A, RT262AE RT 117/RT 117L, RT 200/RT 200L dimensions RT pressure control housing dimensions RT200 Pressure switch RT200 Pressure switch
