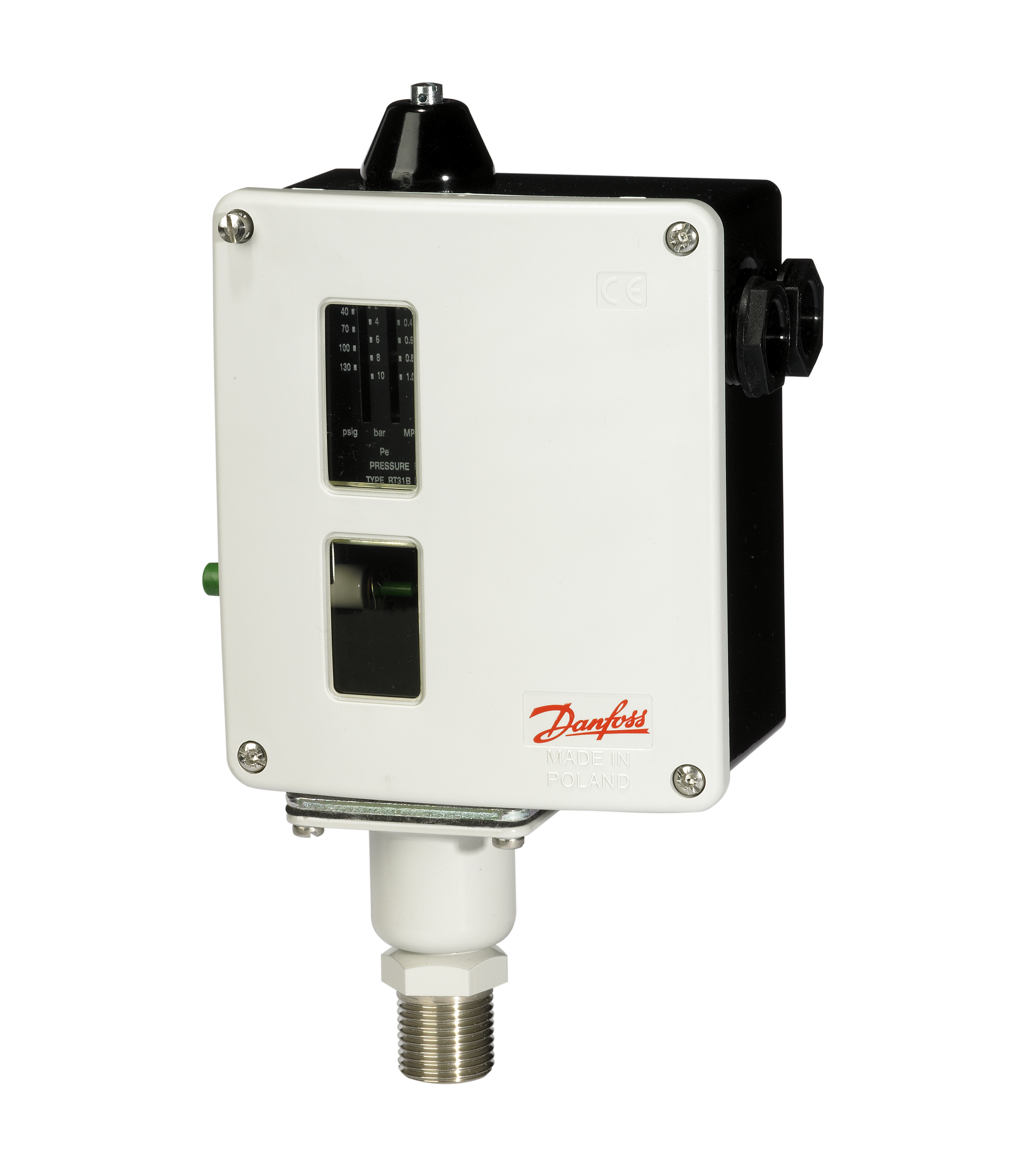

017-526766

Part Number: 017-526766
017-526766
Manufacturer
Danfoss
Part number
017-526766
Category

Product Information

Extended Description

017-526766 Danfoss: Regulation range [bar] Pe: 2.00 - 10.00, Differential [bar]: 0.30 - 1.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 22.0
Gross weight
0.984 Kilogram
Net weight
0.864 Kilogram
Volume
2.685 Liter
EAN
5702428042949
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PED,PZH,RMRS,RoHS,RoHS China,TYSK
Burst pressure [bar]
88 bar
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contact rating @ 250K cycles
AC15=1 A, 400 V,AC1=10 A, 400 V,AC3=2 A, 400 V,DC13=12 W, 220 V,LR=14 A, 400 V
Contain batteries
No
Differential [bar] [max]
1 bar
Differential [bar] [min]
0.3 bar
Differential [psi] [max]
14.5 psi
Differential [psi] [min]
4.4 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Out of scope
Fluid Group
1
In scope of WEEE
Yes
Max. test pressure [bar] Pe
25 bar
Max. test pressure [psig]
363 psig
Max. Working Pressure [bar]
22 bar
Max. Working Pressure [psig]
320 psig
Packing format
Multi pack
PED category
IV
Pressure connection size
1/2
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
10 bar
Regulation range [bar] Pe [min]
2 bar
Regulation range [psig] Pe [max]
145 psig
Regulation range [psig] Pe [min]
29 psig
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT31W
UK RoHS compliance
Out of scope
Pressure switch Type RT Pressure switch Type RT, Spare parts and accessories Pressure switch RT 19W, RT19B, RT19S, RT 30AW, RT 30AB, RT 30AS, RT 31W, RT 31B, RT 31S, RT 32W, RT 32B, RT 33B, RT 35W, RT 112W Danfoss CCC 2024010305641306 Danfoss EU 060-9658.AH Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB TÜV 01 202 969-B-21-0007 TÜV 0879-PESR-B(P)-21484-11-DE TÜV 0879-PESR-B(P)-21484-2-DE TÜV 0045 202 9120 Z 00468 22 D 000 00 Danfoss UK 060-9692.AC Pressure Switches, RT31W RT pressure control housing dimensions
