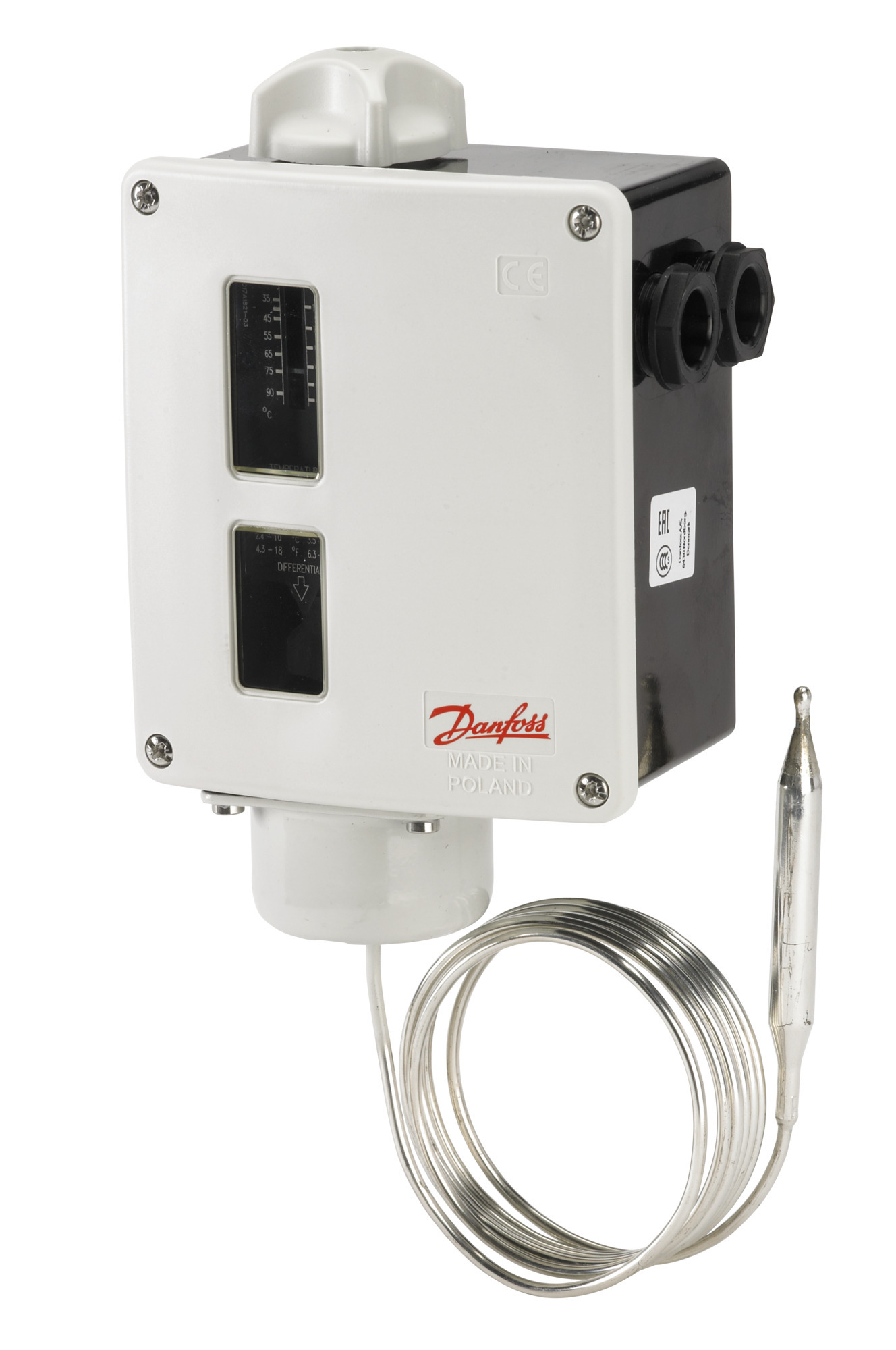

017-618066
Part Number: 017-618066
Product Information
Extended Description
017-618066 Danfoss: Temperature range [°C]: 25 - 90, Reset function: Auto, Contact function: SPDT gold, Sensor type: Remote bulb, Capillary tube length [mm]: 5000, Enclosure rating IP: IP66
Gross weight
1.275 Kilogram
Net weight
0.982 Kilogram
Volume
2.685 Liter
EAN
5702428986458
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 2 - Zone 1,CE,EAC,LLC CDC EURO-TYSK,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
196 7/8 in
Capillary tube length [mm]
5000 mm
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
Ci=0.5 nF,Ii=0.5 A,Li=0.2 uH,Pi=1 W,Ui=29 V
Contain batteries
No
Diff. @ Max. range setting[°C] [max]
20 °C
Diff. @ Max. range setting[°C] [min]
3.5 °C
Diff. @ Min. range setting[°C] [max]
10 °C
Diff. @ Min. range setting[°C] [min]
2.4 °C
Differential type
Adjustable
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Out of scope
EX Sales text
-20Cta+65C,II 2G Ex ia IIC T6...T1 Gb
Max. sensor temperature [°C]
300 °C
Max. sensor temperature [°F]
572 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor size (Ø x L) [in]
3/8 x 3 1/8 in
Sensor size (Ø x L) [mm]
9.5 x 80 mm
Sensor type
Remote bulb
Serviceable
Contact systems
Temperature range [°C] [max]
90 °C
Temperature range [°C] [min]
25 °C
Temperature range [°F] [max]
194 °F
Temperature range [°F] [min]
77 °F
Type
RT101E
UK RoHS compliance
Out of scope
017-403066
Spare part, RT, SPDT switch
017-424066
Spare part, RT, SPDT switch, gold plated
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
017-422066
Generic accessories, Tube Gland For RT
017-425166
Switches accessories, Seal Screw For RT Cap/Cover
017-436066
Switches accessories, Protective Cap For RT
017-436166
Switches accessories, Cover With Pane For RT
017-436266
Switches accessories, Cover Without Pane For RT
017-436366
Switches accessories, Adjusting Knop For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
Pressure switch Differential pressure switch and Thermostat RT-E
Thermostat RT 9E, RT 14E, RT 101E, RT 107E, RT 123E
Danfoss EU 060-9657.AG
DEMKO 14 ATEX 1406X Rev. 4
IECEx DK/ULD/QAR12.0002/11
IECEx ULD 14.0013X_04
UL21UKEX2021X
Pressure switches & Thermostats
Danfoss MD 017R9607.AC
Danfoss MD 060-9639.AB
DEMKO 12 ATEX Q1209493 Rev. 13
UL21UKQAN2258 Rev. 5
F017-_0020_RT_500366

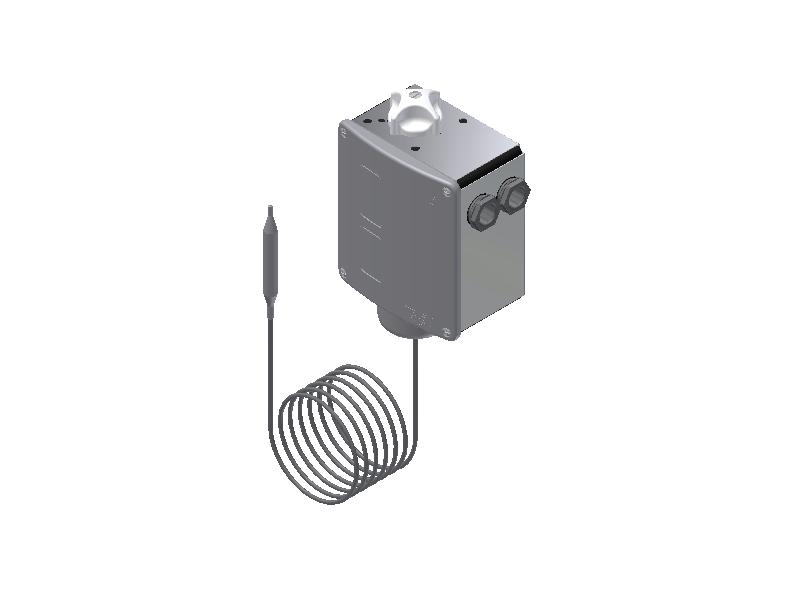

RT101E Thermostat
RT101E Thermostat
